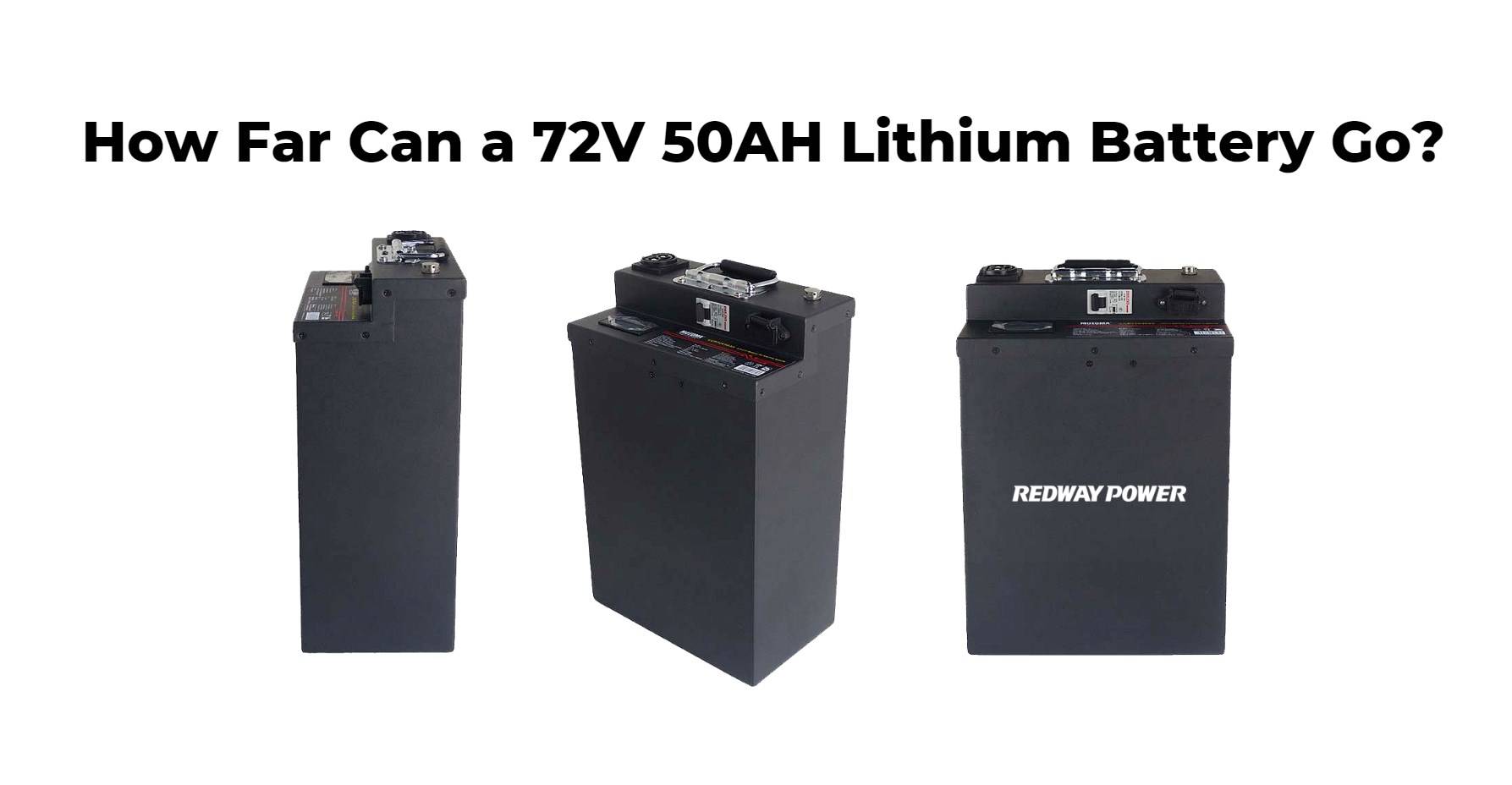

How Far Can a 72V 50AH Lithium Battery Go?

A 72V 50Ah lithium battery stores about 3.6kWh at 72V nominal or 3.84kWh if the pack is rated 76.8V. Range is not fixed: divide usable battery energy by the vehicle’s measured energy consumption in Wh per mile or Wh per kilometer. Terrain, speed, load, tire pressure, temperature and controller settings can change the result substantially.
Last updated:
How to calculate 72V 50Ah battery range
First calculate nominal energy: 72V × 50Ah = 3,600Wh. Then apply the manufacturer-approved usable depth of discharge and conversion efficiency.
Example assumptions: 90% usable energy and 90% drivetrain efficiency. Available energy at the wheels is 3,600 × 0.90 × 0.90 = 2,916Wh.
| Measured consumption | Estimated range from 2,916Wh |
|---|---|
| 40Wh/km | About 72.9km |
| 60Wh/km | About 48.6km |
| 80Wh/km | About 36.5km |
This is a planning model, not a guaranteed result. Replace the assumptions with the battery specification and consumption recorded on the actual route.
Why real range differs
- Higher speed raises aerodynamic losses.
- Hills, soft ground and heavy loads increase current.
- Cold reduces available capacity and increases voltage sag.
- Low tire pressure and mechanical drag waste energy.
- BMS and controller cutoffs may leave some nominal energy unused.
Victron’s published LFP data shows capacity changing with temperature and lists model-specific discharge-current limits, illustrating why a single distance claim cannot apply to every pack. See the manufacturer technical data.
How to get a useful range figure
- Start with a fully charged, balanced pack using the approved charger.
- Record distance and battery energy used over a representative route.
- Calculate Wh/km or Wh/mile.
- Repeat with the expected passenger/load and worst normal temperature.
- Keep a reserve rather than planning to the BMS cutoff.
For related voltage and capacity decisions, use the LiFePO4 sizing guide.
FAQ
How many kWh is a 72V 50Ah battery?
It is 3.6kWh at 72V nominal. A 76.8V 50Ah LiFePO4 pack is 3.84kWh nominal.
Does a larger motor always reduce range?
Not automatically, but higher power use, speed and acceleration usually increase Wh per mile when the extra capability is used.
Can voltage alone predict remaining distance?
Only roughly. A BMS energy reading and measured Wh per distance are more useful because voltage changes with load and temperature.
