12V 30Ah Lithium Battery factory oem manufacturer top 1
Watch video
Click to enlarge
12V 30Ah Lithium Battery factory oem manufacturer top 1
Home 12V LiFePO4 Batteries 12V 30Ah Lithium Battery
36V 100Ah Lithium Battery factory oem
36V 100Ah Lithium Battery $1.00
Back to products
12V 50Ah Lithium Battery factory oem manufacturer top 1
12V 50Ah Lithium Battery $1.00

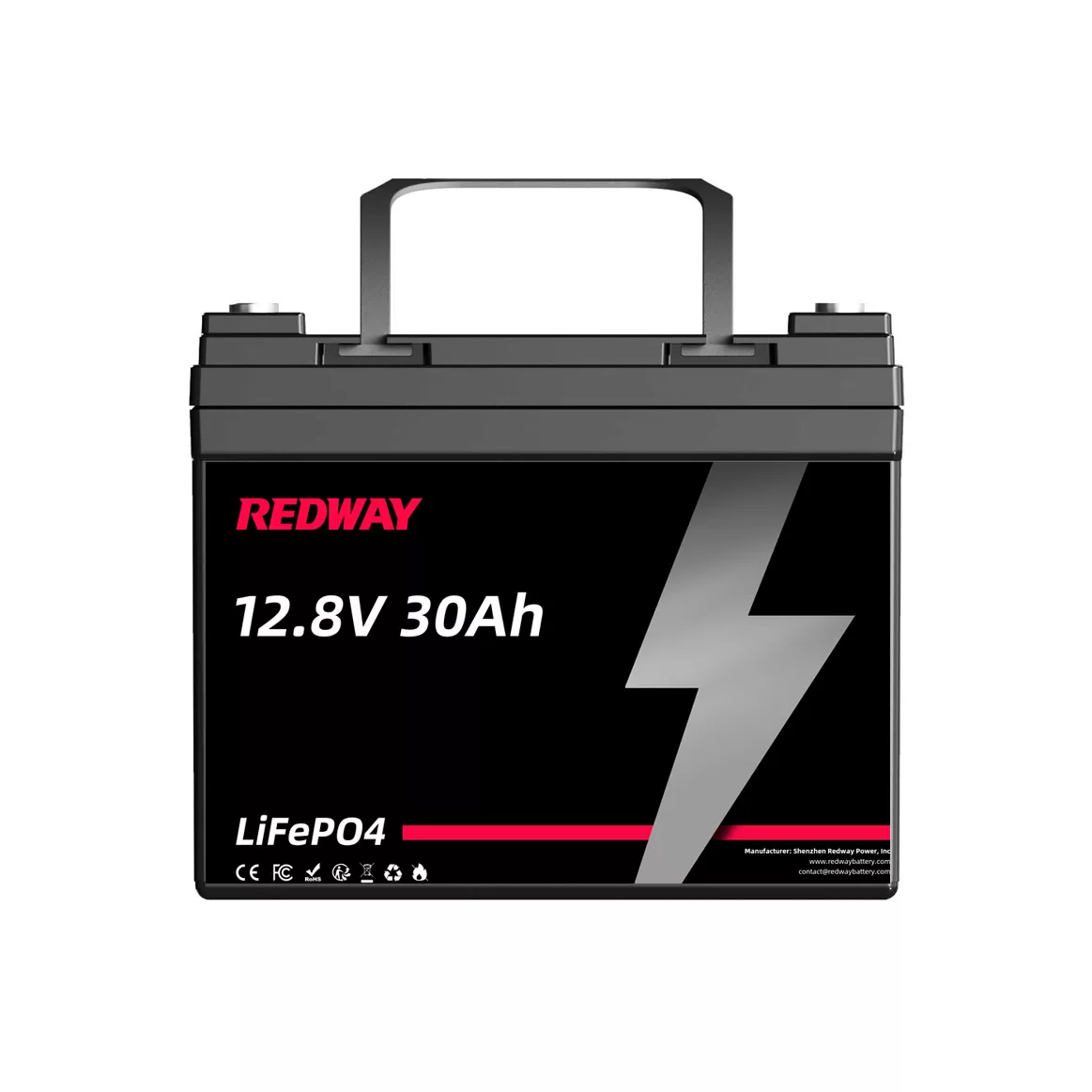

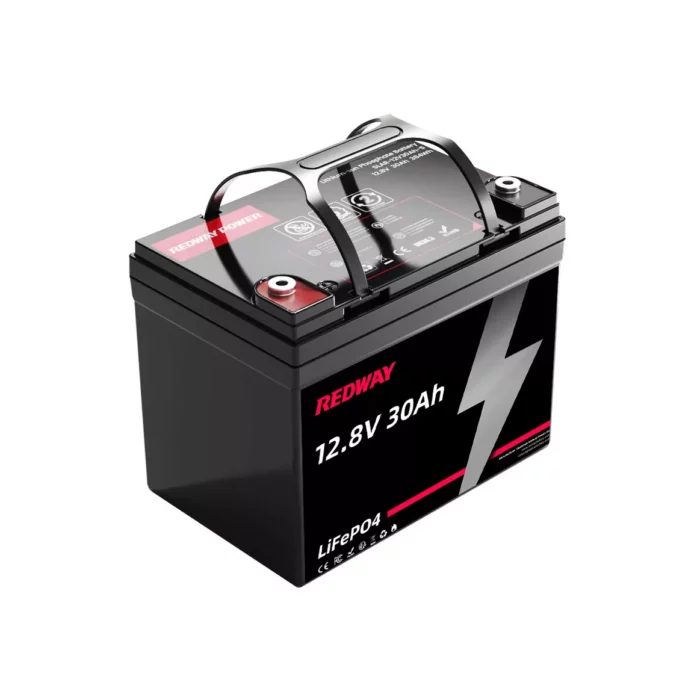

12V 30Ah Lithium Battery

$1.00

• Cell: LiFePO4
• MOQ: 5
• Redway Factory Daily Production Capacity: 2000 PCS
• Customizable / OEM / ODM: Yes
• Factory: Redway Huizhou
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Category: 12V LiFePO4 Batteries Tags: 12v battery, 12v lifepo4 battery, 12v lithium ion battery, 12v rechargeable battery, small 12v battery
Share:
  • Description
  • SPECS
  • FAQs
Description

The 12V 30Ah LiFePO4 battery is engineered for superior performance and durability in a variety of applications. Featuring cutting-edge Lithium Iron Phosphate (LiFePO4) technology, this battery offers a nominal voltage of 12.8V and a substantial capacity of 30Ah, making it an excellent choice for powering RVs, marine vessels, off-grid systems, and backup power supplies. With a compact design of 195 x 130 x 161 mm and a lightweight build of just 3 kg, it delivers robust energy storage without compromising on space or weight.

This battery is equipped with a sophisticated Battery Management System (BMS) that ensures optimal safety and longevity. It provides comprehensive protection against overcharge, over-discharge, short circuits, and extreme temperatures. Boasting a cycle life exceeding 6,000 cycles at 80% Depth of Discharge (DOD) and up to 15,000 cycles at 60% DOD, it offers outstanding reliability and efficiency. Whether for recreational, industrial, or backup power applications, the 12V 30Ah LiFePO4 battery is designed to meet the highest standards of performance and safety.

Top 5 Selling Points

  1. Exceptional Longevity: Over 6,000 cycles at 80% DOD and up to 15,000 cycles at 60% DOD ensure long-lasting performance and value.
  2. Advanced BMS Protection: Comprehensive safety features including overcharge, over-discharge, and short-circuit protection.
  3. Versatile Applications: Ideal for RVs, marine vessels, off-grid systems, backup power, and more.

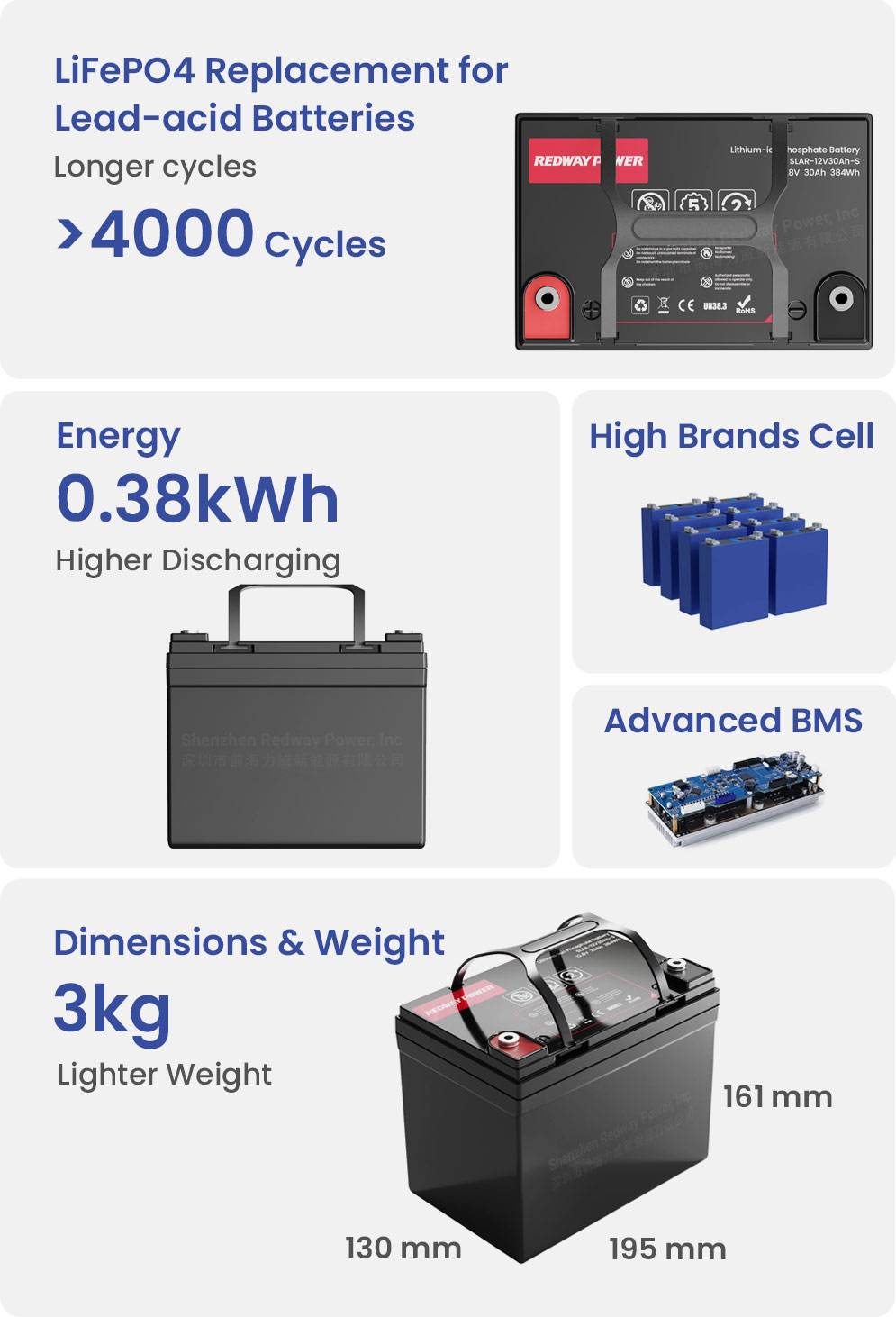

  4. Compact and Lightweight: With dimensions of 195 x 130 x 161 mm and a weight of only 3 kg, it is easy to install and handle.
  5. High Efficiency: Low self-discharge rate of <2% per month and high energy density of 384 Wh for reliable power delivery.

Contact Now

For B2B, wholesale, or OEM inquiries, please reach out to us directly. Our team is ready to provide you with detailed information, competitive pricing, and tailored solutions to meet your business needs.

Contact Us Now to discuss how our 12V 30Ah LiFePO4 battery can benefit your operations.

SPECS
Applications UPS / Power Wheels / Backup Power Supply / Emergency Power Supply / Electric Toys / Fish Finder / etc.
Lithium Cell LiFePO4 (LFP) / Cylindrical Cell
Nominal Voltage 12.8V
Nominal Capacity 30Ah
Nominal Energy 384 Wh
Dimensions [L x W x H] 195 x 130 x 161 mm
7.7 x 5.1 x 6.3 inches
Weight 3 kg
6.6 lbs
Max Charge Voltage 14.6V
Cut-off Discharge Voltage 10V
Max Continuous Charge Current 30A
Max Continuous Discharge Current 30A
Peak Discharge Current -
Charge Temperature 0°C ~ 60°C
Discharge Temperature -20°C ~ 65°C
Max Series Connections 4
Max Parallel Connections 6
Cycle Life >4,000 Cycles (80% DOD 0.5C)
Self-discharg <2% per month
IP Rating IP65
Battery Shell ABS Plastic
BMS Over Current, Over Charge, Over Discharge, Overload, Over Voltage, Low Voltage, Short Circuit, Over Temperature, Low Temperature, etc.
Optional Upgrades Bluetooth / APP / SOC LCD Display / Power Switch / etc.
Terminals M6 / F8
Charger 14.6V 6A
User Manual Yes
Silkscreen / Label / Laser Yes
Certifications UN38.3 / MSDS / CE / IEC 62133
FAQs

What is the nominal voltage of the 12V 30Ah LiFePO4 battery?

The nominal voltage is 12.8V.

What is the maximum continuous charge current for this battery?

The maximum continuous charge current is 30A.

Can the 12V 30Ah LiFePO4 battery be used in marine applications?

Yes, it is suitable for marine vessels, including fishing boats and yachts.

What is the cycle life of this battery?

The battery offers over 6,000 cycles at 80% Depth of Discharge (DOD) and over 15,000 cycles at 60% DOD.

What is the maximum discharge current this battery can handle?

The maximum continuous discharge current is 30A, with a peak discharge current of 40A for 10 seconds.

What is the battery's IP rating?

The battery has an IP65 rating, which means it is dust-tight and protected against water jets.

What are the operating temperature ranges for charging and discharging?

The charging temperature range is 0°C to 60°C, while the discharging range is -20°C to 65°C.

Does this battery come with a warranty?

Yes, it comes with a 3-year warranty.

What kind of Battery Management System (BMS) does the battery use?

It uses an advanced BMS with protections against overcurrent, overcharge, over-discharge, overload, overvoltage, low voltage, short circuit, over-temperature, and low temperature.

Can the 12V 30Ah LiFePO4 battery be connected in series or parallel?

Yes, it can be connected in series (up to 4 batteries) and in parallel (up to 4 batteries) to increase voltage or capacity as needed.
