Redway Battery offers a full range of lithium batteries in BCI Group 24, Group 27, Group 31, Group 34, Group 35, Group 51, Group 51R, Group 78, Group 8D dimensions, etc. We are a professional lithium battery factory. We undertake OEM/ODM production of lithium battery, please Contact us.

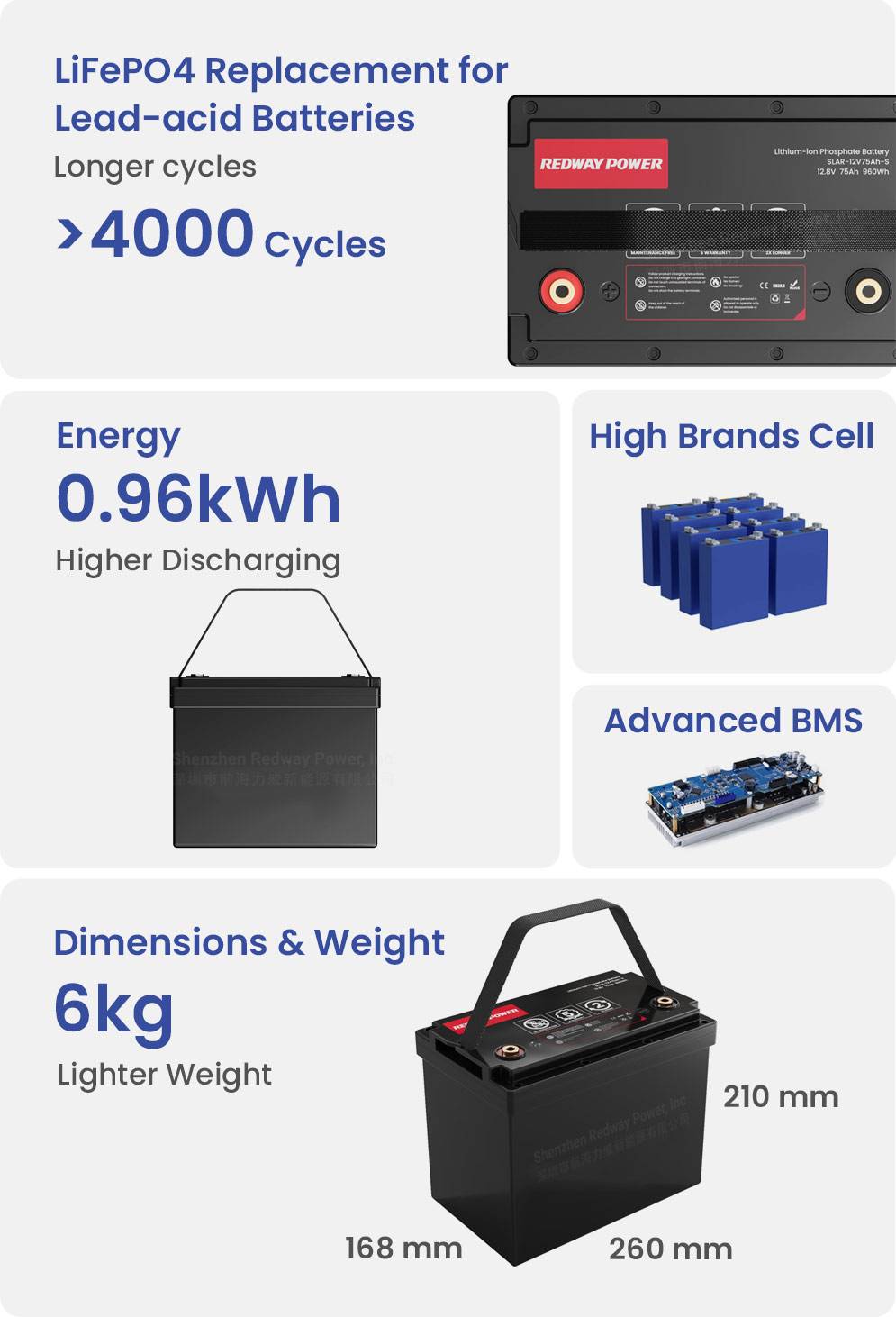

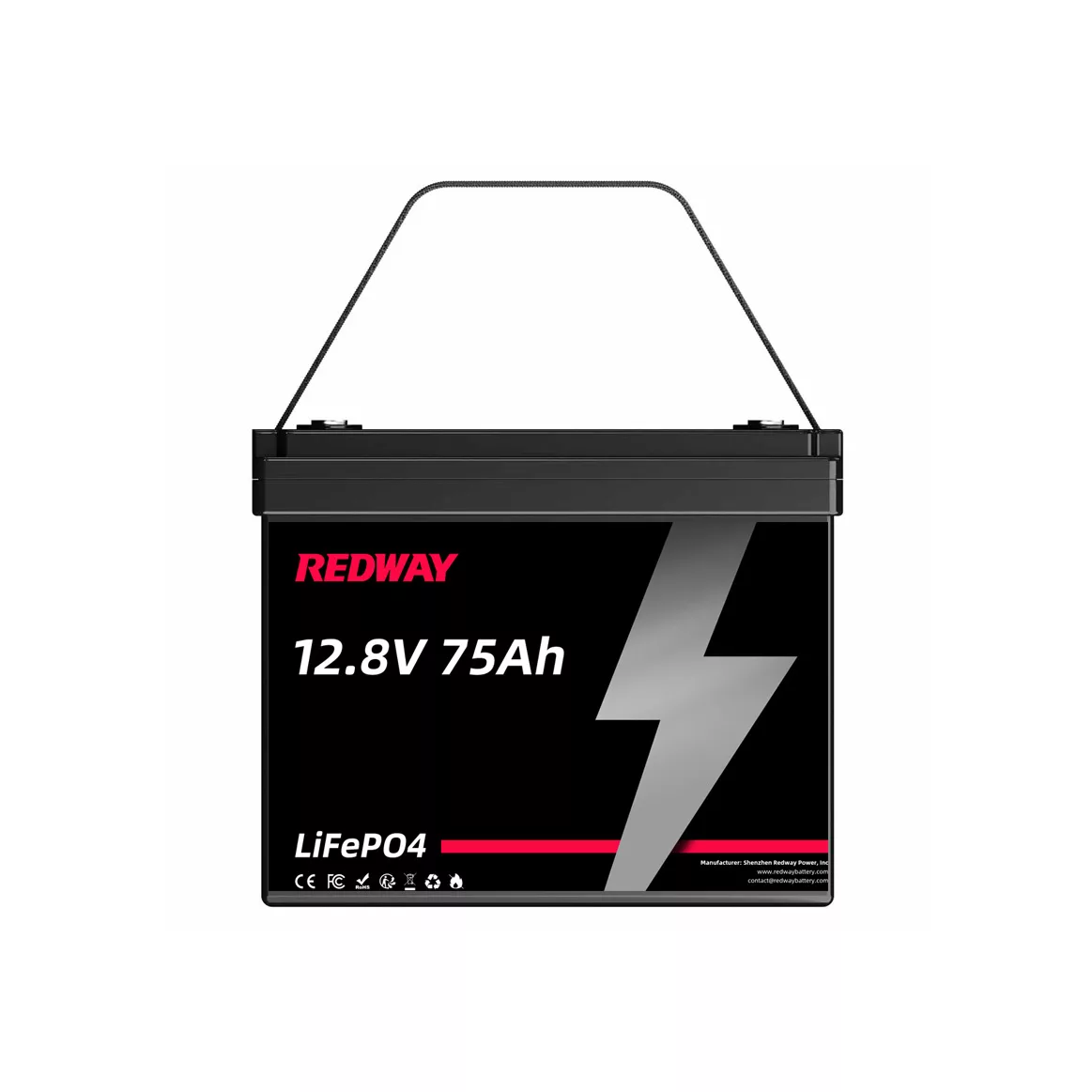

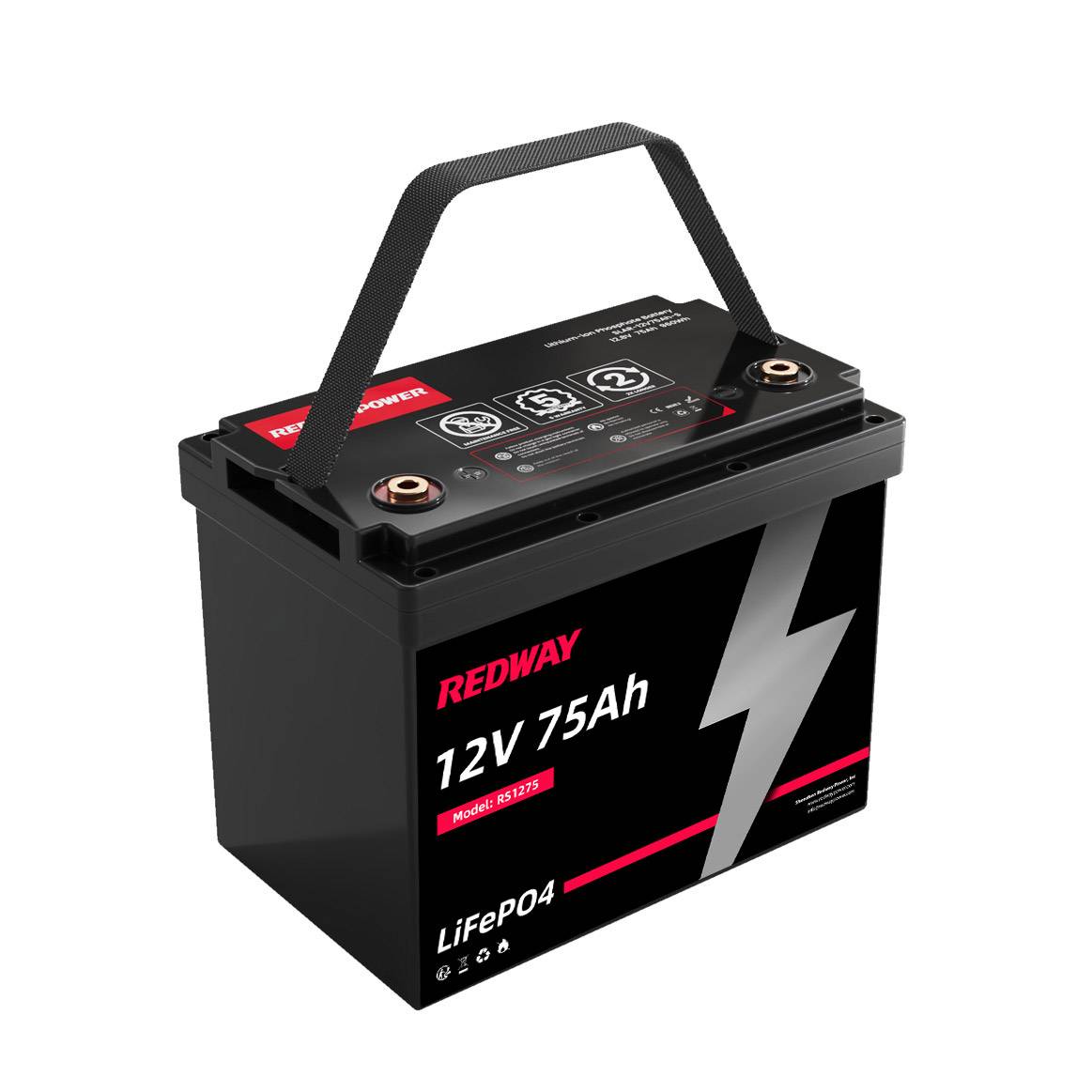

| 12V75Ah | Specifications |
|---|---|
| Cell Type | LiFePO4 |
| Nominal Voltage | 12.8V |
| Nominal Capacity | 75Ah |
| Nominal Energy | 0.96kWh |
| Charge Voltage | 14.6V |
| Discharge Voltage | 10V |
| Max. Continues Charge Current | 75A |
| Max. Continues Discharge Current | 75A |
| Dimensions [L x W x H] |
260 x 168 x 210 mm 10.23*6.61*8.26 in |
| Weight | 6 kg 13.22 lb |
| IP Rating | IP65 / (More request) |
| Series & Parallel | 4S5P |
| Max. Battery Parallel | 4P to 3.84kWh (More request) |
| Internal Resistance | ≤30mΩ |
| Cycle Life | >4000 cycles |
| Self-Discharge | 3% (Per month) |
| Charge Temperature | 0°C ~ 60°C 32°F ~ 140°F |
| Discharge Temperature | -20°C ~ 65°C -4°F ~ 149°F |
| Optional Functions | Bluetooth / WiFi / LCD / LED Touch Screen / RS485 / RS232 / CAN / 4G, 5G / GPS / APP |
| Charger | High current fast charger |
| BMS | Intelligent BMS protection |
| Terminal | M8 Bolts |
| Battery Case | ABS (Fireproof plastic) |
| Warranty | 3 Years |
| Silk-Screen / Label Printing | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipment | Yes |
| Manufacturer of Redway Factories | Dongguan ✔ Sichuan Hebei Hunan |
| Certifications | UL, FCC, IEC, CE, RoSH, UN38.3, MSDS / (More request) |
