CATL / EVE / BYD / Samsung SDI / Gotion / SVOLT / LISHEN / REPT / ANC
Nominal Voltage
51.2V
Nominal Capacity
160Ah
Nominal Energy
8192 Wh (8.19 KWh)
Full Charge Driving Range
97 ~ 113 km
60 ~ 70 miles
Dimensions [L x W x H]
800 x 332 x 332 mm
31.5 x 13 x 13 inches
Weight
72 kg
158.7 lb
Max Charge Voltage
58.4V
Max Cut-off Discharge Voltage
40V
Standard Charge Current
22A (Fully charged in 7.5 hours)
Max Continuous Charge Current
100A
Max Continuous Discharge Current
100A
Peak Discharge Current
200A (10s)
Internal Resistance
<10 mΩ
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 65°C
Max Series Connection
-
Max Parallel Connection
4
Cycle Life
>6,000 Cycles (80% DOD)
>15,000 cycles (60% DOD)
Self-Discharg
<2% per month
IP Rating
IP67
Usage Locations
Golf Carts, Club Car, Sightseeing Car, LSV Car, 2 Wheels / 3 Wheels / 4 Wheels Electric Scooter, Electric Trishaw, Electric Rickshaw, Electric Motorcycle, Electric Tricycle, Cabin Car, Electric Cargo Tricycle, Cargo Express Cargo Car, AGV, AMR, LGV (Laser Guided Vehicle), Floor Scrubber, Floor Clean Machine, Floor Polisher, Robot, etc.
Battery Shell
Metal
BMS Protection
JBD / DALY / DAREN / Advanced Smart BMS:
Cell Automatic Balance, Over Current, Over Charge, Over Discharge, Overload, Over Voltage, Low Voltage, Short Circuit, Over Temperature, Low Temperature, etc.
Optional Upgrades
Self-Heating, Fast Charger, Bluetooth, APP, WiFi, 4G, GPS, RS485, RS232, CAN-bus, Modbus, TCP/IP, Active Balance, LCD Screen, Solar Panel, Solar Controllers, MPPT, Inverters, LED Indicator Light, TACP, Fan, Heatsink, Circuit Breaker, Anti-Theft, etc.
Vent
Yes
Power Switch
Yes

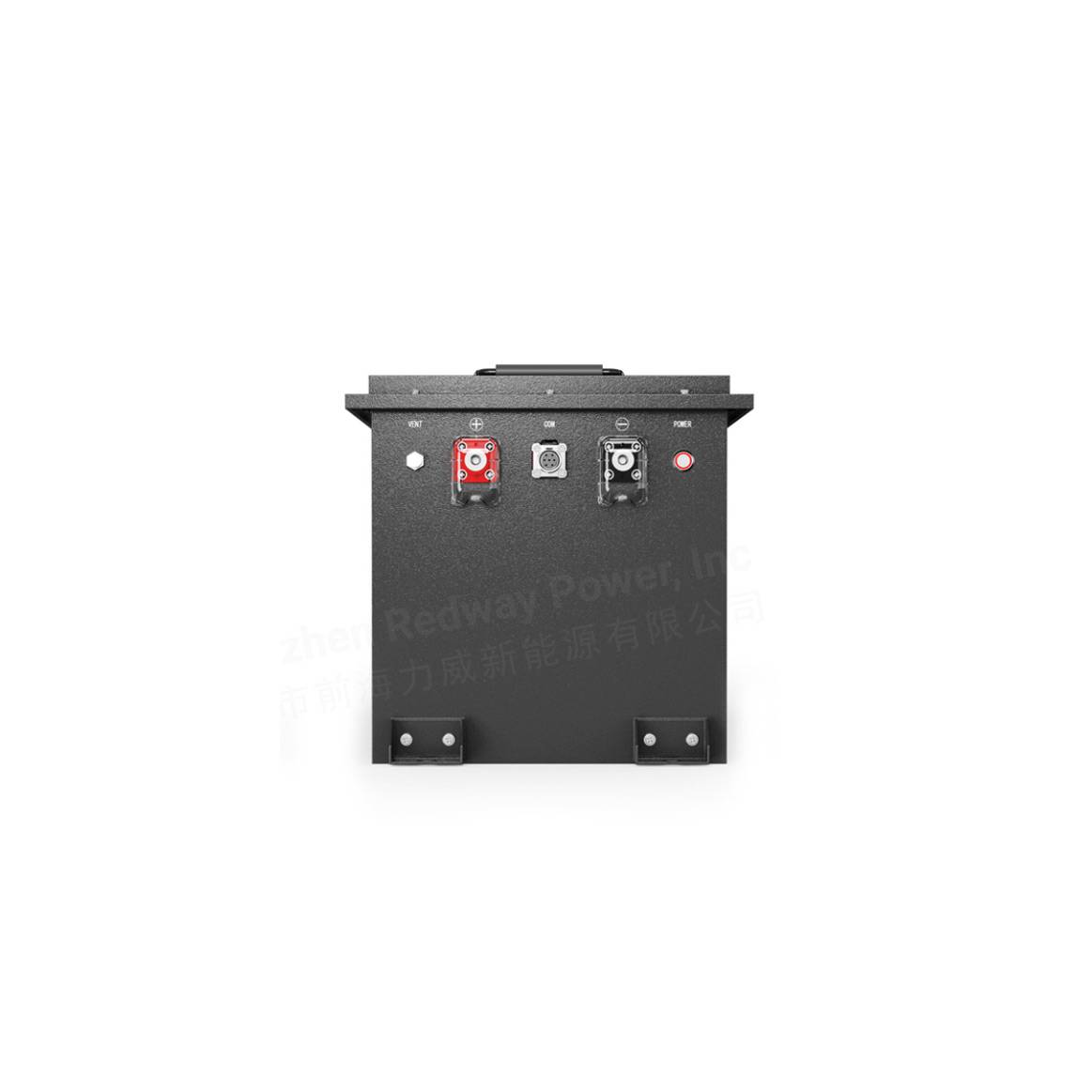

Terminals
M8
Communication Interface
Aviation Connector Socket
Charger (Optional)
Anderson Connector (Optional)
Aviation Connector (Optional)
Bluetooth APP Demo (Android / iOS)
Design Life
10 Years
Warranty
5 Years
User Manual
Yes
Silkscreen
Yes
Label Design / Printing
Yes
Laser Logo
Yes
Certifications
UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)
