Redway Battery offers a full range of lithium batteries in BCI Group 24, Group 27, Group 31, Group 34, Group 35, Group 51, Group 51R, Group 78, Group 8D dimensions, etc. We are a professional lithium battery factory. We undertake OEM/ODM production of lithium battery, please Contact us.

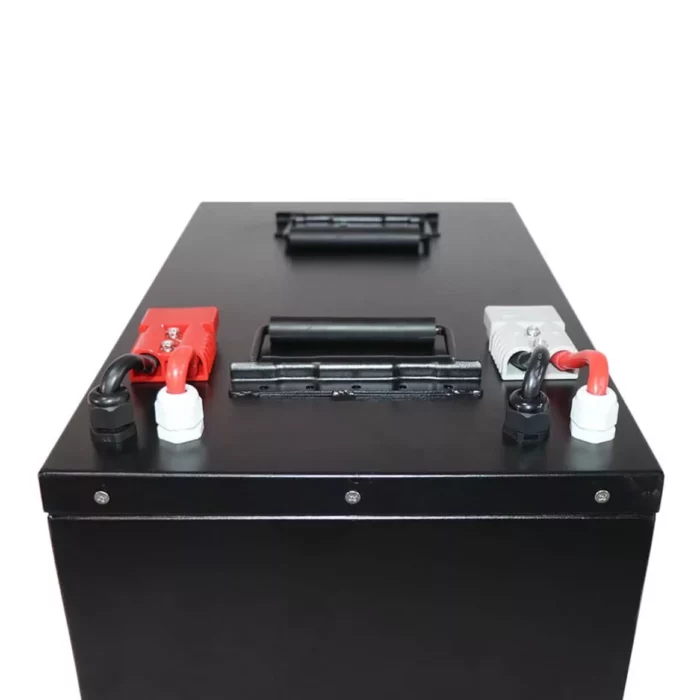

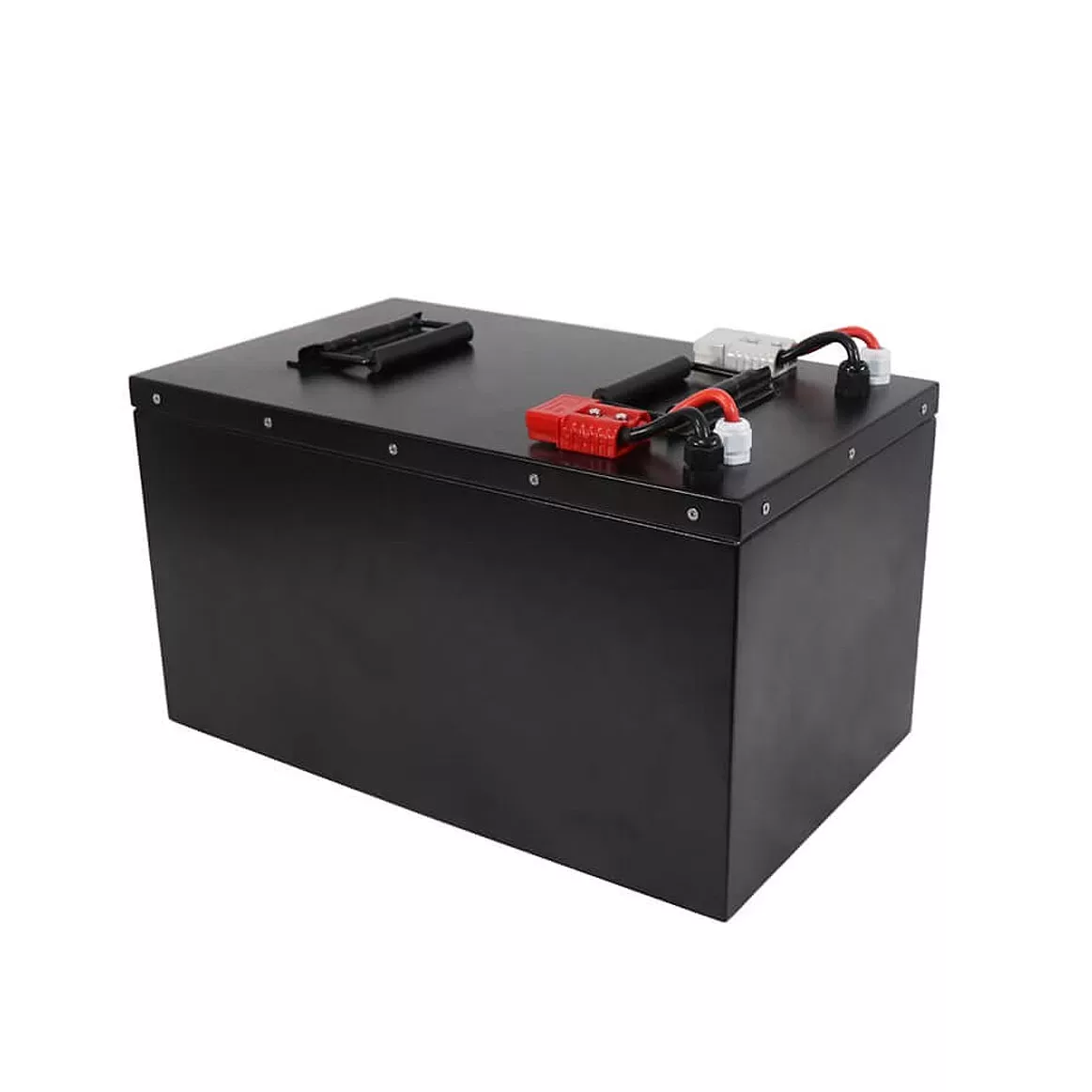

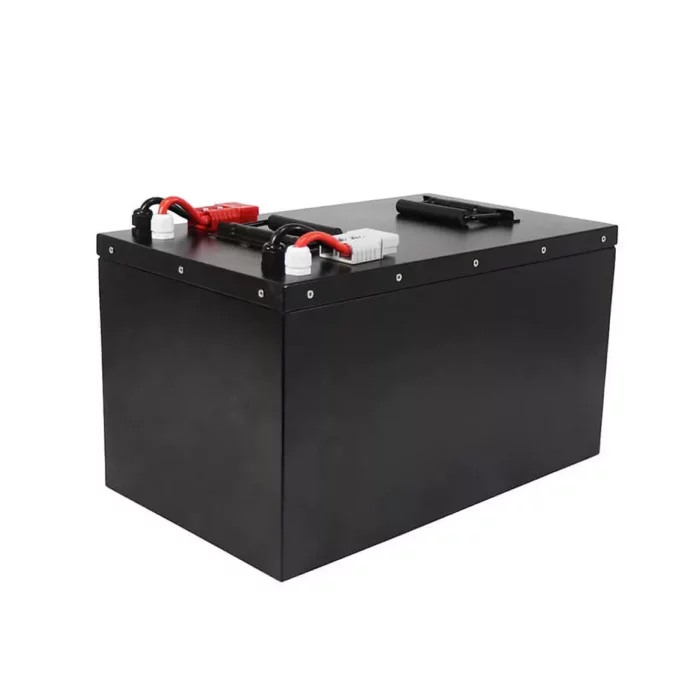

| 60V100Ah | Specifications |
|---|---|
| Cell Type | LiFePO4 |
| Nominal Voltage | 60.8V |
| Nominal Capacity | 100Ah |
| Nominal Energy | 6kWh |
| Charge Voltage | 69.3V |
| Discharge Voltage | 47.5V |
| Max. Continues Charge Current | 100A |
| Max. Continues Discharge Current | 100A |
| Max. Instantaneous Discharge Current | 200A (3S) |
| Dimensions [L x W x H] |
500 x 298 x 349 mm 19.7 x 11.7 x 13.7 in |
| Weight | 63 kg 138.9 lb |
| IP Rating | IP65 / (More request) |
| Max. Battery Parallel | 4P to 24.3kWh (More request) |
| Internal Resistance | ≤30mΩ |
| Cycle Life | >4000 cycles |
| Self-Discharge | 3% (Per month) |
| Charge Temperature | 0°C ~ 60°C 32°F ~ 140°F |
| Discharge Temperature | -20°C ~ 65°C -4°F ~ 149°F |
| Optional Functions | Bluetooth / WiFi / LCD / LED Touch Screen / RS485 / RS232 / CAN / 4G, 5G / GPS / APP |
| Charger | High current fast charger |
| BMS | Intelligent BMS protection |
| Battery Case | Metal |
| Warranty | 3 Years |
| Silk-Screen / Label Printing | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipment | Yes |
| Manufacturer of Redway Factories | Dongguan ✔ Sichuan Hebei Hunan |
| Certifications | UL, FCC, IEC, CE, RoSH, UN38.3, MSDS / (More request) |
