How do 21700 cells differ from 18650 cells for pack builders?

Direct answer: The numbers describe size: an 18650 is about 18 mm in diameter and 65 mm long, a 21700 about 21 mm by 70 mm, giving roughly 45 to 50% more volume per cell. In practice that means more capacity per cell, so fewer cells and welds for the same pack, but a larger, heavier cell with a longer heat path. Whether to switch depends on the space available, the current per cell and the cell’s datasheet, not on the format alone.

What changes in a pack. Series count is set by voltage and does not change; parallel count drops because each 21700 holds more charge. A pack that needed 4 parallel 18650 cells might need 3 parallel 21700 cells, though the exact figure comes from the chosen cells’ capacity. Fewer cells means fewer spot welds, fewer holders and fewer failure points, but each parallel group carries more current per cell.

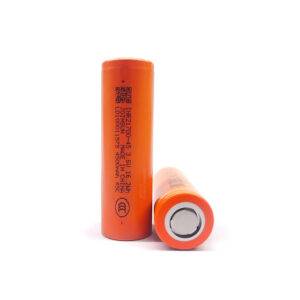

What the 21700 list shows. Redway’s 21700 Li-ion cell page lists INR21700-40T (4,000 mAh, 10C continuous, 15C peak) for drones and power tools; INR21700-40MF (4,000 mAh, 3C/5C) and INR21700-48D (4,800 mAh, 3C/5C) for scooters and e-motorcycles; INR21700-33M (3,300 mAh, 5C/8C) for power tools; and INR21700-45P (4,500 mAh, 3C/5C, fast charging) for power banks. These show the usual trade-off: high-rate cells give up capacity.

Chemistry. INR cells are nickel-based lithium-ion cells with a nominal voltage around 3.6 to 3.7V, unlike LiFePO4 cells at 3.2V, so series counts differ from LiFePO4 packs. Use the cell datasheet for charge voltage, cut-off and temperature limits.

Thermal and mechanical design. A larger diameter means heat from the cell core takes longer to reach the surface, so high continuous current needs care with spacing, cooling paths and holder material. Busbars or nickel strip must carry the higher current per cell. Vibration mounting and cell-to-cell insulation follow the same rules as for 18650 packs.

Selection checklist. Compare the cell datasheets for capacity at your discharge rate, continuous and pulse current, internal resistance, cycle life at your depth of discharge, and temperature range. Ask the supplier for the cell’s test documents, including the UN38.3 test summary for transport (see which UN38.3 documents to request), and confirm grading and lot consistency for production. For reading current ratings, see C-rate and continuous vs peak discharge.

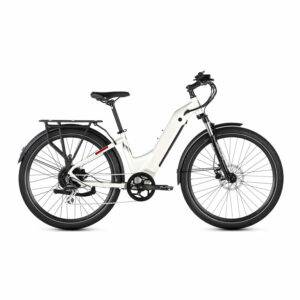

Where finished packs fit. If you would rather buy a pack than build one, Redway’s e-bike battery and power bank lines are offered with OEM/ODM options; specifications need to be requested.
