Which BMS current rating and connector matter when replacing an e-bike battery?

Direct answer: Three things must match: the BMS continuous current must cover the controller’s maximum draw, the discharge connector and mount must fit the bike exactly, and the charger must suit the new pack. Voltage must also match the original. If you cannot confirm all of these from the bike maker’s data and the replacement pack’s datasheet, do not fit it.

BMS current. The controller decides how much current the motor takes; the battery’s BMS decides how much it allows. Find the controller’s current limit on its label or in the bike documentation. The replacement BMS should be rated at or above that continuously, with a peak rating that covers hill starts. A lower rating causes cut-outs under load; a much higher rating is fine, as the controller still limits current.

Connectors and mounts. Many e-bikes use frame-specific base plates that combine mechanical locking and electrical contacts; others use separate plugs on a cable. Pin layout and polarity must match, and some systems carry a data or enable line as well as power. Check the connector’s current rating against the controller current, and never adapt by cutting and splicing on a pack you cannot inspect.

Communication. Some brands’ batteries communicate with the motor system, and the bike may not run, or may show errors, with a third-party pack. Confirm this with the bike maker before quoting a replacement.

Charger. Use the charger supplied with or approved for the new pack. CPSC warns against ‘universal’ chargers that fit the plug but are not confirmed compatible. Charging should be attended and never done while asleep.

Certification and documents. In the US, packs certified to UL 2271 and bikes certified to UL 2849 are the benchmark referred to by CPSC. Ask any supplier, including Redway for its e-bike battery, for the pack’s test documents (available on request), the BMS specification and the cell type. Redway’s 21700 cell list shows the kind of cells used in many packs.

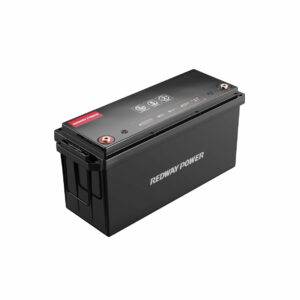

Bigger light vehicles. If the vehicle is really a scooter or cargo trike with a larger tray, a general pack such as the 36V 50Ah (38.4V, 1,920 Wh, 50A continuous, 100A peak for 5 s) may be an option, but it weighs 14 kg and is not an e-bike frame battery. See 36V 50Ah or 100Ah for light equipment.

After fitting. Ride a short test with a hill start, check for cut-outs, then check the connector for heat.
