CATL / EVE / BYD / Samsung SDI / Gotion / SVOLT / LISHEN / REPT / ANC
Nominal Voltage
25.6V
Nominal Capacity
150Ah
Nominal Energy
3840 Wh (3.84 KWh)

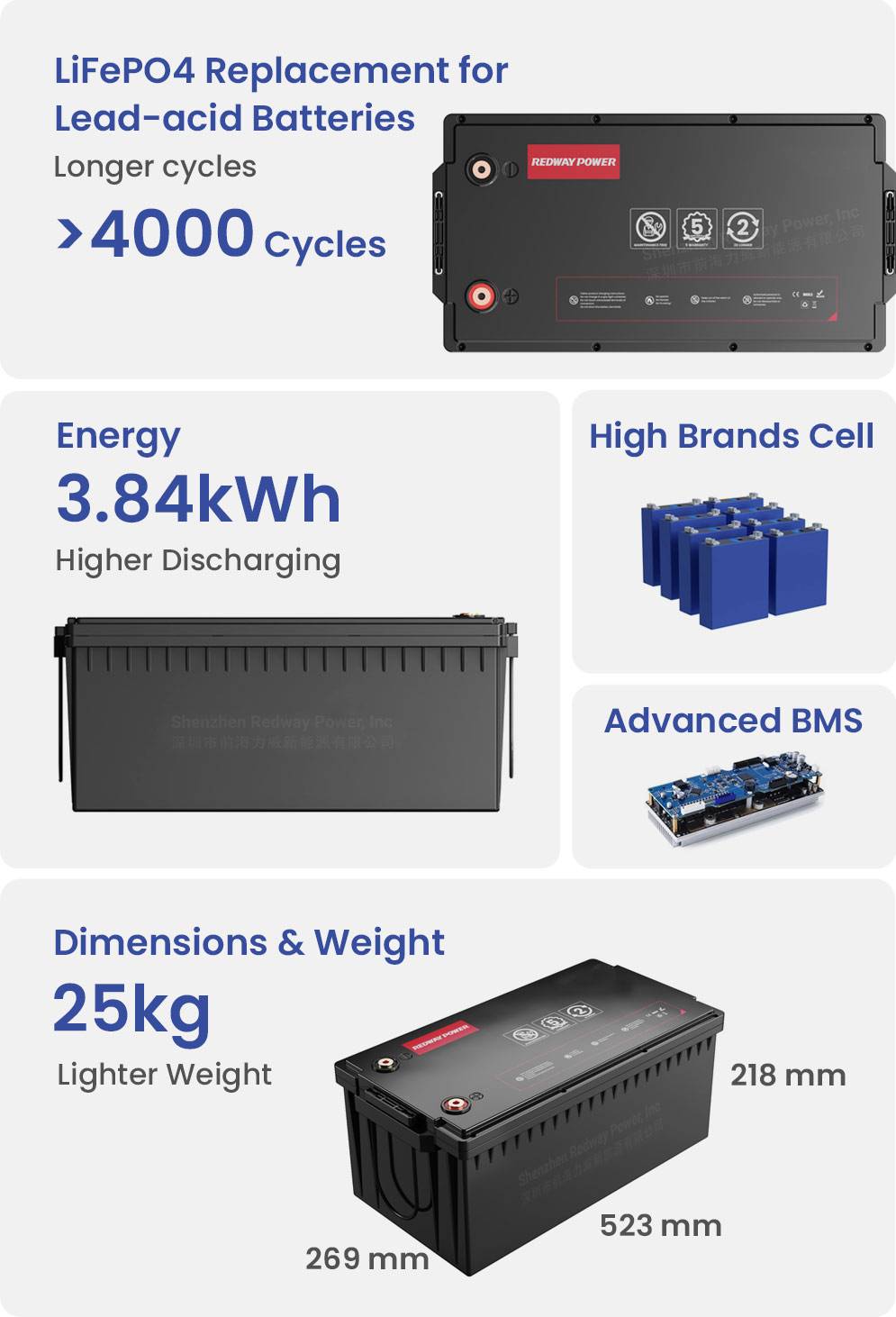

Dimensions [L x W x H]
523 x 269 x 218 mm
20.6 x 10.6 x 8.6 inches
BCI Group 8D
Weight
25 kg
55 lb
Max Charge Voltage
29.2V
Max Cut-off Discharge Voltage
20V
Max Continuous Charge Current
100A / 150A / 200A
Max Continuous Discharge Current
100A / 150A / 200A
Peak Discharge Current
110A (10s) / 160A (10s) / 210A (10s)
Internal Resistance
<10 mΩ
Charge Temperature
0°C ~ 60°C
Discharge Temperature
-20°C ~ 65°C
Max Series Connection
-
Max Parallel Connection
4
Cycle Life
>6,000 Cycles (80% DOD)
>15,000 cycles (60% DOD)
Self-Discharg
<2% per month
IP Rating
IP65
Usage Locations
RVs, Motorhome, Trailer, Van, Marine Boat, Fishing Boat, Yacht, Trolling Motor, UPS, Backup Power Supply, Off-Grid Living, Off-Grid Devices, Hybrid Lifestyle, Solar ESS System, HESS, Home ESS, Outdoor Living, Camping, LED Lighting, Security Camera Power Supply Box, Surveillance System, Emergency System, etc.
Battery Shell
ABS Plastic
BMS Protection
JBD / DALY / DAREN / Advanced Smart BMS:
Cell Automatic Balance, Over Current, Over Charge, Over Discharge, Overload, Over Voltage, Low Voltage, Short Circuit, Over Temperature, Low Temperature, etc.
Optional Upgrades
Self-Heating, Fast Charger, Bluetooth, APP, WiFi, 4G, GPS, RS485, RS232, CAN-bus, Modbus, TCP/IP, Active Balance, LCD Screen, LED Indicator Light, Solar Panel, MPPT, Inverters, TACP, Fan, Heatsink, Circuit Breaker, Switch, Anti-Theft, etc.
Terminals
M8 / T8~T20
Charger (Optional)
Anderson Connector (Optional)
Aviation Connector (Optional)
Bluetooth APP Demo (Android / iOS)
Design Life
10 Years
Warranty
3 Years
User Manual
Yes
Silkscreen
Yes
Label Design / Printing
Yes
Laser Logo
Yes
Certifications
UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)
