Redway Battery offers a full range of lithium batteries in BCI Group 24, Group 27, Group 31, Group 34, Group 35, Group 51, Group 51R, Group 78, Group 8D dimensions, etc. We are a professional lithium battery factory. We undertake OEM/ODM production of lithium battery, please Contact us.

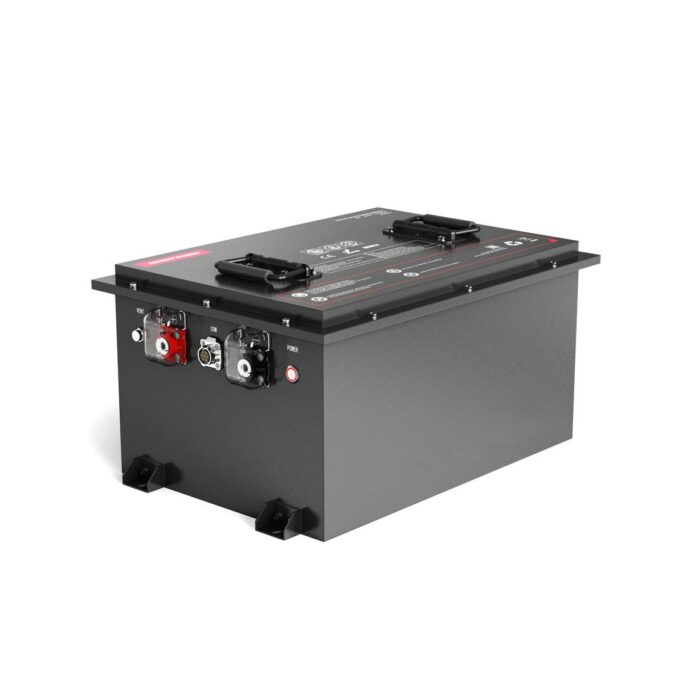

| 48V100Ah (S51105L) | Specifications |
|---|---|
| Cell Type | LiFePO4 |
| Nominal Voltage | 51V |
| Nominal Capacity | 105Ah |
| Nominal Energy | 5.37kWh |
| Charge Voltage | 58.4V |
| Discharge Voltage | 40V |
| Max. Continues Charge Current | 200A |
| Max. Continues Discharge Current | 200A |
| Max. Instantaneous Discharge Current | 250A (10S) |
| Dimensions [L x W x H] |
460 x 334 x 247 mm 18.1 x 13.1 x 9.7 in |
| Weight | 43.2 kg 95.2 lb |
| IP Rating | IP67 |
| Series & Parallel | 16S1P |
| Max. Battery Parallel | 4P to 21.5kWh (More request) |
| Internal Resistance | ≤30mΩ |
| Cycle Life | >4000 cycles |
| Self-Discharge | 3% (Per month) |
| Typical Mileage Per Full Charge | 64-81 km (40-50 miles) |
| Charge Temperature | 0°C ~ 55°C 32°F ~ 131°F |
| Discharge Temperature | -20°C ~ 55°C -4°F ~ 131°F |
| Storage Temperature (1 Month) | -20 ~ 45°C -4℉ ~ 113℉ |
| Storage Temperature (1 Year) | 0 ~ 35°C 32℉ ~ 95℉ |
| Optional Functions | Bluetooth / WiFi / LCD / LED Touch Screen / RS485 / RS232 / CAN / 4G, 5G / GPS / APP |
| Standard Charge Current | 22A (5 hours) |
| BMS | Advanced BMS protection |
| Battery Case | Metal |
| Warranty | 3 Years |
| Silk-Screen / Label Printing | Yes |
| User Manual / Warranty Card | Yes |
| Customization / OEM / ODM | Yes |
| Shipment | Yes |
| Manufacturer of Redway Factories | Dongguan ✔ Sichuan Hebei Hunan |
| Certifications | UL, FCC, IEC, CE, RoSH, UN38.3, MSDS / (More request) |
| Contact Us Online | WhatsApp Now |
