PT48200 Power Storage Lithium Battery

Production Info

• Cell: LiFePO4
• MOQ: 5
• Delivery: 20 Days
• Customizable / OEM / ODM: Yes
• Factory: Redway Dongguan
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Welcome to Redway Battery! OEM Factory Wholesale Price, Fast Delivery.
(Click to Get a Quick Quote!)

redway-pt48200
redway-pt48200

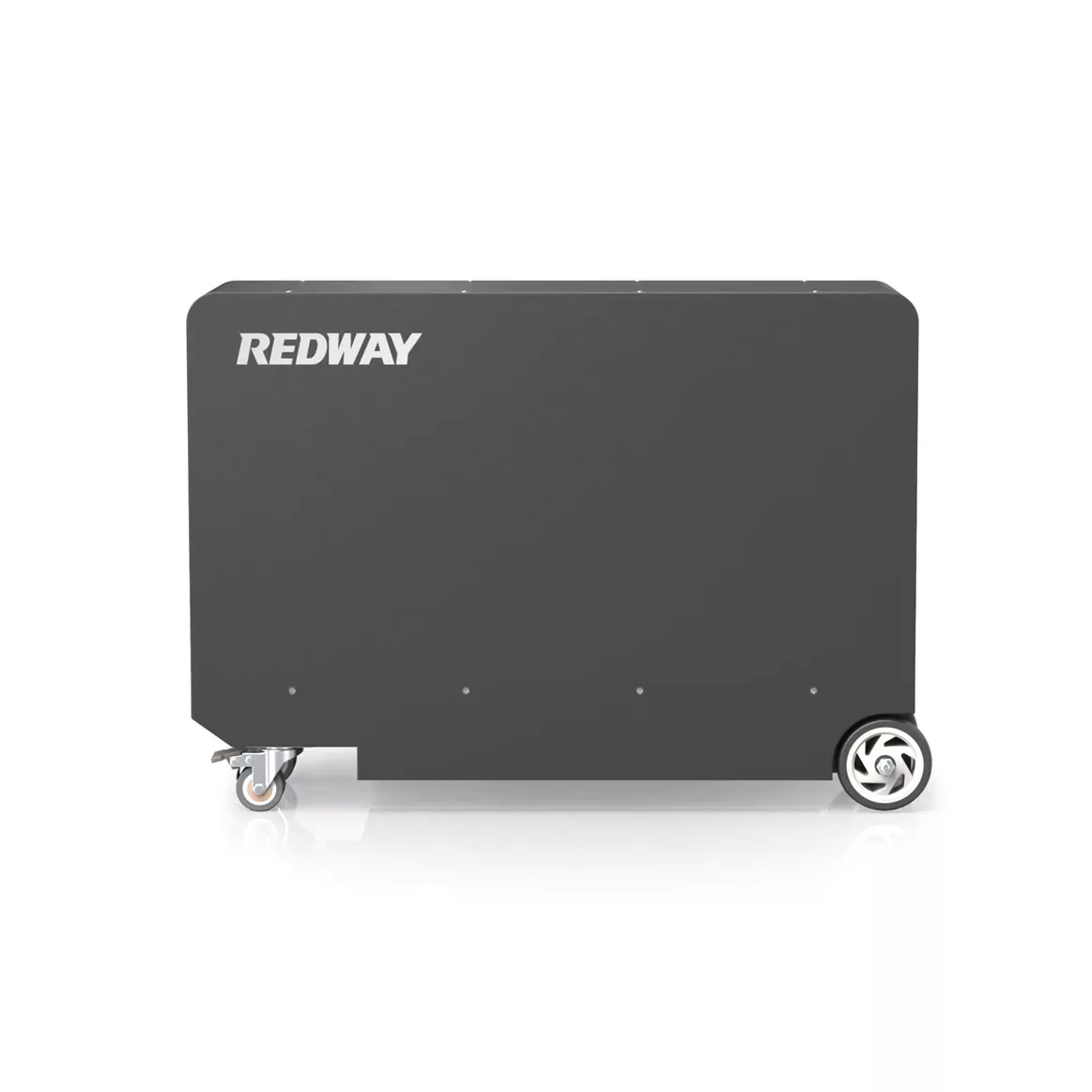

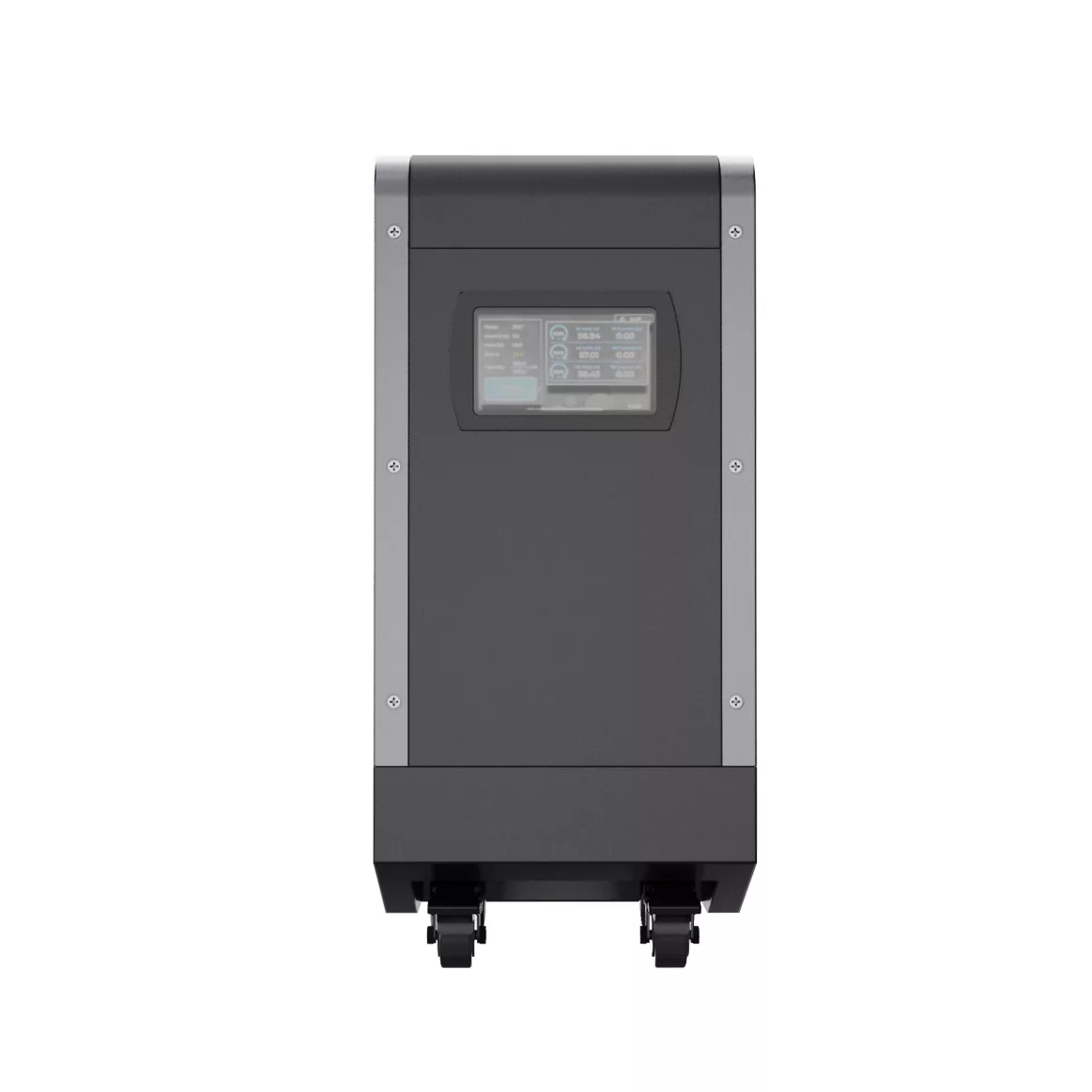

The HOME-ESS movable wheeled type energy storage lithium battery developed by Redway Battery continues to meet the needs of many application environments and families where it is inconvenient to use wall-mounted energy storage batteries. It has complete certifications. For inquiries, please Contact us.

Items Specification
Cell Type LiFePO4
Nominal Voltage 48V
Battery Capacity 184Ah
Nominal Energy 8.83kWh
Dimension [L x W x H] 770 x 220 x 542 mm
30.2 x 8.7 x 21.3 in
Weight 76kg
167.6 lb
Working Voltage 37.5V~54.75V
Charge Voltage 54.75V
Discharge Cut-off Voltage 37.5V
Maximum Charge Current 180A Continuous
Maximum Discharge Current 180A Continuous
Fast Charging Supports Fast Charging
Charging Temperature 0~55°C
32℉~131℉
Discharging Temperature -20~60°C
-4℉~140℉
Operating Humidity Range <30%
Series / Parallel Number 15S1P
Max. Parallel Connection 16
Cycle Life (25°C / 77℉@60% DOD) >8000 Cycles
Cycle Life (25°C / 77℉@80% DOD) >6000 Cycles
Self-Discharge Rate <3% per month
IP Grade IP21 / (More request)
Battery Case Steel
Battery Base Wheels 4
Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
Communication RS485 / CAN
Optional Functions Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP
Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Compatible Inverters Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
Color White / Gray / Black
Design Life 20 Years
Warranty 10 Years
User Manual With the Battery Packaging
Certification & Safety Standard UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS / (More request)
