Battery | Specifications -> | ||||||
---|---|---|---|---|---|---|---|
Battery Quantity | 1 | 2 | 3 | 4 | 5 | 6 | |
Battery Energy | 5.04kWh | 10.08kWh | 15.12kWh | 20.16kWh | 25.2kWh | 30.24kWh | |
Battery Capacity | 105Ah | 210Ah | 315Ah | 420Ah | 525Ah | 630Ah | |
Weight | 85kg 187.4 lb |
138kg 304.2 lb |
191kg 421 lb |
244kg 537.9 lb |
297kg 654.8 lb |
350kg 771.6 lb |
|
Dimension [L x W x H] | 580 x 420 x 430 mm 22.8 x 16.5 x 16.9 in |
580 x 420 x 615 mm 22.8 x 16.5 x 24.2 in |
580 x 420 x 800 mm 22.8 x 16.5 x 31.5 in |
580 x 420 x 985 mm 22.8 x 16.5 x 38.8 in |
580 x 420 x 1170 mm 22.8 x 16.5 x 46 in |
580 x 420 x 1355 mm 22.8 x 16.5 x 53.3 in |
|
Cell Type | LiFePO4 | ||||||
Battery Voltage | 48V | ||||||
Working Voltage | 37.5V ~ 54.75V | ||||||
Maximum Charge Current | 100A Continuous | ||||||
Maximum Discharge Current | 100A Continuous | ||||||
Fast Charging | Supports Fast Charging | ||||||
Charging Temperature | 0°C ~ 50°C 32℉ ~ 122℉ |
||||||
Discharging Temperature | -15°C ~ 55°C 5℉ ~ 131℉ |
||||||
Operating Humidity Range | <80% | ||||||
Nominal Operation Altitude | <4000 m | ||||||
Max. Parallel Connection | 6 | ||||||
Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles | ||||||
Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles | ||||||
Cooling Mode | Force Air Cooling | ||||||
Noise | 50 dB | ||||||
Operation Environment | Indoor | ||||||
Installation Method | Horizontal | ||||||
Self-Discharge Rate | <3% per month | ||||||
IP Grade | IP20 / More request | ||||||
Battery Case | Steel | ||||||
Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit | ||||||
Communication | RS485 | ||||||
Optional Functions | Bluetooth / WiFi / RS232 / CAN / Circuit Breaker / Active Balance / LED Touch Screen / 4G / 5G / APP | ||||||
Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire | ||||||
Color | White / Gray / Black | ||||||
Design Life | 20 Years | ||||||
Warranty | 10 Years | ||||||
User Manual | With the Battery Packaging | ||||||
Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS / More request | ||||||

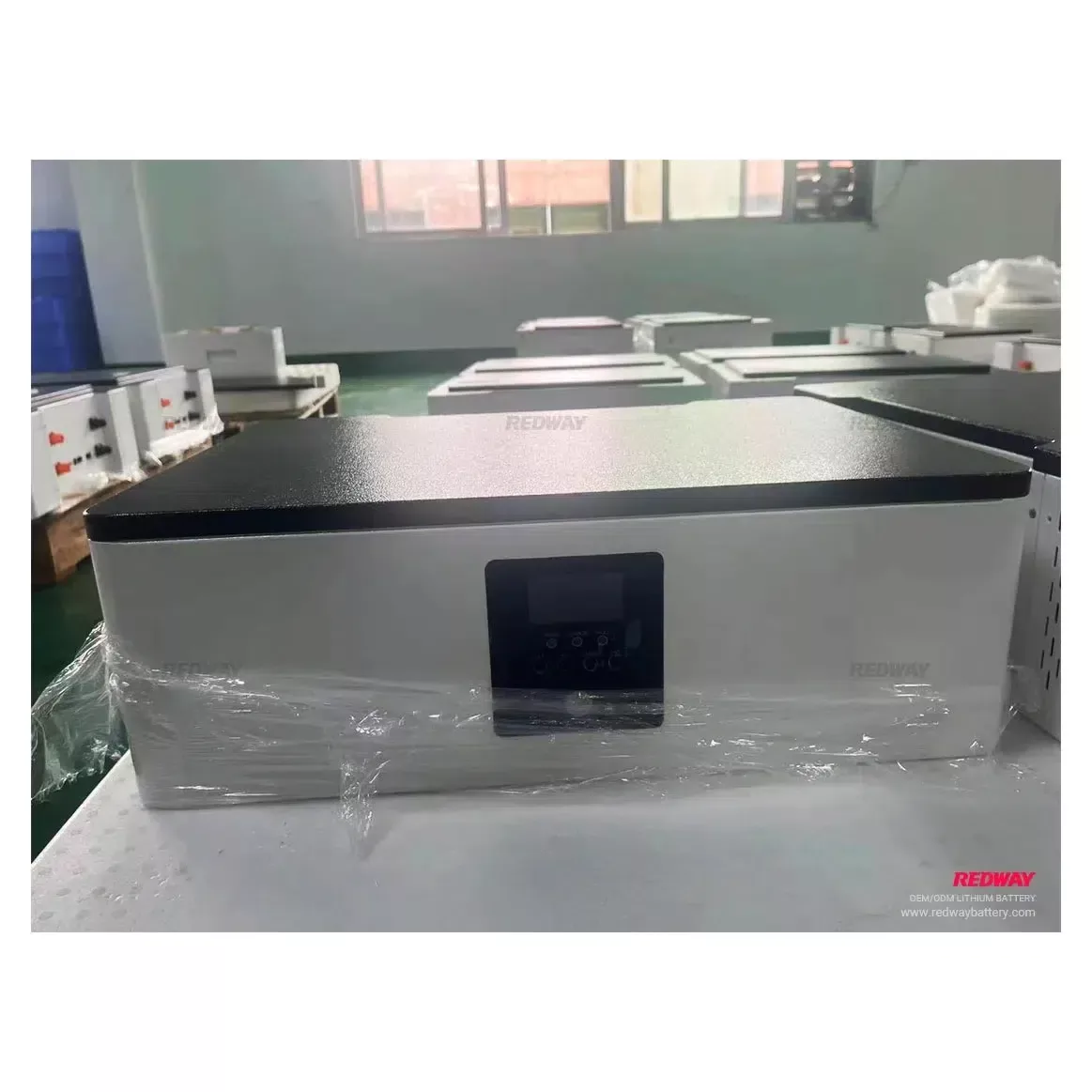

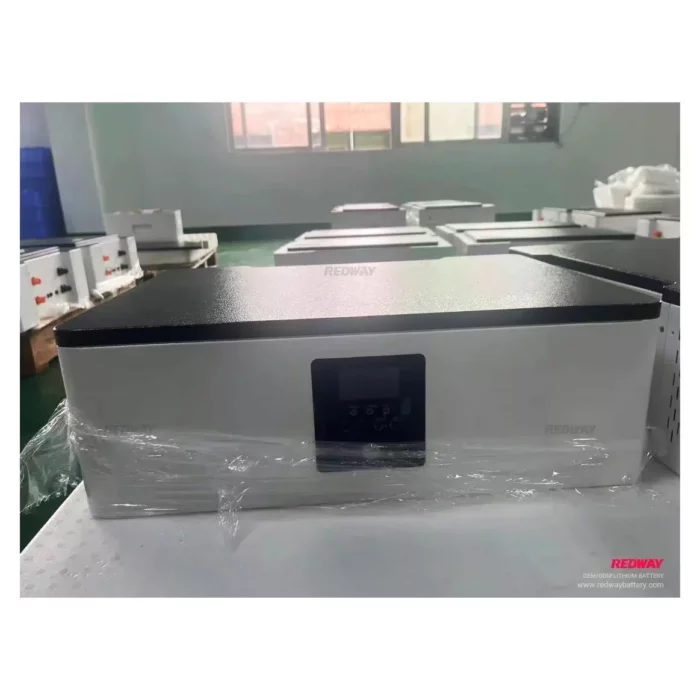

Inverter | Specifications -> | ||||||
PV Charge | EU | US | |||||
Solar Charge Type | MPPT | MPPT | |||||
Maximum Output Power | 5kWh | 5kWh | |||||
PV Charging Current Range | 0~80A | 0~80A | |||||
PV Operating Voltage Range | 120V~500V | 120V~500V | |||||
MPPT Voltage Range | 120V~450V | 120V~450V | |||||
AC Charge | EU | US | |||||
Maximum Charge Power | 2100W | 2100W | |||||
AC Charge Current Range | 0~60A | 0~40A | |||||
Rated Input Voltage | 220V / 230V | 110V / 120V | |||||
Input Voltage Range | 90V~280V | 90V~140V | |||||
AC Output | EU | US | |||||
Rate Output Power | 5kW | 5kW | |||||
Maximum Output Current | 40A | 40A | |||||
Frequency | 50Hz / 60Hz | 50Hz / 60Hz | |||||
Overload Current | 40A | 40A | |||||
Inverter Output | EU | US | |||||
Rate Output Power | 5kW | 5kW | |||||
Maximum Peak Power | 10kVa | 7kVa | |||||
Power Factor | 1 | 1 | |||||
Rated Output Voltage (Vac) | 230V | 120V | |||||
Frequency | 50Hz / 60Hz | 50Hz / 60Hz | |||||
Auto Switch Period | <15ms | <15ms | |||||
THD | <3% | <3% | |||||
Communication Interface | USB / RS485 (WiFi / GPRS) Dry node control | USB / RS485 (WiFi / GPRS) Dry node control |

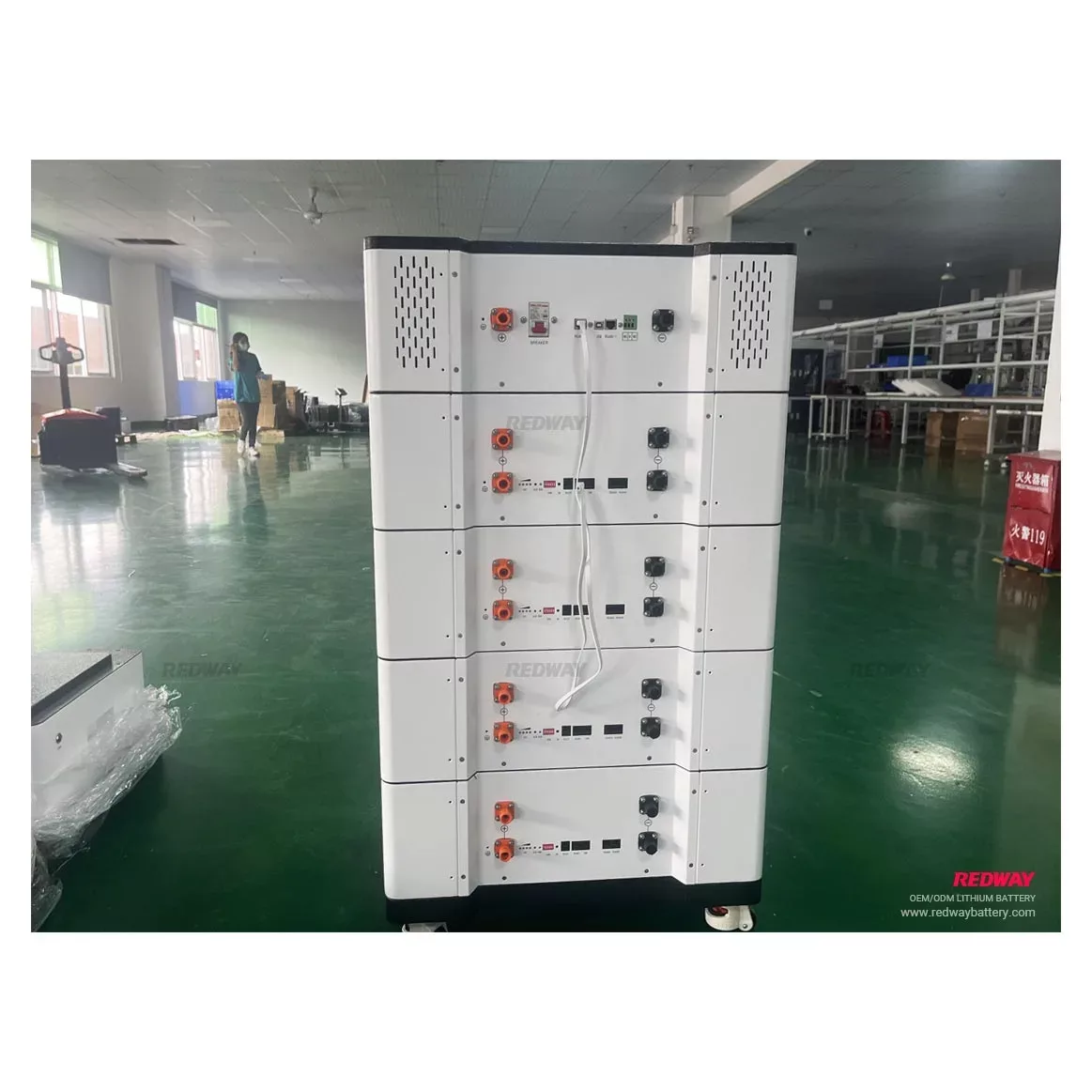

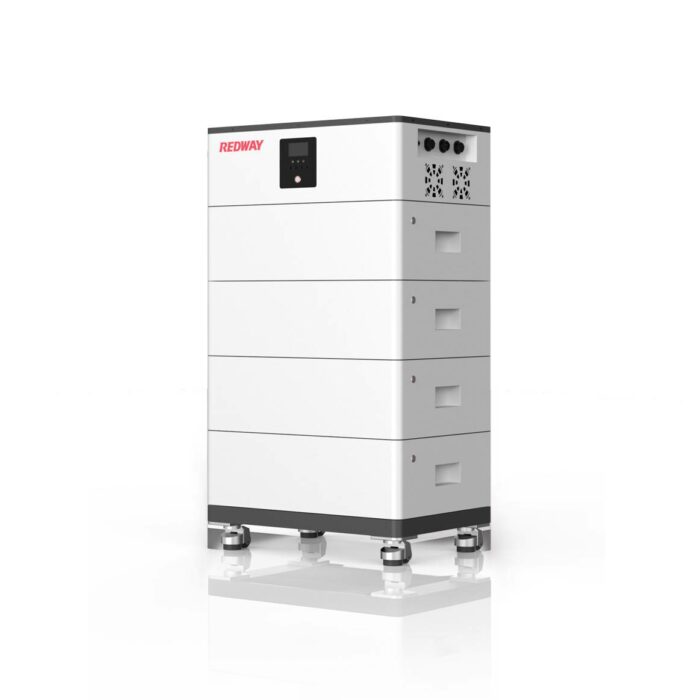

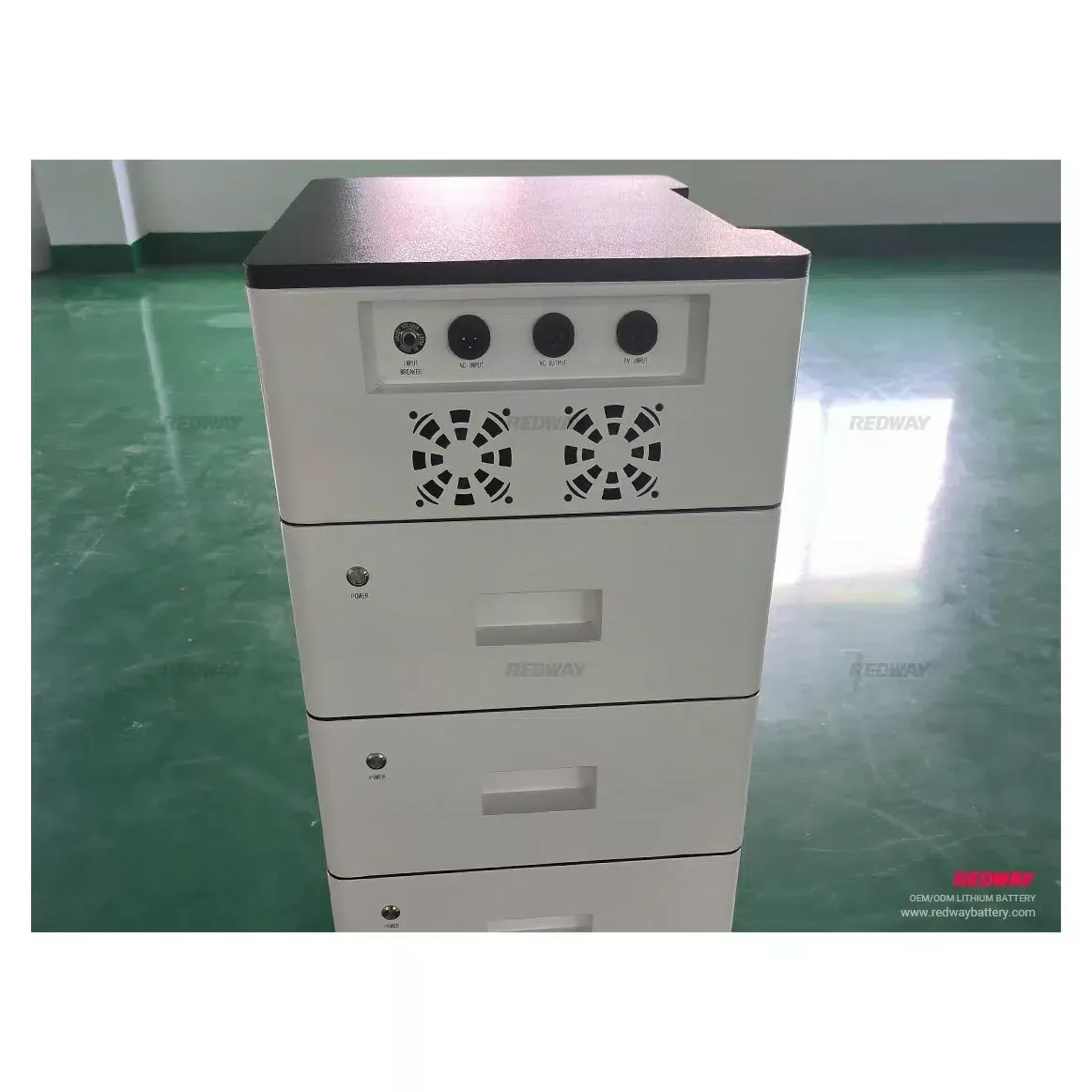

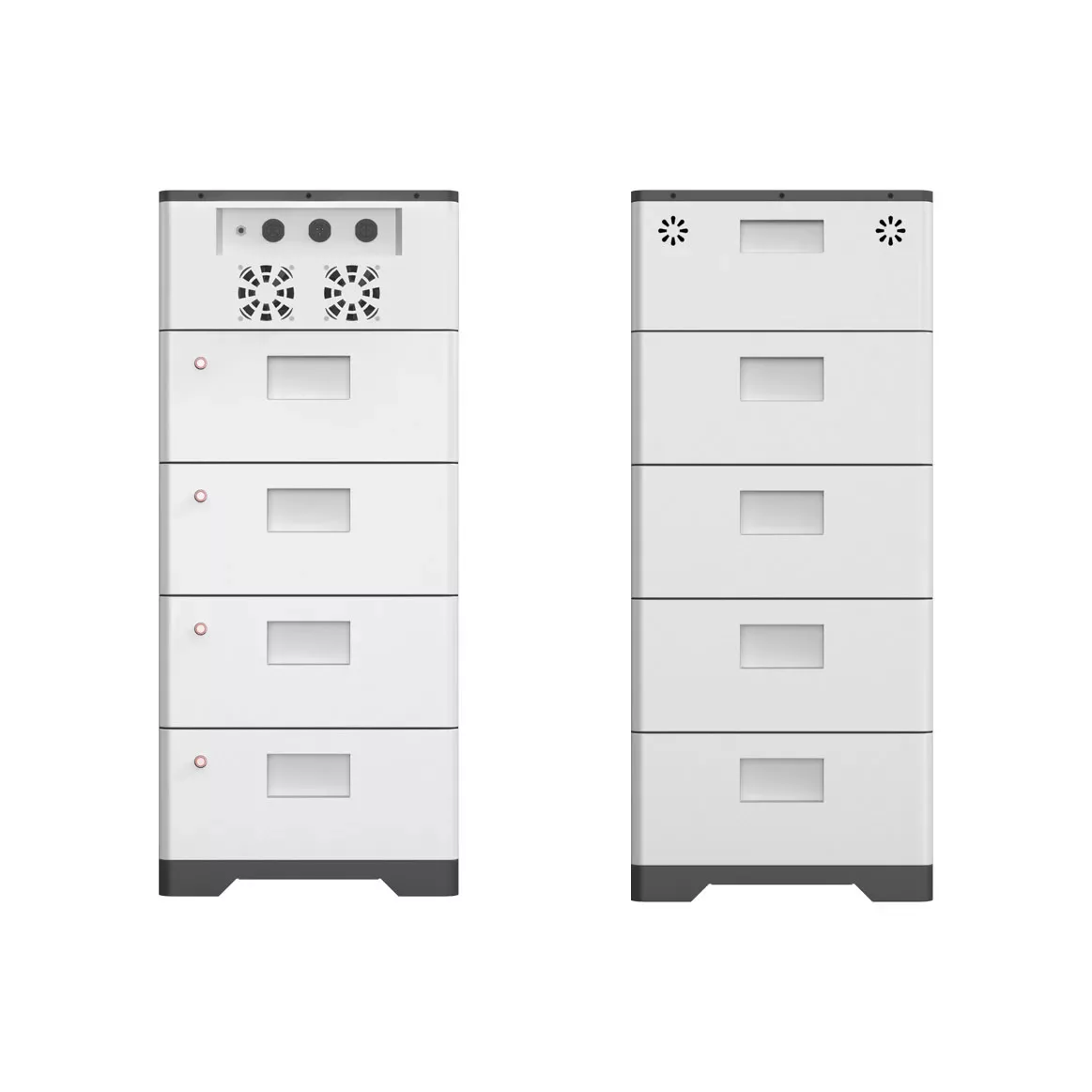

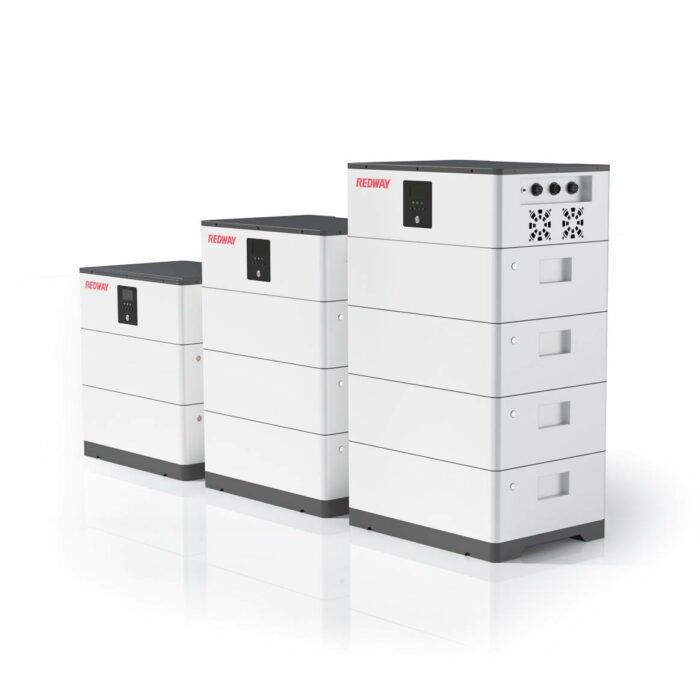

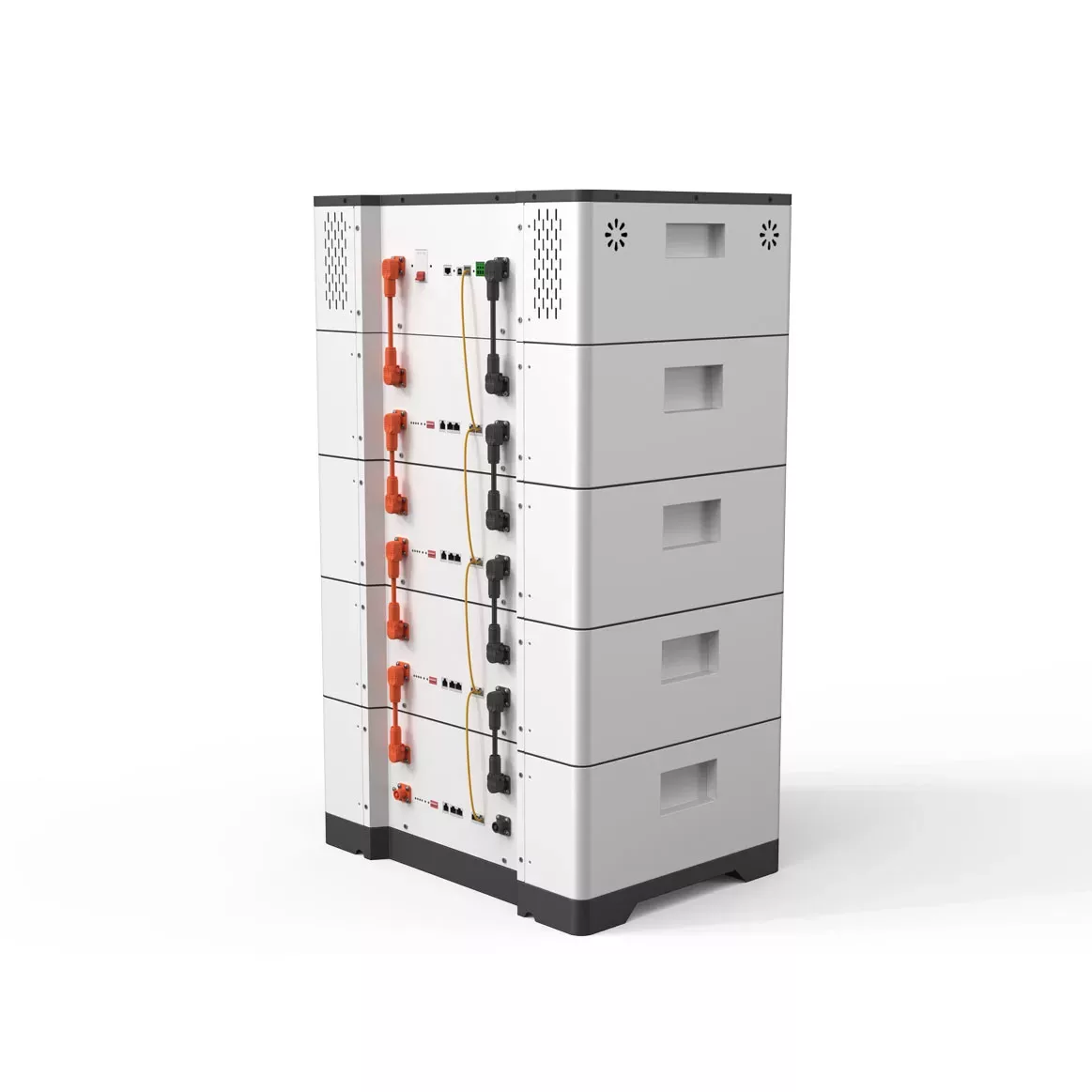

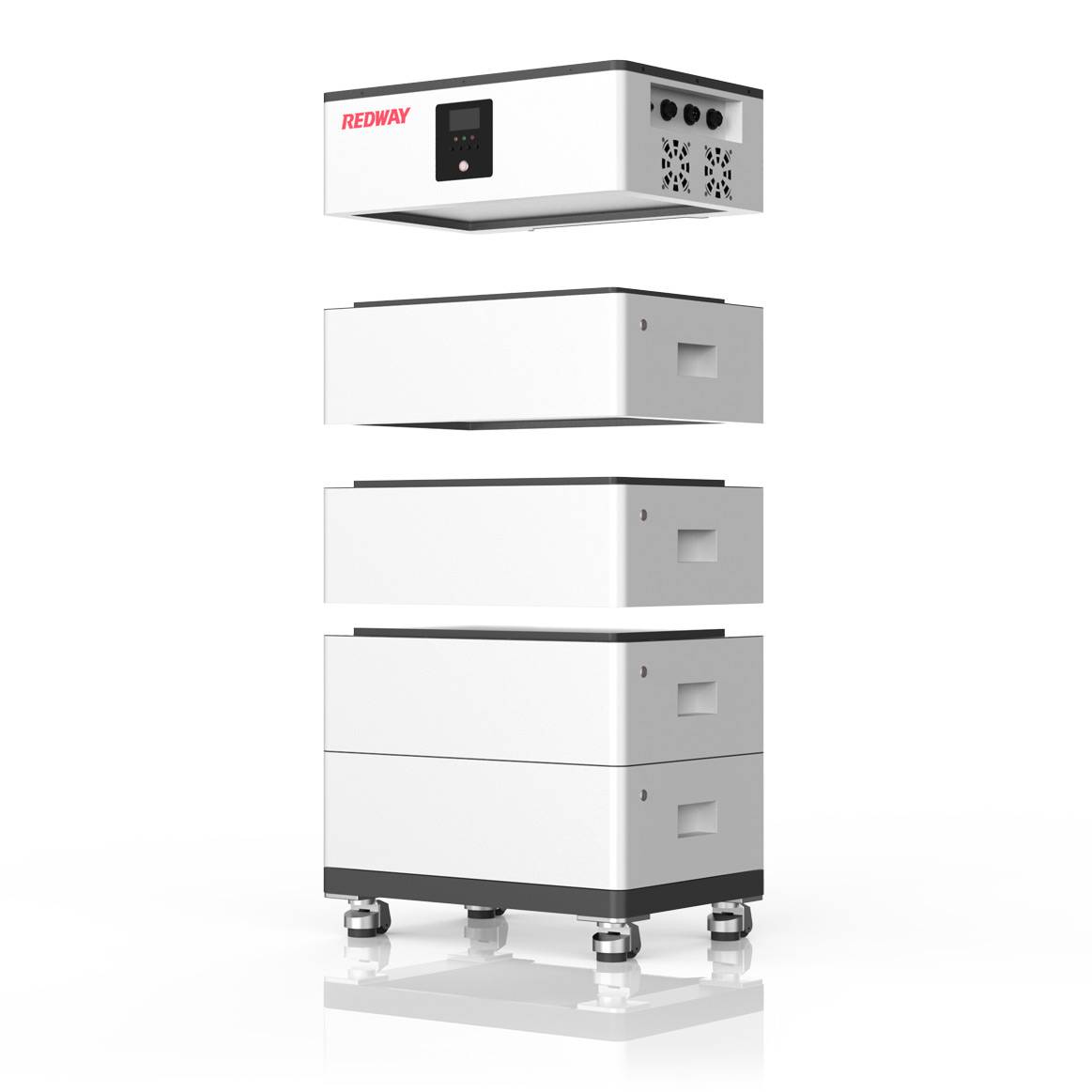

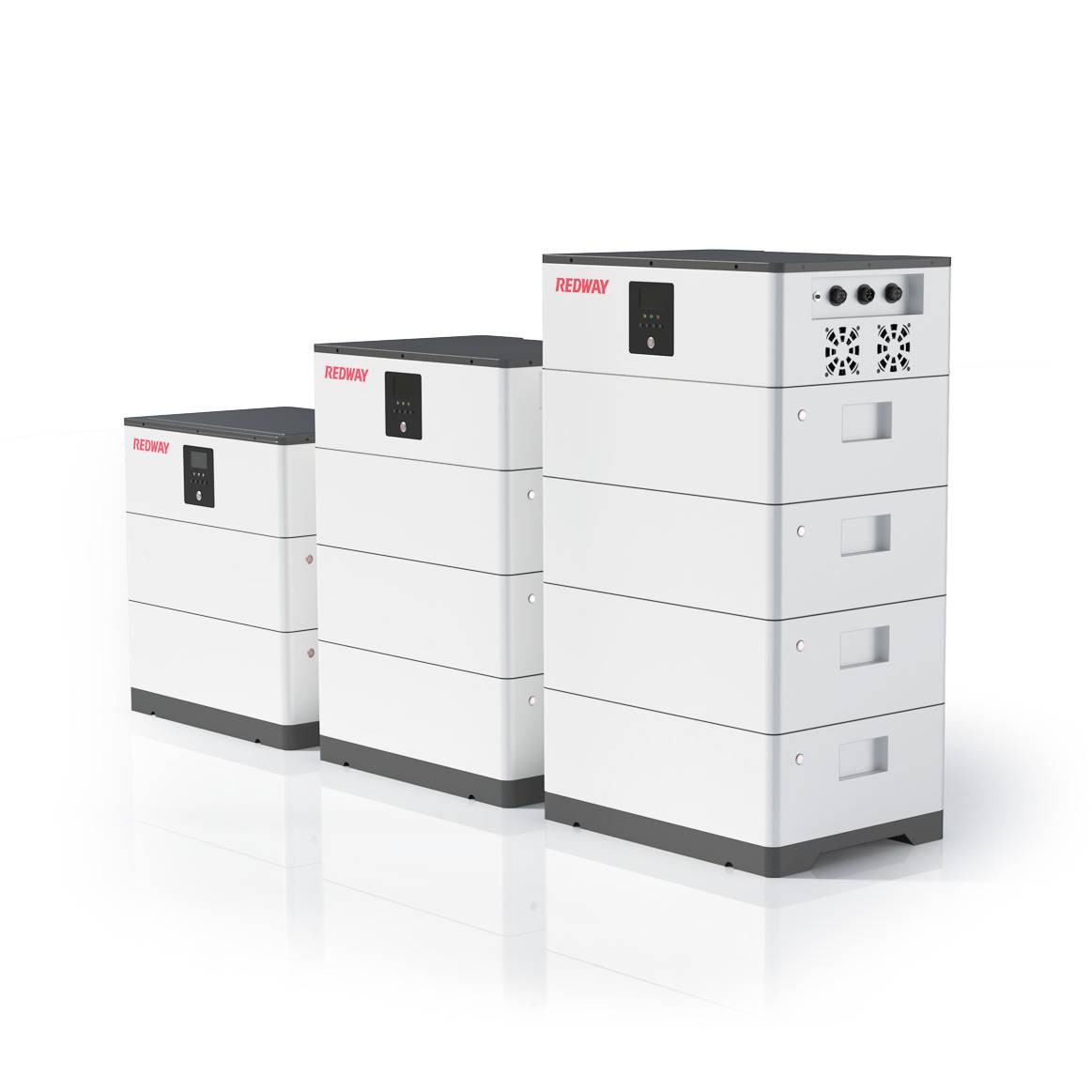

Motive PowerAll 48V All-in-One for HESS
• Cell: LiFePO4
• MOQ: 1
• Delivery: 20 Days
• Customizable / OEM / ODM: Yes

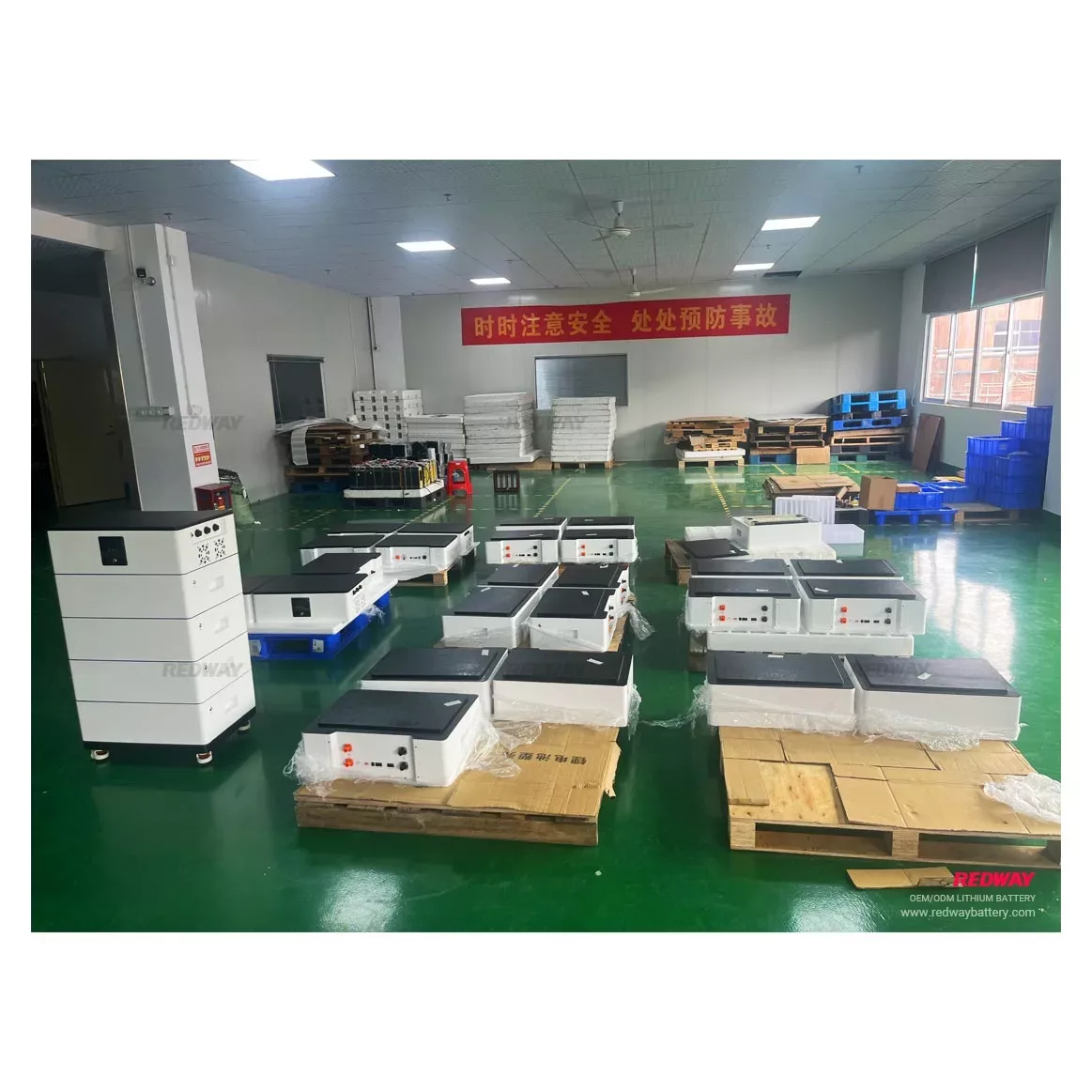

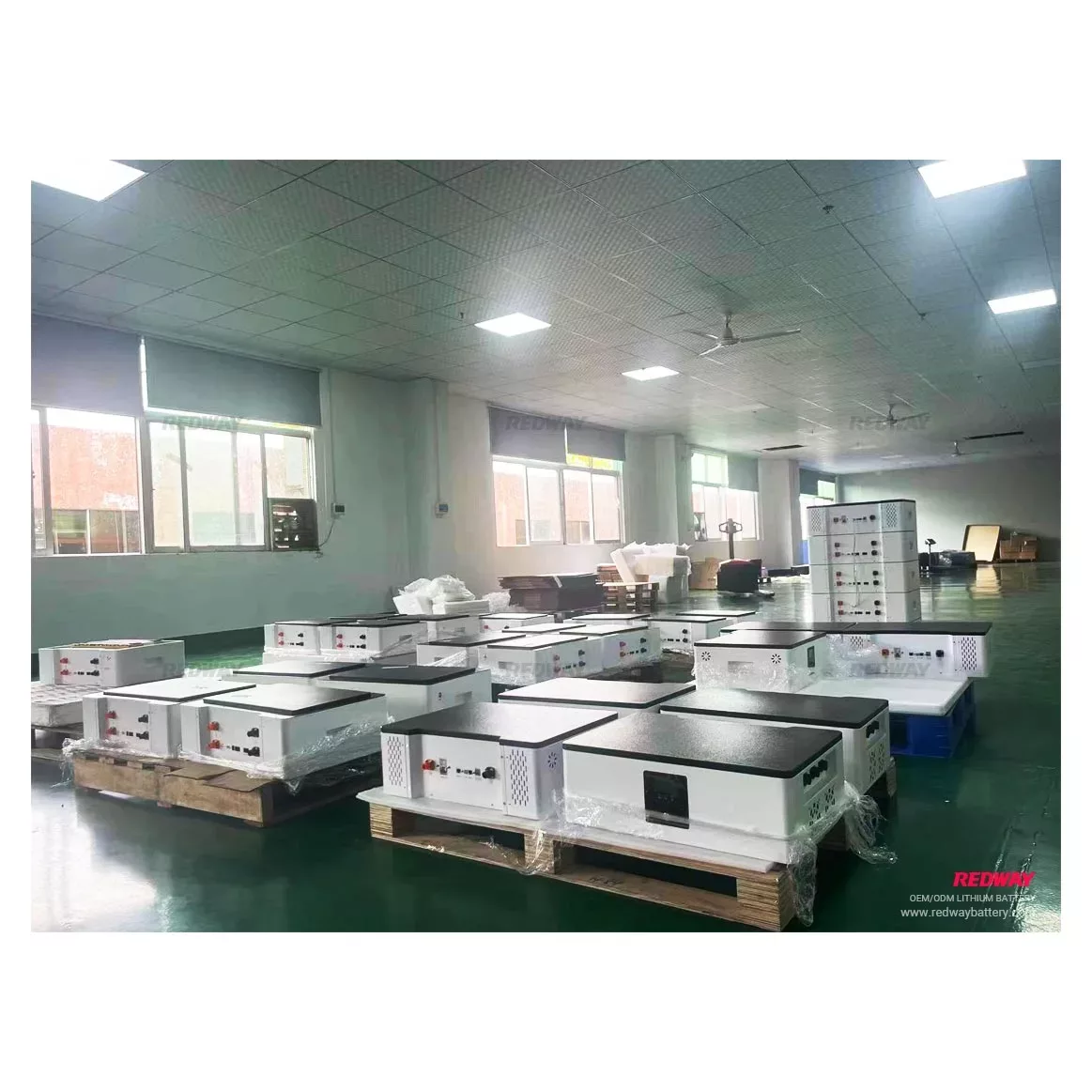

• Factory: Redway Dongguan
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT
