Redway Battery offers a full range of 19 inch lithium battery module in 2U, 3U, 4U dimensions, etc. Redway Battery is a professional lithium battery factory. We undertake OEM/ODM production of lithium batteries and offer wholesale services, Contact us.

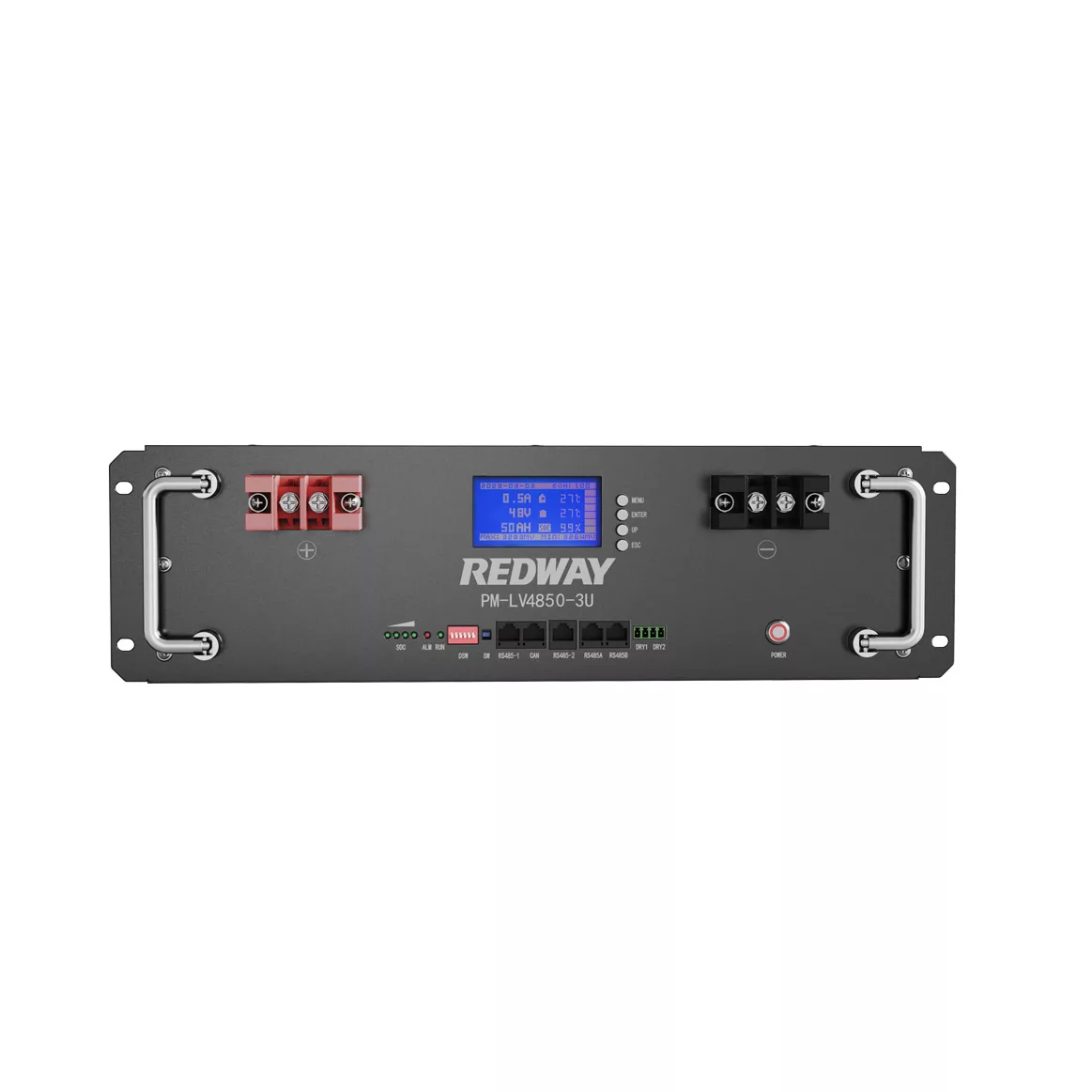

PM-LV4850-3U | Specifications |
---|---|
Cell Type | LiFePO4 |
Nominal Voltage | 48V |
Battery Capacity | 50Ah |
Nominal Energy | 2.4kWh |
Dimension [L x W x H] | 440 x 330 x 134 mm 17.32 x 12.99 x 5.28 in |
Weight | 23kg 50.7 lb |
Working Voltage | 37.5V~54.75V |
Charge Voltage | 54.75V |
Discharge Cut-off Voltage | 37.5V |
Maximum Charge Current | 50A Continuous |
Maximum Discharge Current | 50A Continuous |
Standard Charging / Discharging Current | 25A |
Maximum Charging / Discharging Current | 50A |
Fast Charging | Supports Fast Charging |
Charging Temperature | 0~55°C 32℉~131℉ |
Discharging Temperature | -20~60°C -4℉~140℉ |
Operating Humidity Range | <30% |
Series / Parallel Number | 15S1P |
Max. Parallel Connection | 16 |
Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
Self-Discharge Rate | <3% per month |
IP Grade | IP21 / (More request) |
Battery Case | Iron (Surface: black waterproof baking paint) |
Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
Communication | RS485 / CAN |
Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP |
Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
Pros | Support Off-Grid and Hybrid working mode, compact design, wall and floor type |
Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
Connector | M8 Thread Terminals |
Design Life | 20 Years |
Warranty | 7 Years |
User Manual | With the Battery Packaging |
Certifications | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS / (More request) |
4P and the accompanying simple fixed steel shelf |

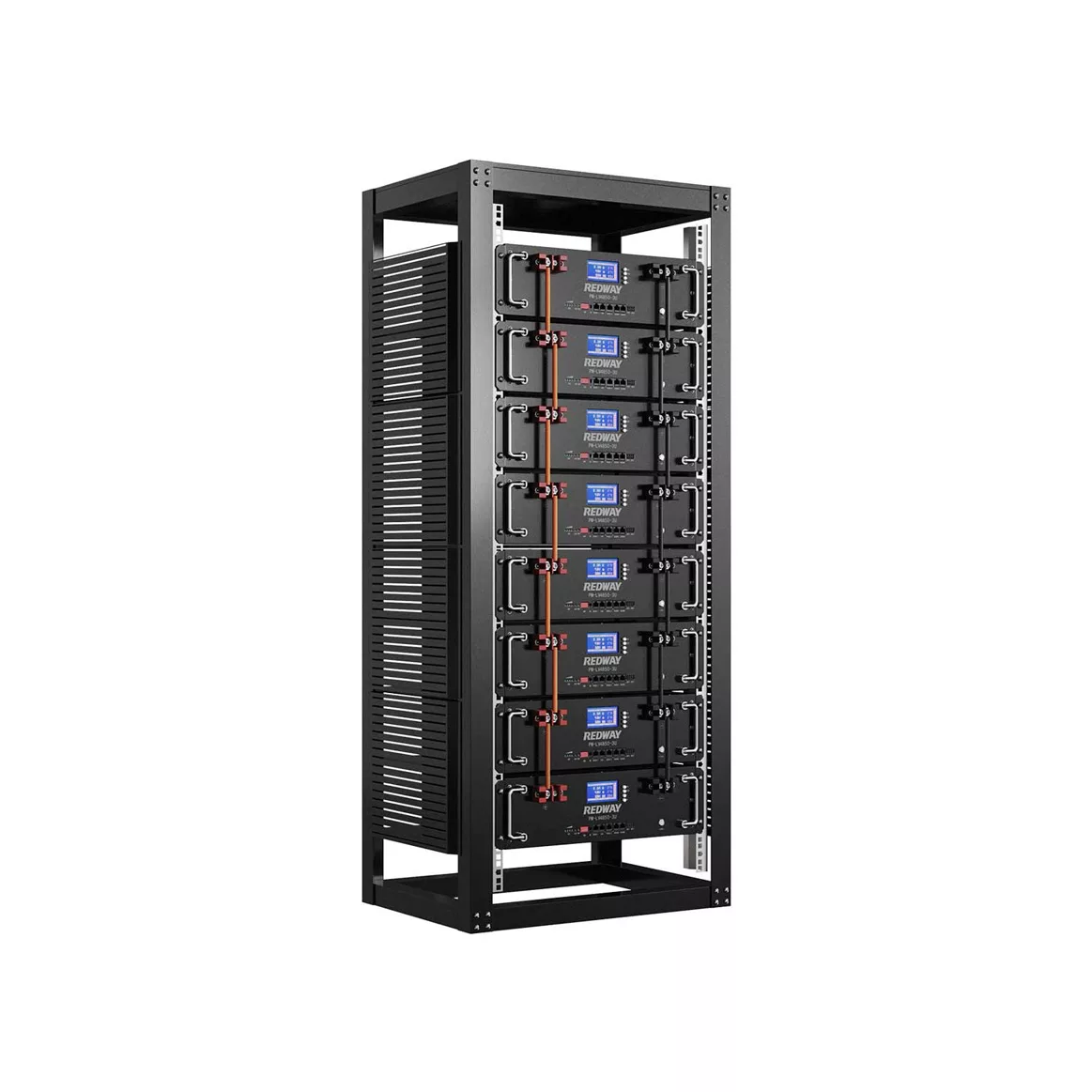

8P and the accompanying fixed steel shelf |
10P and the accompanying fixed steel shelf |
16P |
8P and the accompanying steel shelf cabinet with lock door |
16P and the accompanying steel shelf cabinet with lock door |
