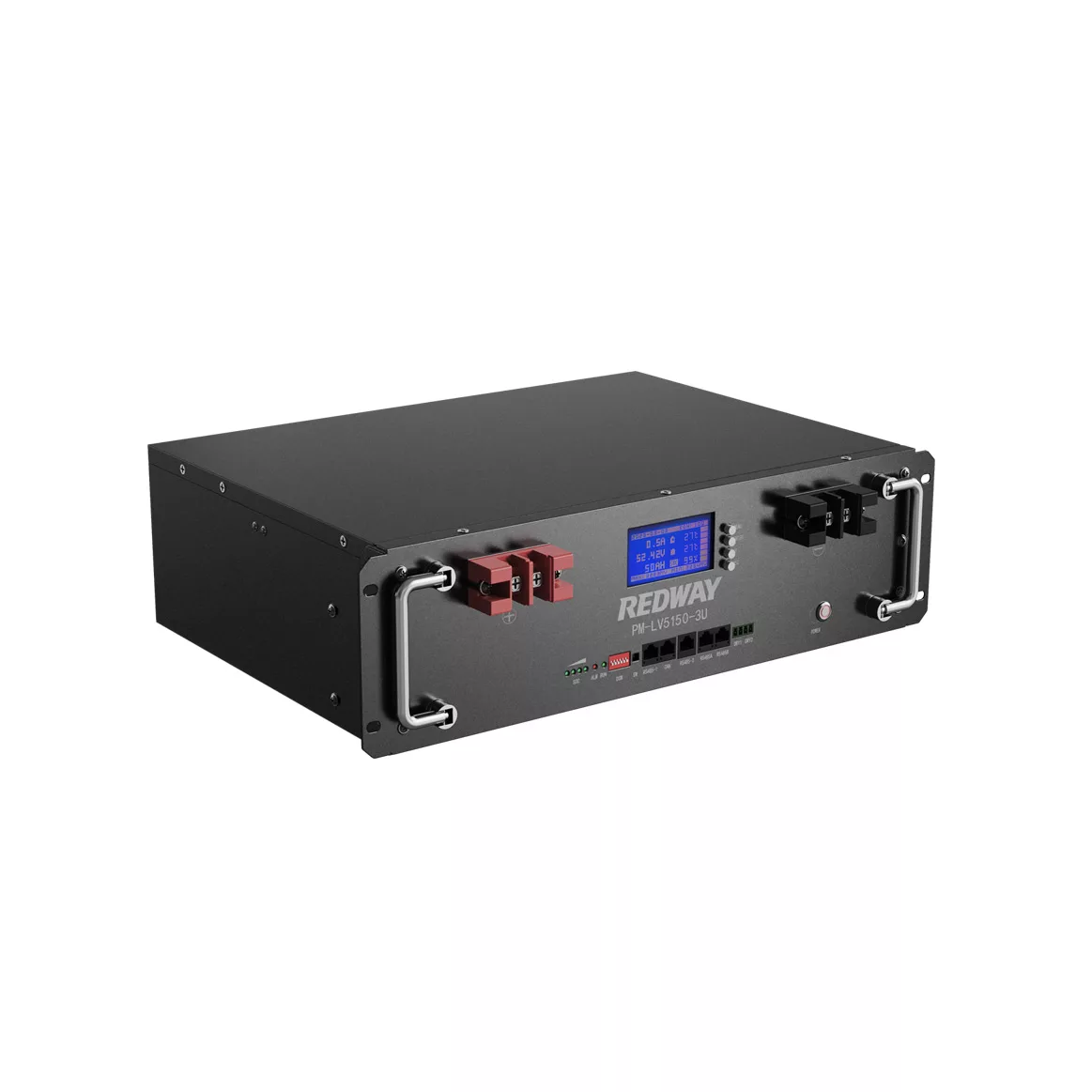

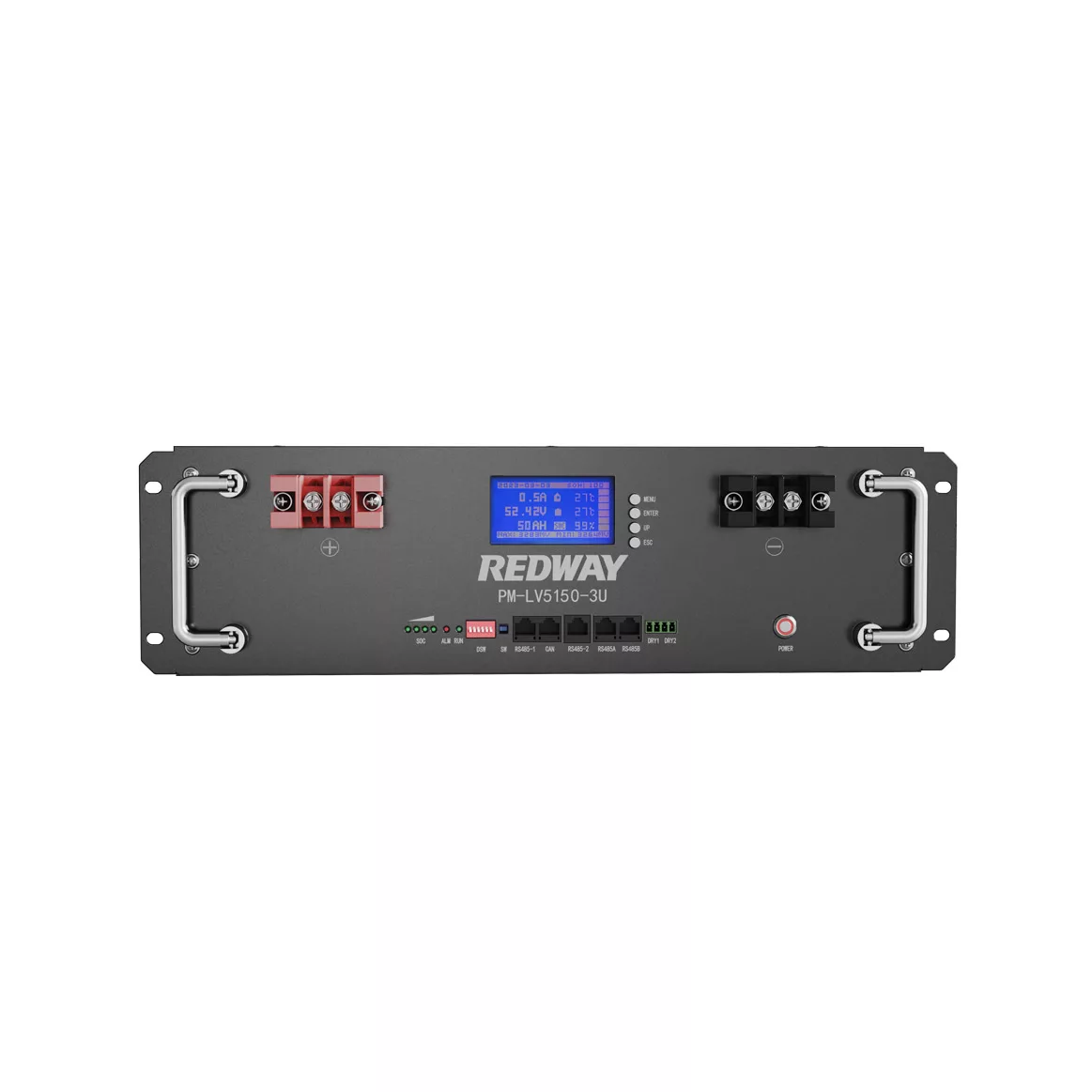

PM-LV5150-3U Lithium Battery Module


This battery is generally used in:
• Home, Industry and Commerce Energy Storage Rack System, etc.
• Cell Optionals: LiFePO4 / NCM / Prismatic / Cylindrical
• Cycle Life: 8,000 times (@25°C / 77℉@60% DOD)
• MOQ: 50
• Delivery: 20 Days
• OEM/ODM / White Label / Customizable: Yes
• Delivery Terms : FOB / EXW / CIF
• Payment: T/T, PayPal, L/C
• Factory: Dongguan, Guangdong, China
• Port of Shipment: Shenzhen Port, China
• Price: Get Lastest Price

Redway Battery offers a full range of 19 inch lithium battery module in 2U, 3U, 4U dimensions, etc. Redway Battery is a professional lithium battery factory . We undertake OEM/ODM/White Label production of lithium batteries and offer wholesale services, contact us.

Items Specification
Cell Type LiFePO4
(Customizable: LiFePO4 / NCM / Prismatic / Cylindrical)
Nominal Voltage 51.2V
Battery Capacity 50Ah
Nominal Energy 2.56kWh (2560Wh)
Dimension [L*W*H] 440*330*134 mm (17.32*12.99*5.28 inch)
(Customizable Dimension)
Weight ≈24kg (52.91 lbs)
Working Voltage 40V~58.4V
Charge Voltage 58.4V
Discharge Cut-off Voltage 40V
Maximum Charge Current 50A Continuous
Maximum Discharge Current 50A Continuous
Standard Charging/Discharging Current 25A
Maximum Charging/Discharging Current 50A
Fast Charging Supports Fast Charging
Charging Temperature 0~55°C (32℉~131℉)
Discharging Temperature -20~60°C (-4℉~140℉)
Operating Humidity Range <30%
Series/Parallel Number 16S1P
Max. Parallel Connection 16
Cycle Life (25°C / 77℉@60% DOD) >8000 Cycles
Cycle Life (25°C / 77℉@80% DOD) >6000 Cycles
Self-Discharge Rate <3% per month (25°C / 77℉)
IP Grade IP21 (Higher grade optional)
Battery Case Iron (Surface: black waterproof baking paint)
Monitoring & Protection Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit
Communication RS485 / CAN
Optional Functions Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP
Accessories Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire
Pros Support Off-Grid and Hybrid working mode, compact design, wall and floor type
Compatible Inverters Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc.
Connector M8 Thread Terminals
Design Life 20 Years
Warranty 7 Years
User Manual With the Battery Packaging
Certification & Safety Standard UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS

4P and the accompanying simple fixed steel shelf

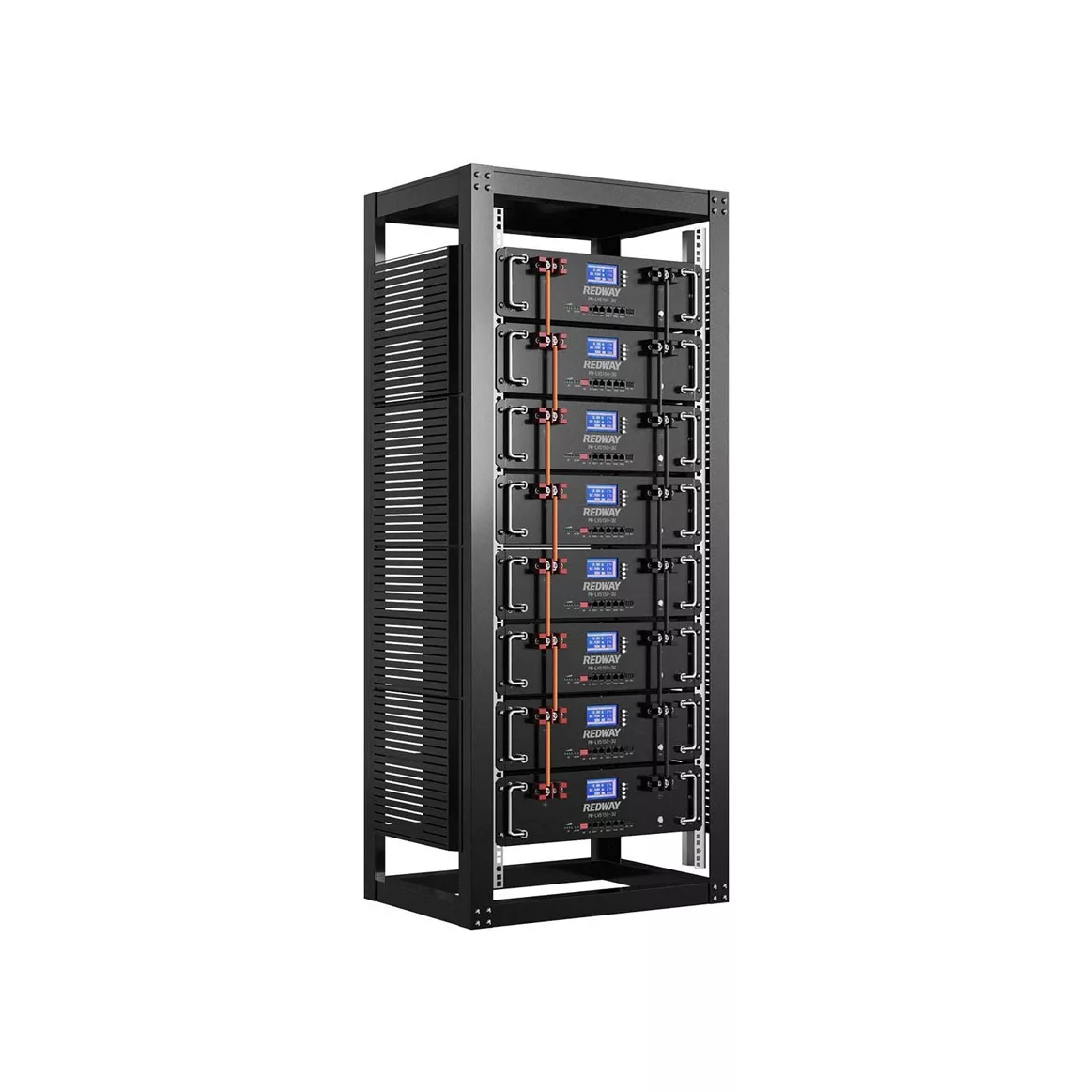

8P and the accompanying fixed steel shelf
10P and the accompanying fixed steel shelf
8P and the accompanying steel shelf cabinet with lock door


Redway PowerModule Low Voltage Series (PM-LV) Lithium Battery Module Brochure (PDF)

Redway Battery Compliant With:


UL 1642
UL 1973
