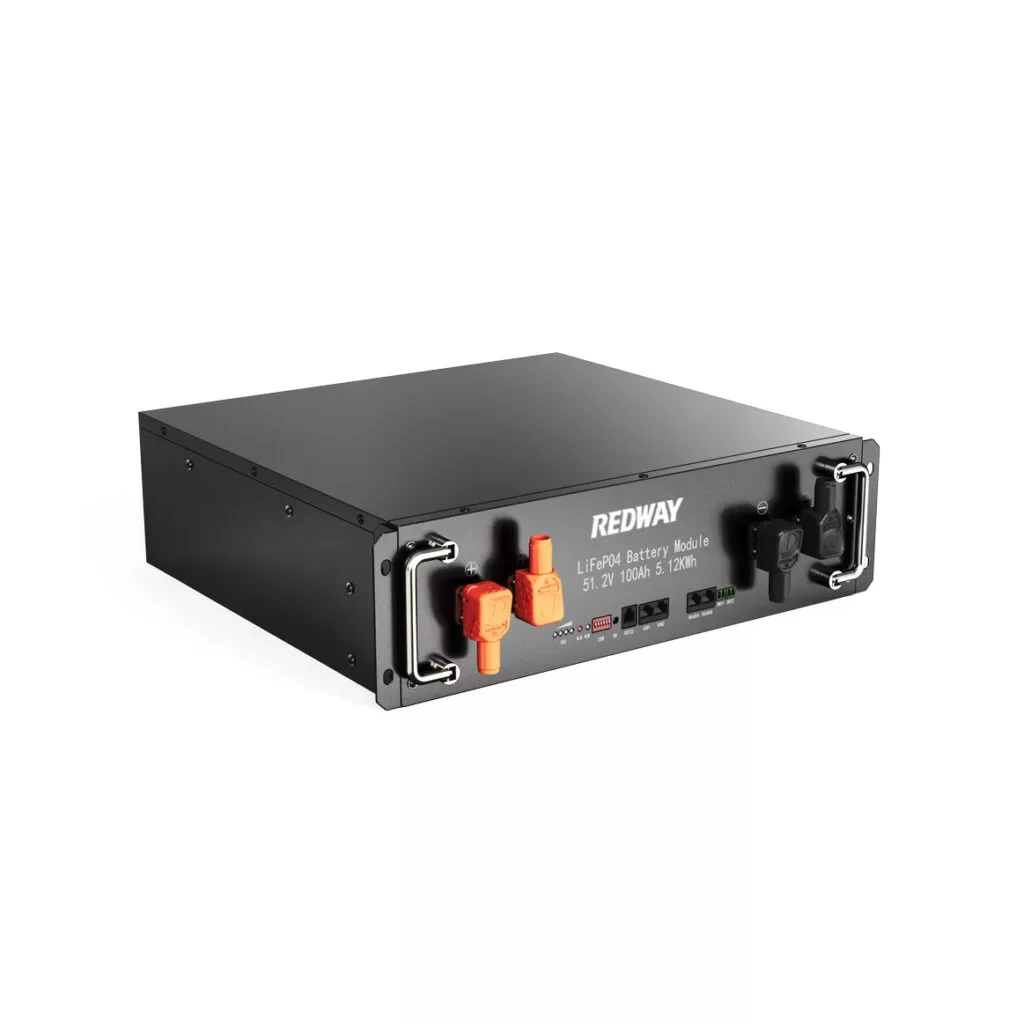

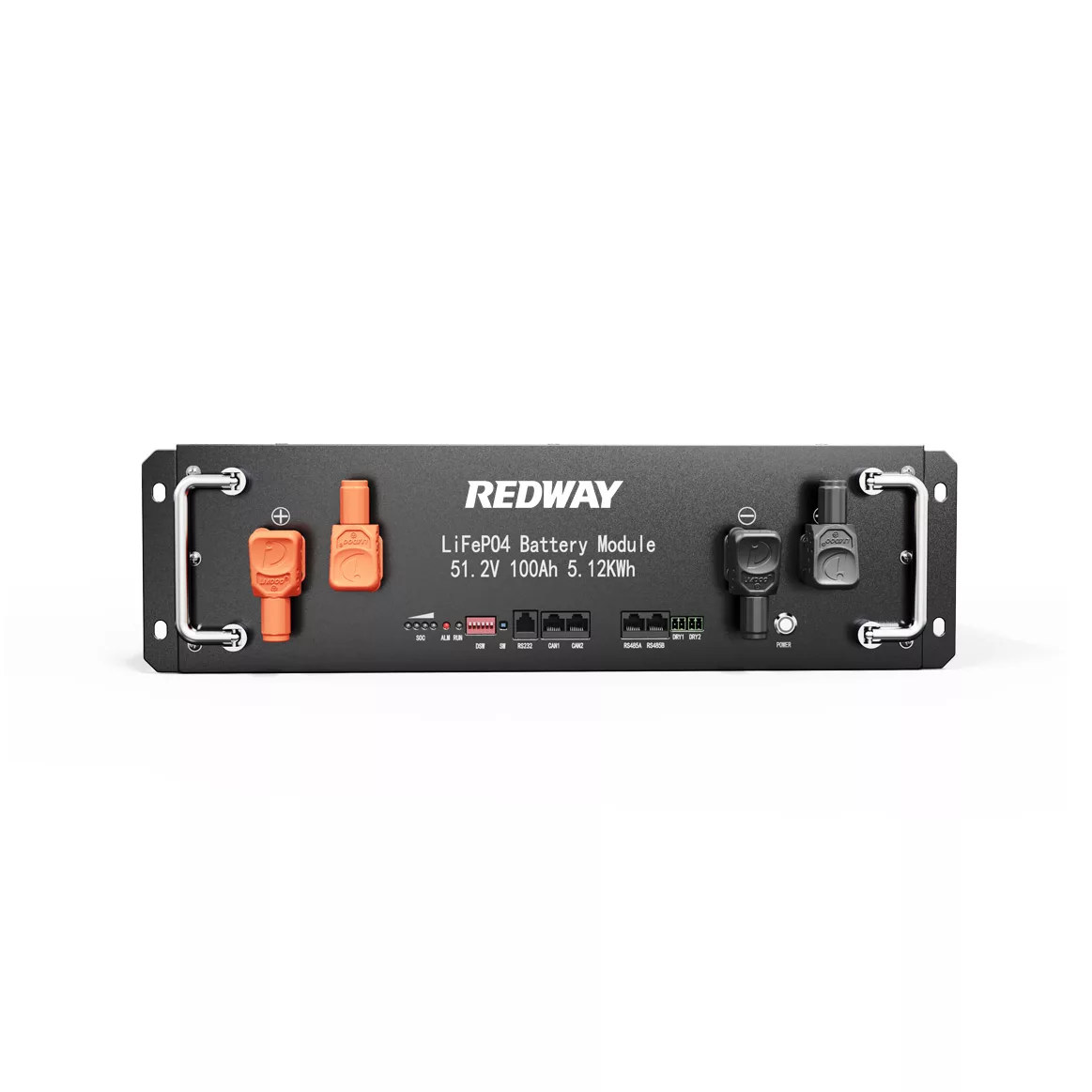

Redway Battery offers a full range of 19 inch lithium battery module in 2U, 3U, 4U dimensions, etc. Redway Battery is a professional lithium battery factory . We undertake OEM/ODM/White Label production of lithium batteries and offer wholesale services, contact us.
| Items | Specification |
|---|---|
| Cell Type | LiFePO4 (Customizable: LiFePO4 / NCM / Prismatic / Cylindrical) |
| Nominal Voltage | 51.2V |
| Battery Capacity | 100Ah |
| Nominal Energy | 5.12kWh (5120Wh) |
| Dimension [L*W*H] | 440*420*134 mm (17.32*16.53*5.28 inch) (Customizable Dimension) |
| Weight | ≈41kg (90.38 lbs) |
| Working Voltage | 40V~58.4V |
| Charge Voltage | 58.4V |
| Discharge Cut-off Voltage | 40V |
| Maximum Charge Current | 100A Continuous |
| Maximum Discharge Current | 100A Continuous |
| Standard Charging/Discharging Current | 50A |
| Maximum Charging/Discharging Current | 100A |
| Fast Charging | Supports Fast Charging |
| Charging Temperature | 0~55°C (32℉~131℉) |
| Discharging Temperature | -20~60°C (-4℉~140℉) |
| Operating Humidity Range | <30% |
| Series/Parallel Number | 16S1P |
| Max. Parallel Connection | 16 |
| Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
| Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
| Self-Discharge Rate | <3% per month (25°C / 77℉) |
| IP Grade | IP21 (Higher grade optional) |
| Battery Case | Iron (Surface: black waterproof baking paint) |
| Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
| Communication | RS485 / CAN |
| Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LCD Screen / LED Touch Screen / APP |
| Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
| Pros | Support Off-Grid and Hybrid working mode, compact design, wall and floor type |
| Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |

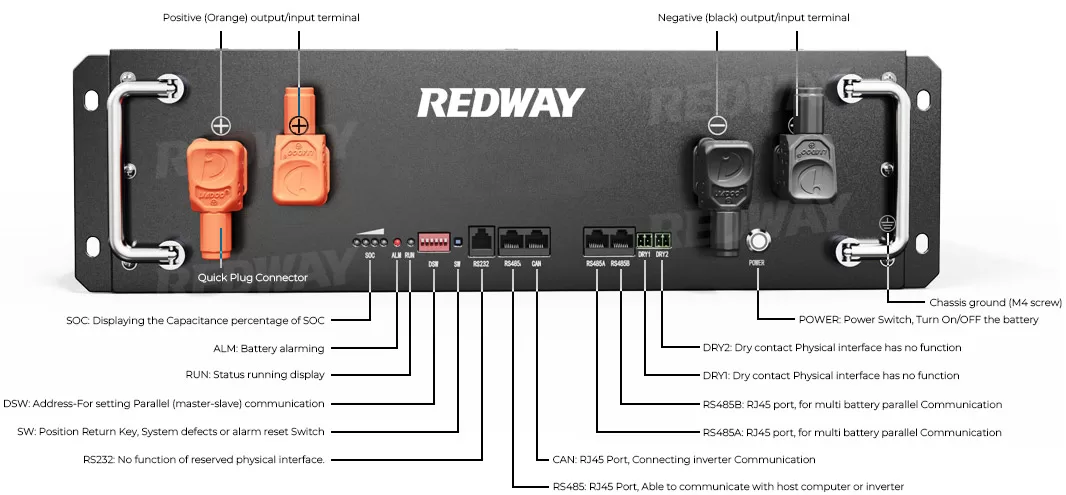

| Connector | Quick Plug Connector |
| Design Life | 20 Years |
| Warranty | 10 Years |
| User Manual | With the Battery Packaging |
| Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS |

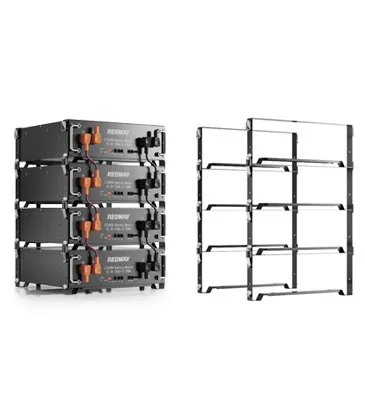

 ≤4P and the accompanying simple fixed steel shelf |

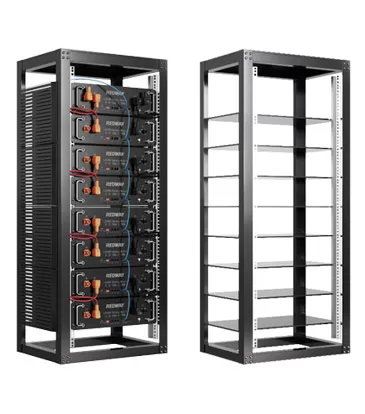

 ≤8P and the accompanying fixed steel shelf |

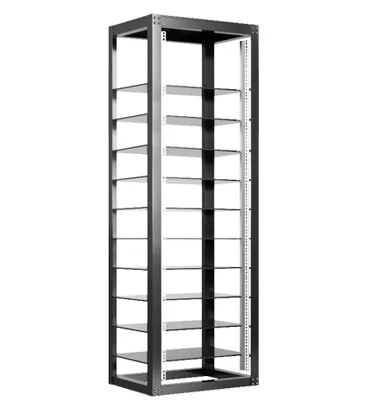

 ≤10P and the accompanying fixed steel shelf |

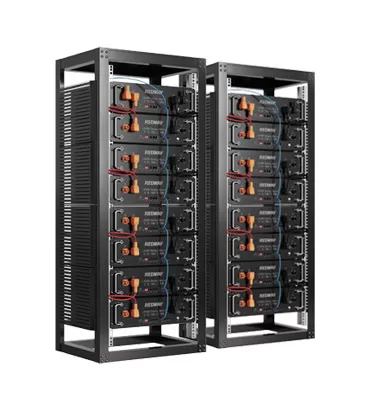

 ≤16P |

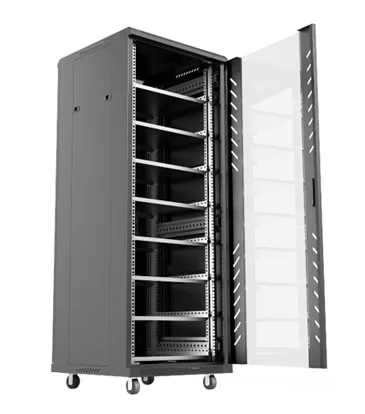

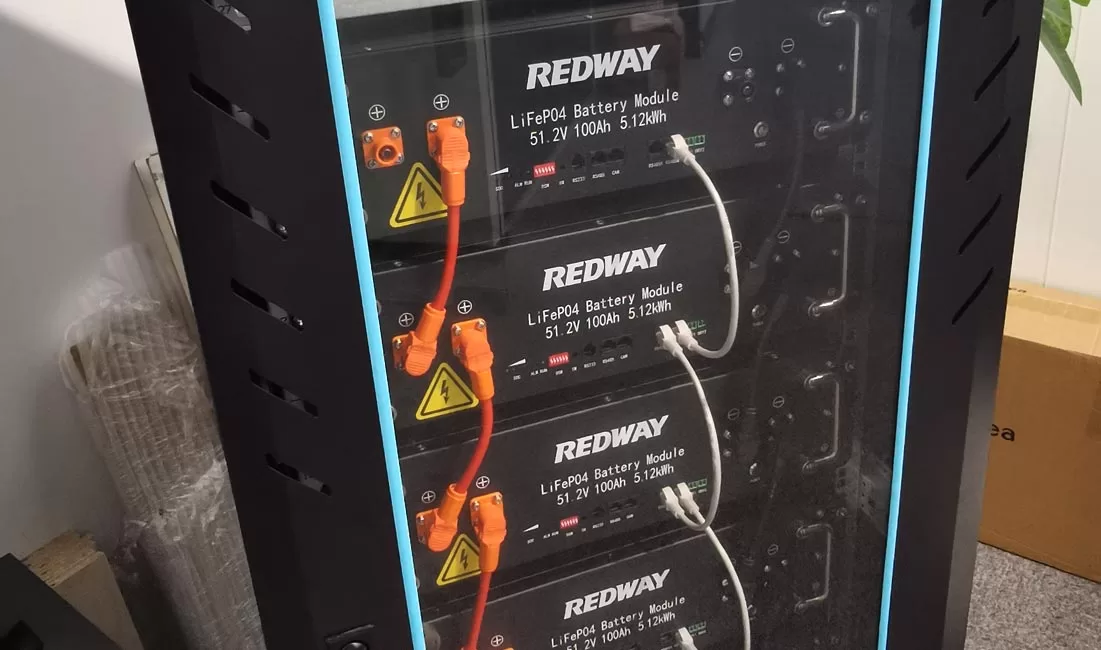

 ≤8P and the accompanying steel shelf cabinet with lock door |

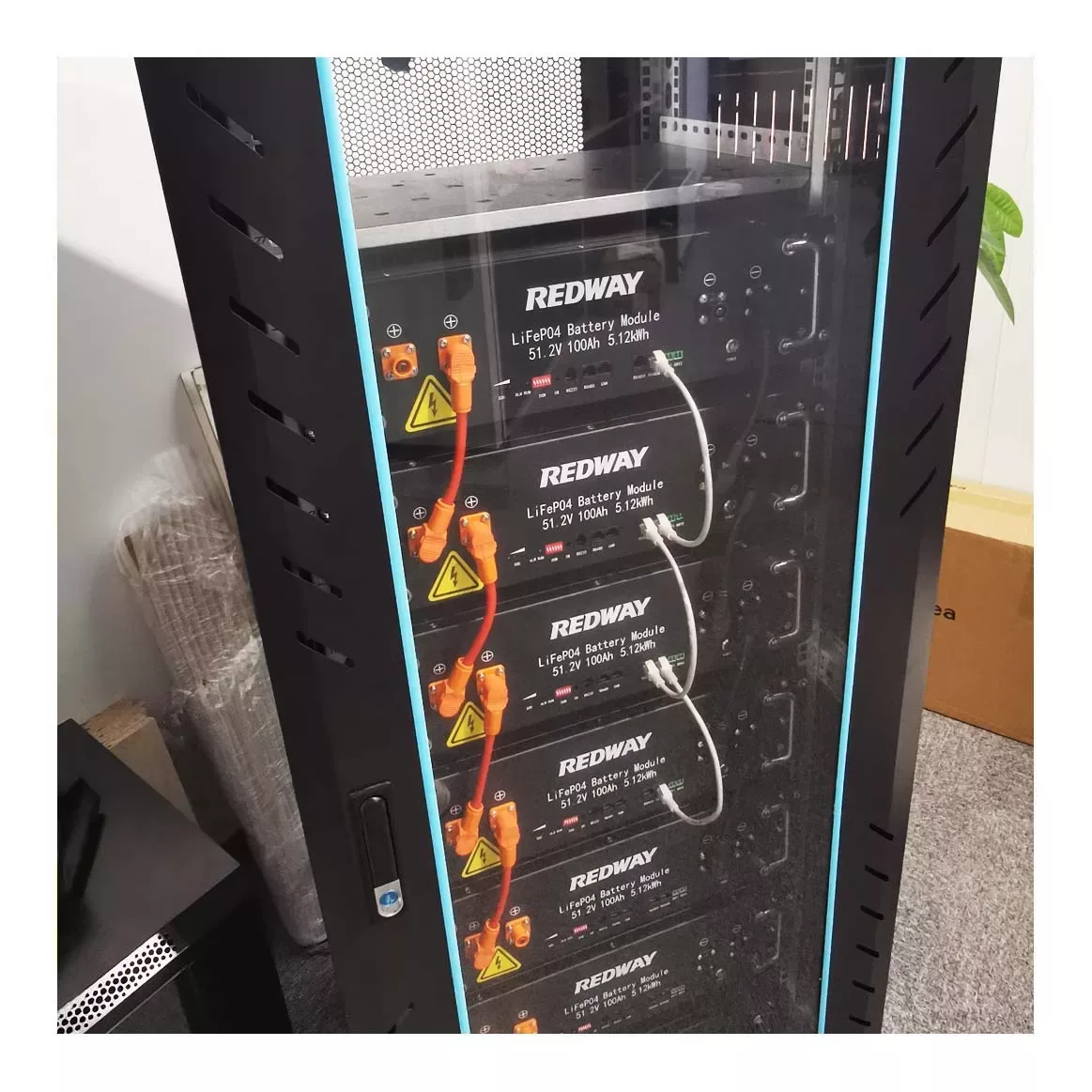

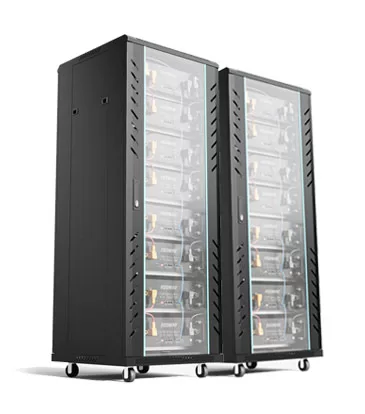

 ≤16P and the accompanying steel shelf cabinet with lock door |
