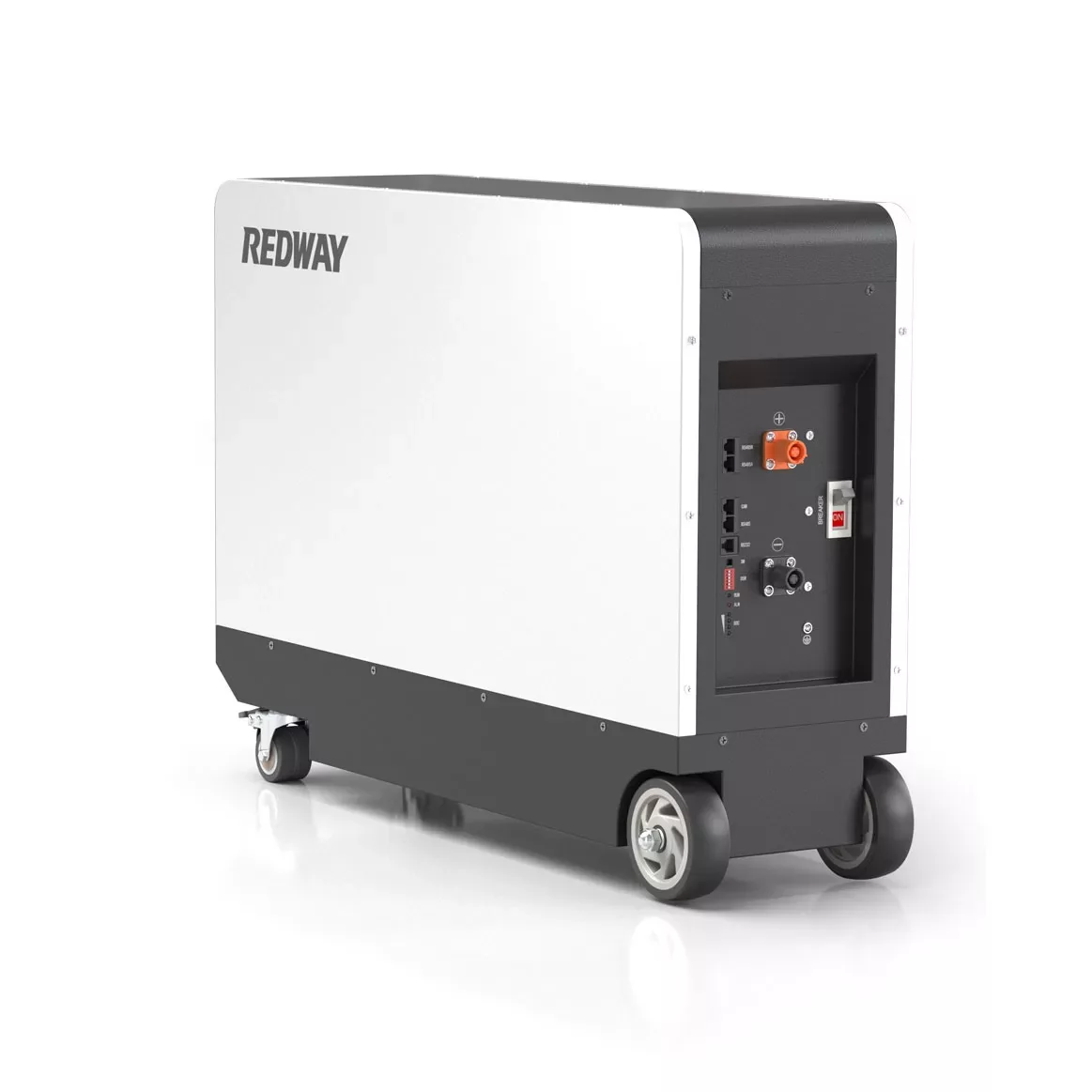

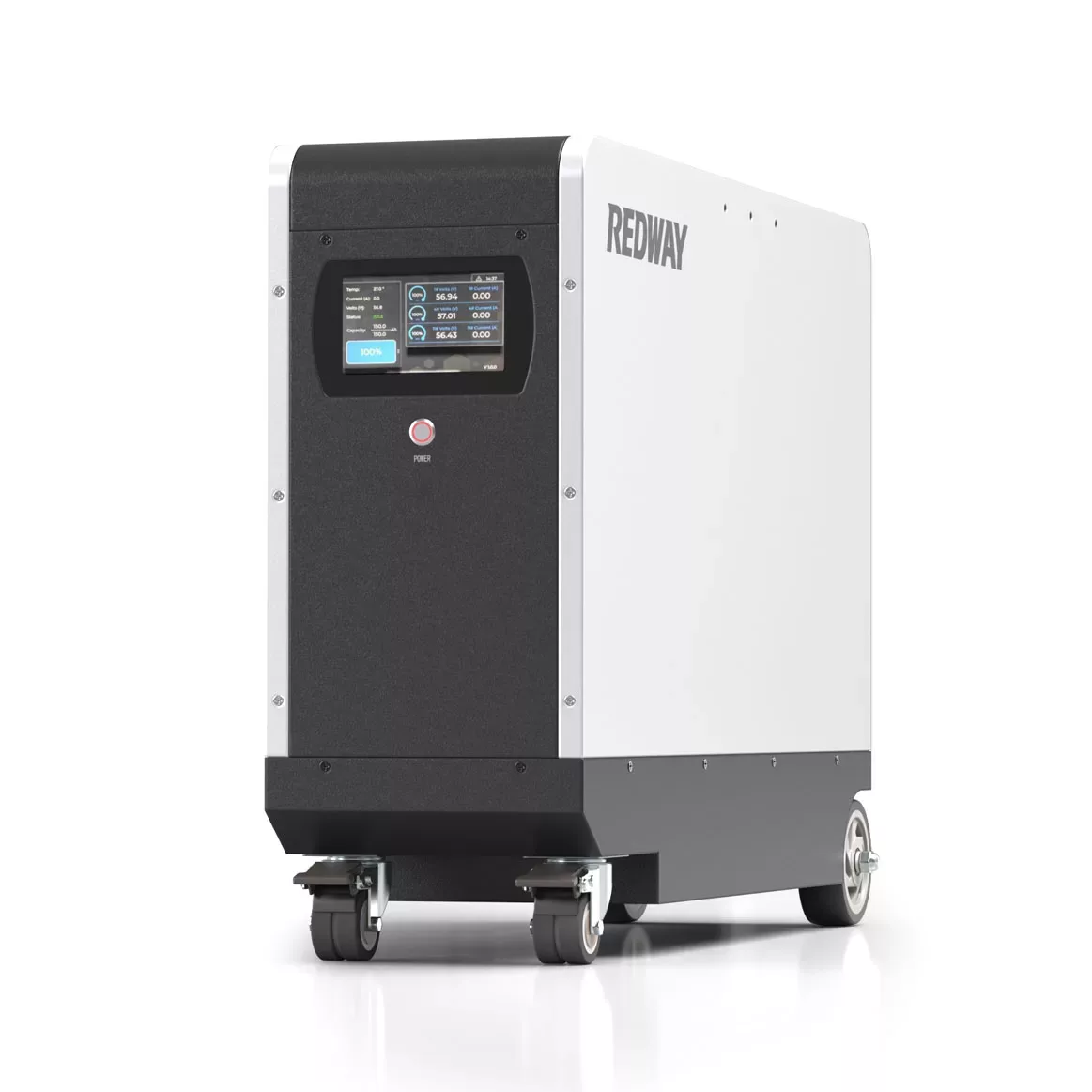

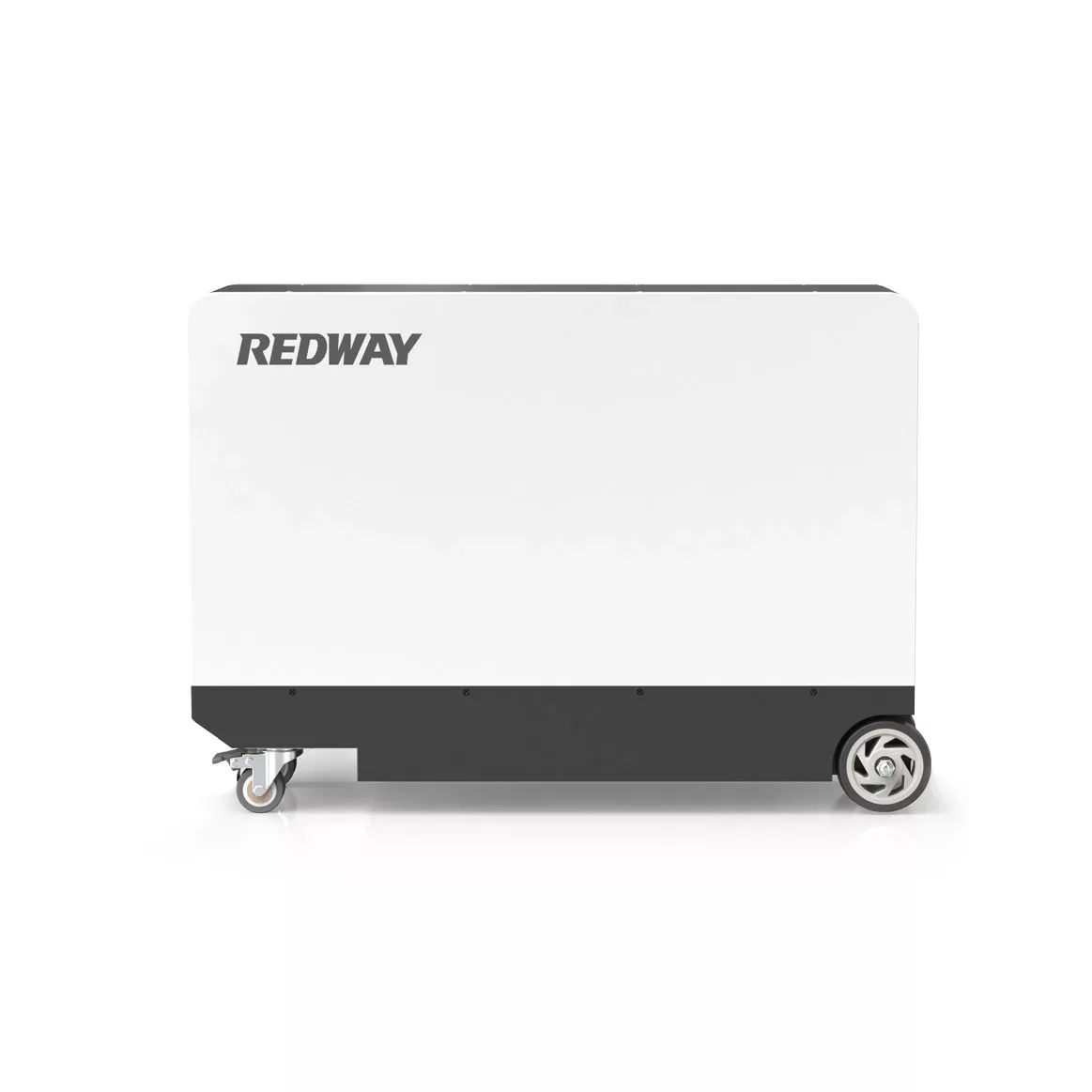

The HOME-ESS movable wheeled type energy storage lithium battery developed by Redway Battery continues to meet the needs of many application environments and families where it is inconvenient to use wall-mounted energy storage batteries. It has complete certifications. For inquiries, please Contact us.
Items | Specifications |
---|---|
Cell Type | LiFePO4 |
Nominal Voltage | 51.2V |
Battery Capacity | 184Ah |
Nominal Energy | 9.42kWh |
Dimension [L x W x H] | 770 x 220 x 542 mm 30.2 x 8.7 x 21.3 in |
Weight | 80kg 176.4 lb |
Working Voltage | 40V~58.4V |
Charge Voltage | 58.4V |
Discharge Cut-off Voltage | 40V |
Maximum Charge Current | 180A Continuous |
Maximum Discharge Current | 180A Continuous |
Fast Charging | Supports Fast Charging |
Charging Temperature | 0~55°C 32℉~131℉ |
Discharging Temperature | -20~60°C -4℉~140℉ |
Operating Humidity Range | <30% |
Series / Parallel Number | 16S1P |
Max. Parallel Connection | 16 |
Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
Self-Discharge Rate | <3% per month |
IP Grade | IP21 / (More request) |
Battery Case | Steel |
Battery Base Wheels | 4 |
Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
Communication | RS485 / CAN |
Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LCD Screen / LED Touch Screen / APP |
Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
Color | White / Gray / Black |
Design Life | 20 Years |
Warranty | 10 Years |
User Manual | With the Battery Packaging |
Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS / (More request) |
