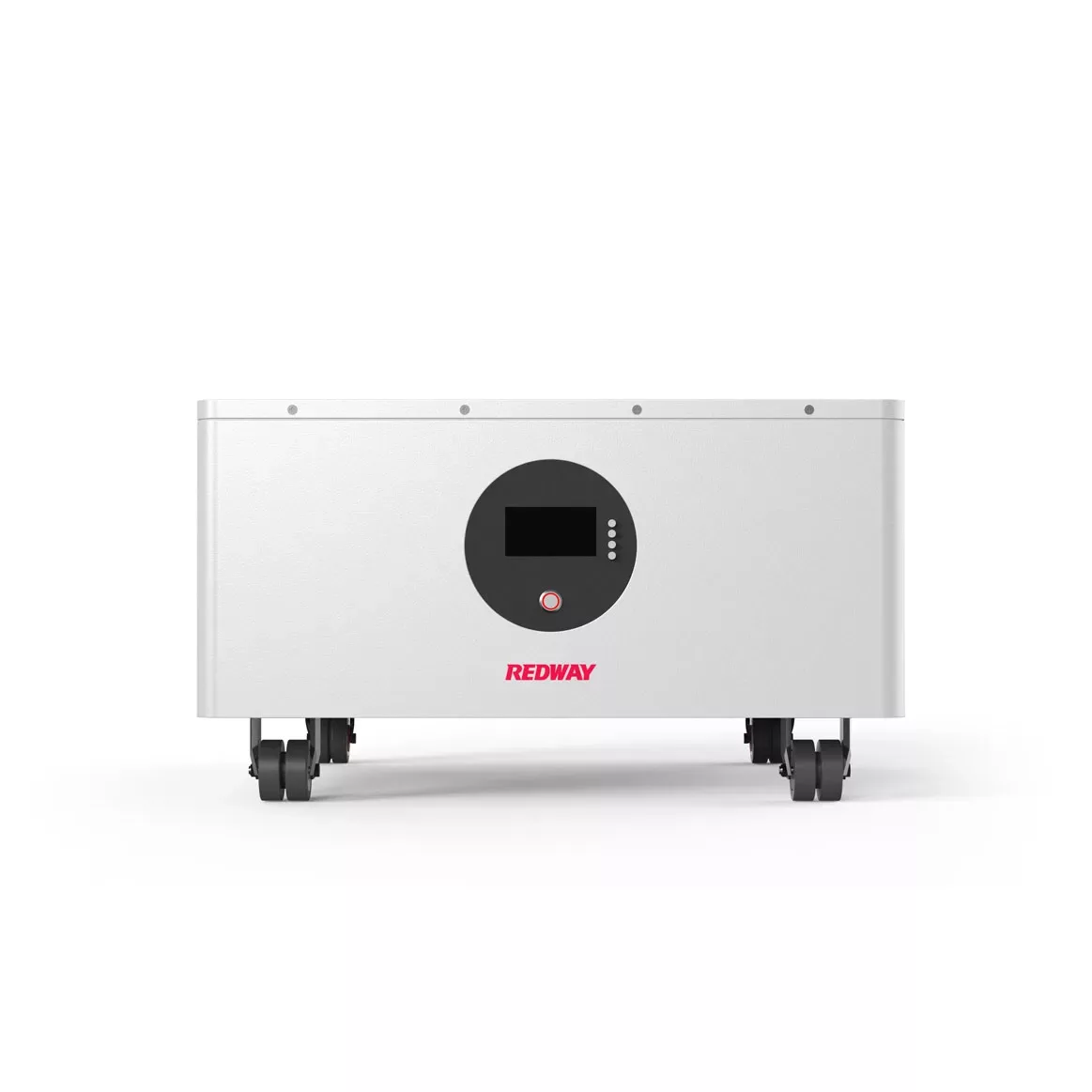

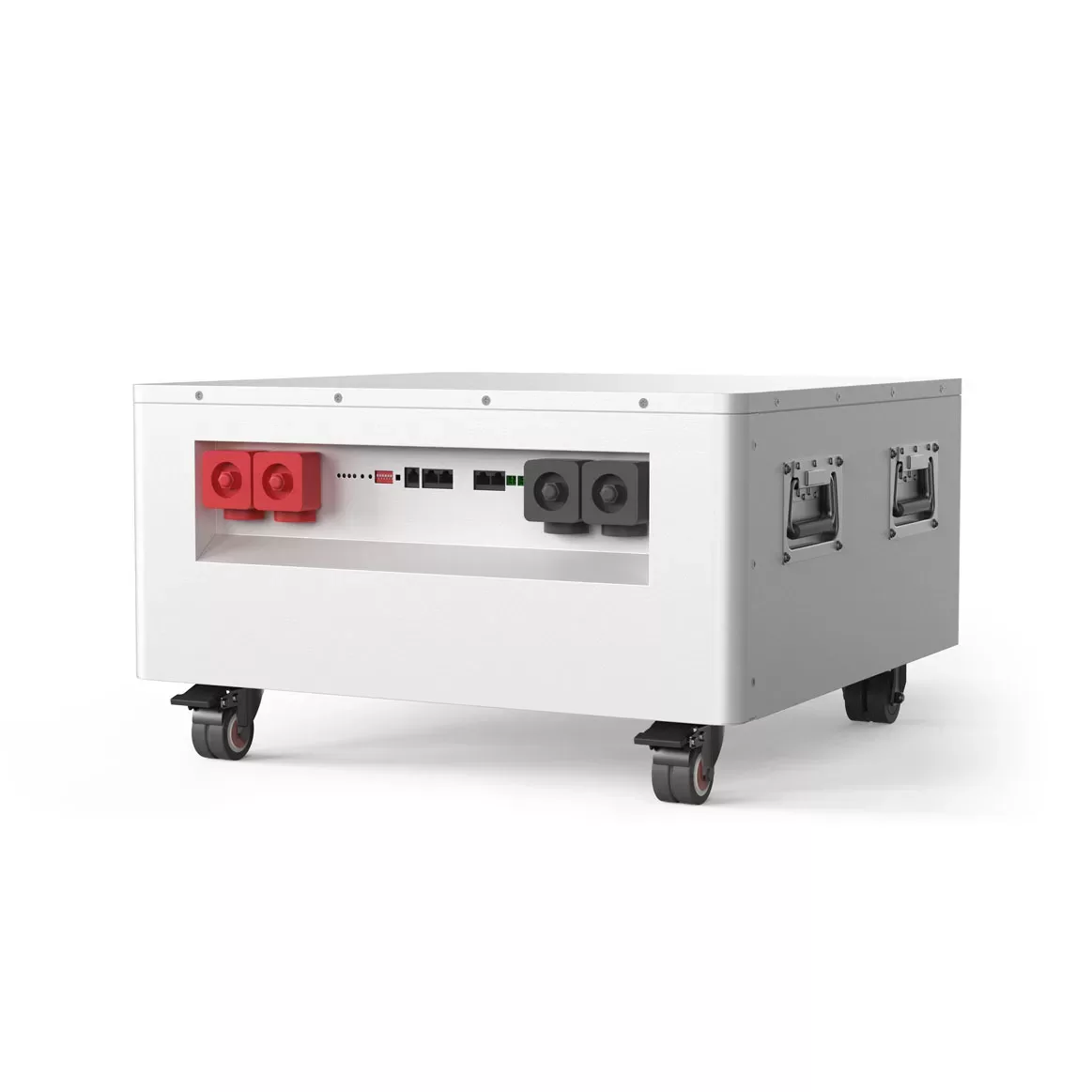

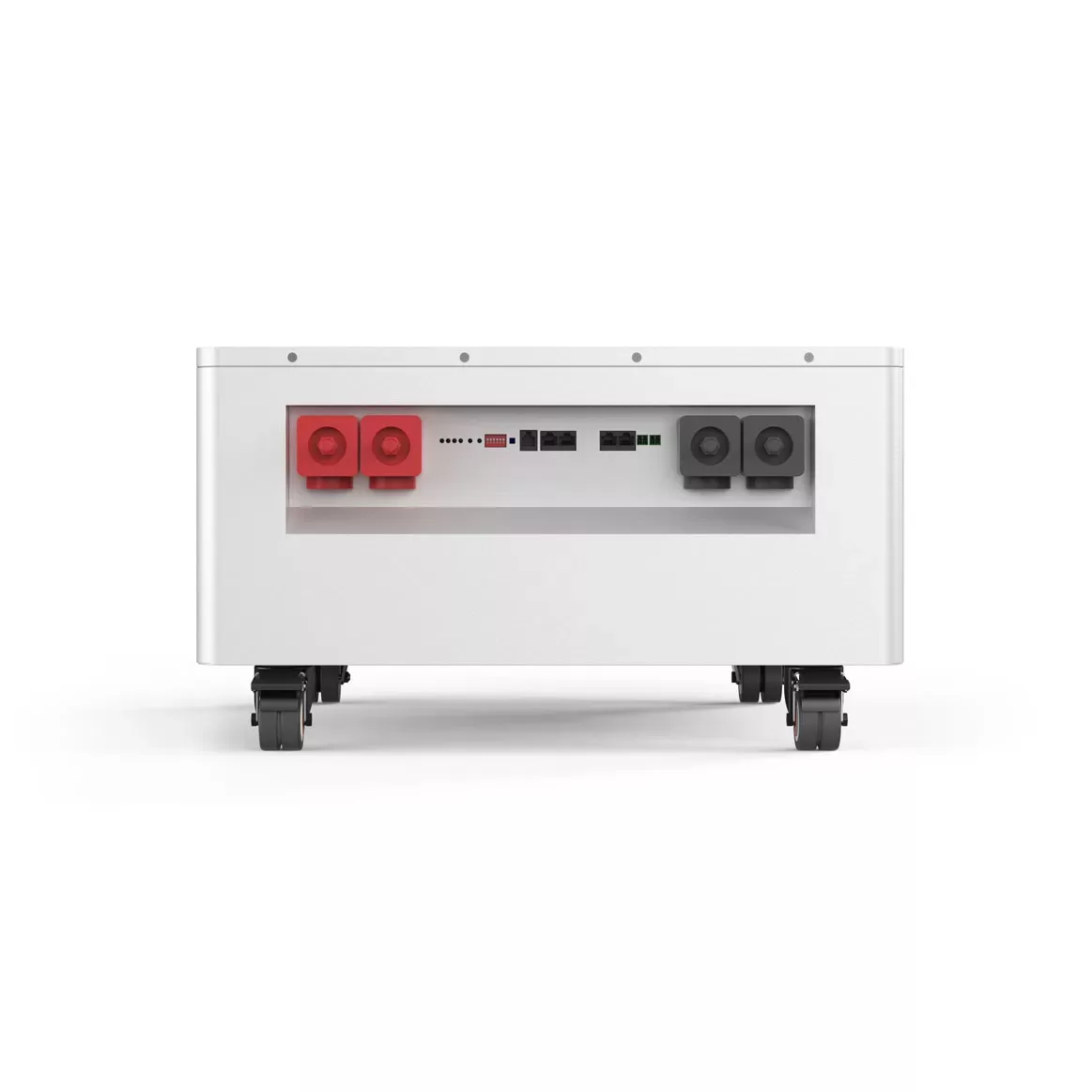

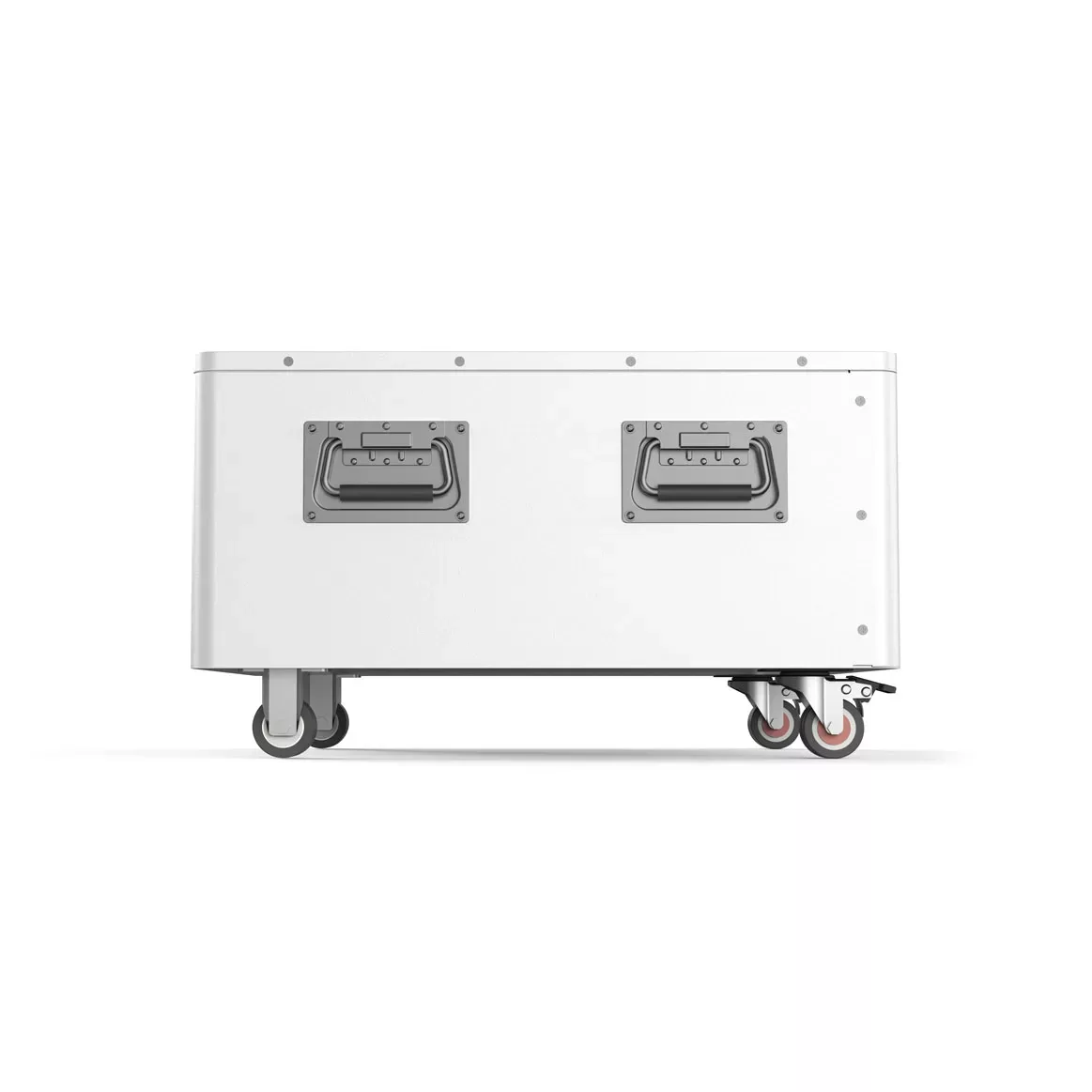

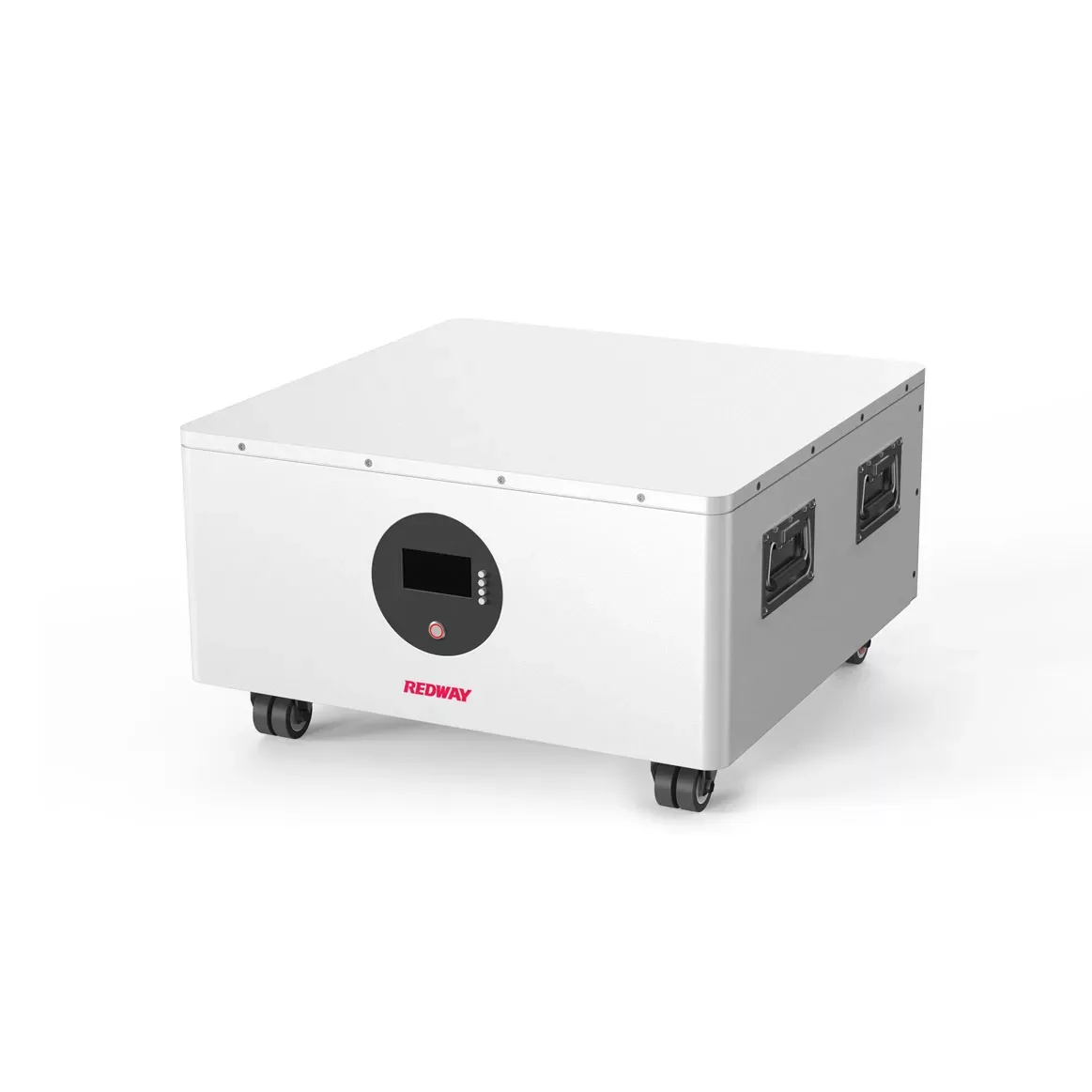

The HOME-ESS movable wheeled type energy storage lithium battery developed by Redway Battery continues to meet the needs of many application environments and families where it is inconvenient to use wall-mounted energy storage batteries. It has complete certifications. For inquiries, please Contact us.
PT48280 | Specifications |
---|---|
Cell Type | LiFePO4 |
Nominal Voltage | 48V |
Battery Capacity | 280Ah |
Nominal Energy | 13.44kWh |
Dimension [L x W x H] | 560 x 560 x 320 mm 220.5 x 22.0 x 12.6 in |
Weight | 105kg 231.5 lb |
Working Voltage | 37.5V~54.75V |
Charge Voltage | 54.75V |
Discharge Cut-off Voltage | 37.5V |
Maximum Charge Current | 200A Continuous |
Maximum Discharge Current | 200AContinuous |
Fast Charging | Supports Fast Charging |
Charging Temperature | 0~55°C 32℉~131℉ |
Discharging Temperature | -20~60°C -4℉~140℉ |
Operating Humidity Range | <30% |
Series / Parallel Number | 15S1P |
Max. Parallel Connection | 16 |
Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
Self-Discharge Rate | <3% per month |
IP Grade | IP21 / (More request) |
Battery Case | Steel |
Battery Base Wheels | 4 |
Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
Communication | RS485 / CAN |
Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LED Touch Screen / APP |
Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
Color | White / Gray / Black |
Design Life | 20 Years |
Warranty | 10 Years |
User Manual | With the Battery Packaging |
Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS / (More request) |
