“24V 100A EU Lithium Battery (Thin Size)” has been added to your cart. View cart
24V 200Ah Lithium Battery factory manufacturer oem RV marine boat lifepo4
24V 200Ah Lithium Battery factory manufacturer oem RV marine boat lifepo4
24v 100ah lifepo4 battery redway manufacturer
24V 200Ah Lithium Battery factory manufacturer oem RV marine boat lifepo4
24v 200ah lifepo4 battery redway factory manufacturer
Watch video
Click to enlarge
24V 200Ah Lithium Battery factory manufacturer oem RV marine boat lifepo4
24V 200Ah Lithium Battery factory manufacturer oem RV marine boat lifepo4
24v 100ah lifepo4 battery redway manufacturer
24V 200Ah Lithium Battery factory manufacturer oem RV marine boat lifepo4
24v 200ah lifepo4 battery redway factory manufacturer
Home 24V LiFePO4 Batteries 24V 200Ah Lithium Battery
24V 150Ah Lithium Battery factory manufacturer oem RV marine boat
24V 150Ah Lithium Battery $1.00
Back to products
36V 50Ah Lithium Battery factory manufacturer oem redway
36V 50Ah Lithium Battery

24V 200Ah Lithium Battery

$1.00

• BCI Group Size: Group 8D
• Cell: LiFePO4
• MOQ: 5
• Redway Factory Daily Production Capacity: 2000 PCS
• Customizable / OEM / ODM: Yes
• Factory: Redway Huizhou
• Delivery Terms: FOB, EXW, CIF
• Payment: T/T, L/C, PayPal
• Sea / Air / Land Shipment: 10FT, 20FT, 40FT, 60FT

Category: 24V LiFePO4 Batteries Tags: 24v battery for motors, 24v rechargeable battery
Share:
  • Description
  • SPECS
  • FAQs
Description

The 24V 200Ah LiFePO4 battery stands as a premier choice for those seeking a reliable, high-capacity energy storage solution. Engineered with advanced Lithium Iron Phosphate technology, this battery offers exceptional performance, longevity, and safety. With a nominal capacity of 200Ah and energy output of 5.12 KWh, it provides robust power for a wide array of applications, including RVs, marine systems, off-grid setups, and emergency power supplies. Its durable ABS plastic shell and IP65 rating ensure resilience against harsh environmental conditions.

Designed for versatility, this battery supports various current ratings and temperature ranges, making it ideal for both hot and cold climates. Enhanced with a sophisticated Battery Management System (BMS), it protects against overcharge, over-discharge, and short circuits, while offering a cycle life that exceeds 6,000 cycles at 80% depth of discharge. Whether you are equipping a vehicle, a boat, or a home energy system, this LiFePO4 battery delivers consistent, reliable power and longevity.

Top 5 Selling Points

  1. High Capacity and Efficiency: With a substantial 200Ah capacity and 5.12 KWh energy output, this battery ensures reliable power for a range of demanding applications.
  2. Durability and Safety: Featuring an IP65 rating and a robust ABS plastic shell, it withstands environmental challenges and includes comprehensive safety protections through an advanced BMS.
  3. Long Cycle Life: Offering over 6,000 cycles at 80% depth of discharge, it provides long-term reliability and cost-effectiveness.
  4. Versatile Applications: Suitable for RVs, marine use, off-grid systems, and backup power, making it a flexible solution for diverse power needs.
  5. Advanced Technology: Equipped with optional upgrades such as self-heating and fast charging, as well as remote monitoring features like Bluetooth and WiFi, enhancing convenience and performance.

Contact Now

For B2B, wholesale, or OEM inquiries, please Contact Us Now to discuss how the 24V 200Ah LiFePO4 battery can meet your specific needs and to explore bulk purchasing options.

SPECS

Cell Type catl eve byd samsung sdi redway

LiFePO4 (LFP)

CATL / EVE / BYD / Samsung SDI / Gotion / SVOLT / LISHEN / REPT / ANC

Nominal Voltage 25.6V
Nominal Capacity 200Ah
Nominal Energy 5120 Wh (5.12 KWh)
Dimensions [L x W x H] 523 x 269 x 218 mm
20.6 x 10.6 x 8.6 inches
BCI Group 8D
Weight 40 kg
88.18 lb
Max Charge Voltage 29.2V
Max Cut-off Discharge Voltage 20V
Max Continuous Charge Current 100A / 150A / 200A
Max Continuous Discharge Current 100A / 150A / 200A
Peak Discharge Current 110A (10s) / 160A (10s) / 210A (10s)
Internal Resistance <10 mΩ
Charge Temperature 0°C ~ 60°C
Discharge Temperature -20°C ~ 65°C
Max Series Connection -
Max Parallel Connection 4
Cycle Life >6,000 Cycles (80% DOD)
>15,000 cycles (60% DOD)
Self-Discharg <2% per month
IP Rating IP65
Usage Locations RVs, Motorhome, Trailer, Van, Marine Boat, Fishing Boat, Yacht, Trolling Motor, UPS, Backup Power Supply, Off-Grid Living, Off-Grid Devices, Hybrid Lifestyle, Solar ESS System, HESS, Home ESS, Outdoor Living, Camping, LED Lighting, Security Camera Power Supply Box, Surveillance System, Emergency System, etc.
Battery Shell ABS Plastic
BMS Protection ESS bms brands, redway
JBD / DALY / DAREN / Advanced Smart BMS:
Cell Automatic Balance, Over Current, Over Charge, Over Discharge, Overload, Over Voltage, Low Voltage, Short Circuit, Over Temperature, Low Temperature, etc.
Optional Upgrades Self-Heating, Fast Charger, Bluetooth, APP, WiFi, 4G, GPS, RS485, RS232, CAN-bus, Modbus, TCP/IP, Active Balance, LCD Screen, LED Indicator Light, Solar Panel, Solar Controllers, MPPT, Inverters, TACP, Fan, Heatsink, Circuit Breaker, Switch, Anti-Theft, etc.
Terminals M8 / T8~T20
Charger (Optional) redway lfp charger fast charingredway lfp charger fast charing
Anderson Connector (Optional) Anderson ConnectorAnderson Connector
Aviation Connector (Optional) aviation redway aviation redway
Bluetooth APP Demo (Android / iOS) redway battery app bluetooth wifi 4g redway battery app bluetooth wifi 4g
Design Life 10 Years
Warranty 3 Years
User Manual Yes
Silkscreen Yes
Label Design / Printing Yes
Laser Logo Yes
Certifications UN38.3 / UN3480 / MSDS / UL 1642 (Cells) / IEC 62133 (Cells) / ISO 9001 (Factory)
Redway Lithium Battery Pack Factory redway lithium battery factory redway lithium battery factory redway lithium battery factory



FAQs

1. What is the nominal voltage of the 24V 200Ah LiFePO4 battery?

The nominal voltage of this battery is 25.6V.

2. How long does the battery last?

The battery has a cycle life of over 6,000 cycles at 80% depth of discharge and over 15,000 cycles at 60% depth of discharge.

How long does the battery last? redway 24v 200ah lithium battery

3. What is the maximum continuous charge current?

The battery supports maximum continuous charge currents of 100A, 150A, or 200A.

4. Can this battery be used in marine applications?

Yes, it is suitable for marine applications, including boats and yachts, due to its IP65 rating and robust design.

5. What is the temperature range for charging and discharging?

The battery can be charged in temperatures ranging from 0°C to 60°C and discharged in temperatures from -20°C to 65°C.

6. What safety features are included in the battery?

It includes a sophisticated Battery Management System (BMS) that provides protection against overcharge, over-discharge, short circuits, and temperature extremes.

7. Is there an optional fast charger available?

Yes, a fast charger is available as an optional upgrade to reduce charging time.

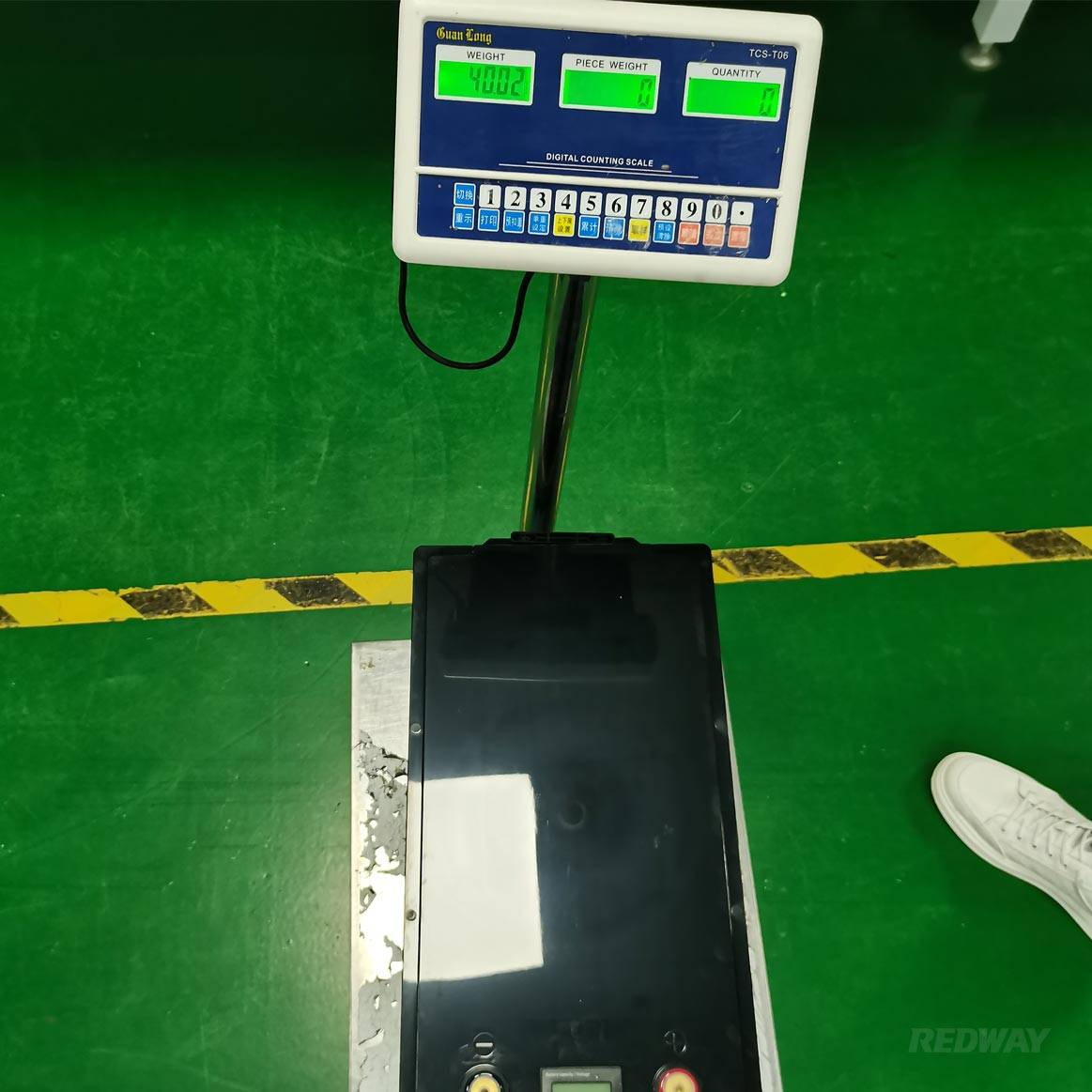

8. How much does the battery weigh?

The battery weighs approximately 40 kg (88.18 lb).

9. Can the battery be used in off-grid solar systems?

Absolutely, it is ideal for off-grid solar energy storage systems, providing reliable power in remote locations.

Can the battery be used in off-grid solar systems? redway 24v 200ah lithium battery

10. What certifications does the battery have?

The battery is certified under UN38.3, UN3480, MSDS, UL 1642 (Cells), IEC 62133 (Cells), and ISO 9001 (Factory), ensuring its quality and safety.
