How does a self-heating rack battery behave in a cold cabinet?

Direct answer: Redway’s rack modules list charging from 0°C and discharging from -20°C, so below freezing the BMS should block charging until the cells are warm enough. Self-heating, listed as an optional upgrade on these models, is meant to warm the cells so charging can resume. How and when it switches on, what powers it and how much energy it uses are not published, so ask for those details in writing before relying on it.

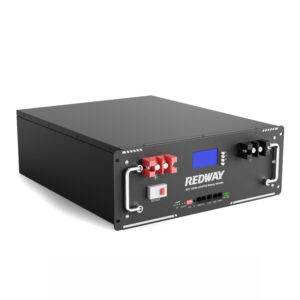

Page figures. The PM-LV51200-5U (51.2V 200Ah, 10.24 kWh), PM-LV48150-4U (48V 150Ah, 7.2 kWh) and PM-LV51150-4U (51.2V 150Ah, 7.68 kWh) list charge 0°C to 60°C, discharge -20°C to 60°C, IP21 and self-heating among optional upgrades.

How heating usually works. In general, a self-heating battery uses a heater controlled by the BMS that switches on when cell temperature is below a set point and a charge source is present, and switches off once the cells are warm. Some designs can also draw heater power from the battery itself. Which approach a specific Redway model uses is not stated on the pages.

What it means in practice. On a cold morning, solar or grid charging may not start at once; the system may first spend energy on heating. If heating can draw from the battery, a long cold spell without charge could use stored energy. A self-heated battery still discharges within its listed -20°C limit.

Questions to ask. At what cell temperature does heating start and stop? What powers it? What is the heater power and typical warm-up time? Does the inverter see a heating state or alarm? Is heating available on the exact model and voltage you are ordering, and how does it affect warranty?

Other ways to keep it warm. Insulating the cabinet, placing it against an inside wall or adding a thermostatically controlled cabinet heater may be simpler in some sites. Do not wrap modules in insulation that blocks their ventilation or cable access.

After a cold snap. Check the alarm log for low-temperature events, confirm that charging resumed, and look at firmware notes for heating behaviour. For general placement, see indoor installation questions and annual inspection.
