What should you do when the lithium battery protection trips on a steep golf course hill?

Direct answer: A stop on a climb that clears after a pause usually means the battery management system (BMS) protected the pack from too much current, too low a voltage under load, or high temperature. Do not keep restarting on the slope. Get the cart to a safe place, note the alarm, check state of charge and connections, and compare the cart controller’s current draw with the pack’s continuous and peak ratings. Then change the pack, the controller setting or the route, not just the reset habit.

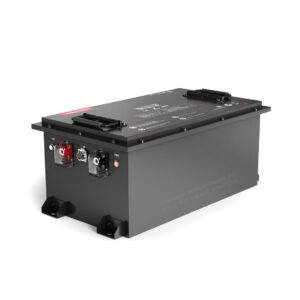

What the pack allows. Redway’s 48V 100Ah packs show why the label alone is not enough: the S51105L lists 230A continuous and 250A peak for 10s, the S51105P lists 150A continuous and 315A for 30s, and the 48V 160Ah S51160P lists 160A continuous and 315A for 30s. A climb that takes a minute at high current can exceed a short peak window even when the peak figure looks large.

Read the event. If the pack or app records alarms, note whether it was over-current, under-voltage, cell imbalance or temperature, and at what state of charge. An under-voltage trip on a nearly empty pack is a charging or range problem. An over-current trip at a high state of charge points to the controller drawing more than the pack’s rating. Our post on BMS alarms explains the general steps.

Check the cart. Ask the cart dealer what current the controller can draw and for how long; aftermarket or speed-modified controllers often draw more than standard ones. Check tyre pressure, brakes and load, because dragging brakes or extra passengers on a grade raise current. Inspect main cables and lugs for heat marks, since a poor connection adds voltage drop and heat.

Reset safely. Follow the reset steps in the battery manual; some packs recover after the load is removed, others need a power switch cycle or a charger connection. Do not bypass the BMS or fit a larger fuse to stop trips. If a pack trips again after a reset, take the cart out of service and contact the supplier with the alarm details.

Choose the fix. Options are a higher-current pack, a controller current limit set within the pack’s continuous rating, or a different cart route for loaded carts on the steepest hill. Our earlier post compares standard and high-current 48V packs for new orders; this one is about diagnosing carts already on the course. Keep a short log of each trip with the hole, load, state of charge and alarm, which shows the supplier whether the pattern is current, voltage or heat.
