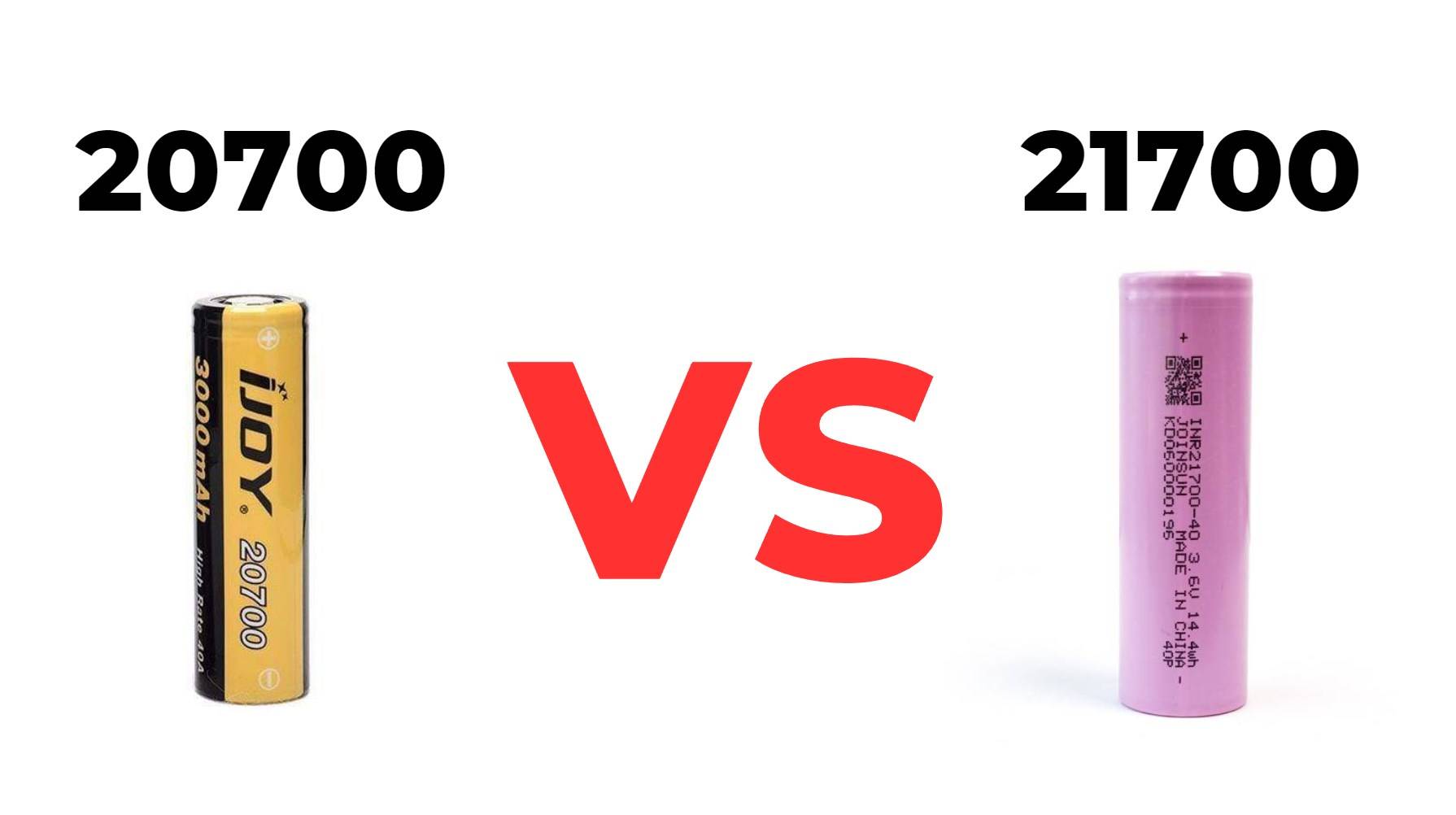

Understanding the differences between 20700 and 21700 batteries is essential for selecting the right power source for your devices. Both battery types offer distinct advantages in terms of size, capacity, and application. This comprehensive comparison will help you make an informed decision based on your specific needs.
What are the dimensions of 20700 and 21700 batteries?
The primary difference between the two battery types lies in their dimensions. The 20700 battery has a diameter of approximately 20 mm and a length of 70 mm. In contrast, the 21700 battery features a slightly larger diameter of 21 mm, while maintaining the same length of 70 mm. This minor difference in size can impact compatibility with various devices.
| Battery Type | Diameter (mm) | Length (mm) |
|---|---|---|
| 20700 | 20 | 70 |
| 21700 | 21 | 70 |
How do the capacities of 20700 and 21700 batteries compare?
In terms of capacity, 21700 batteries generally offer higher energy storage than 20700 batteries due to their larger size. While a typical 20700 battery has a capacity ranging from 3000 mAh to about 4250 mAh, a 21700 battery typically ranges from 4000 mAh to around 5000 mAh. This increased capacity allows devices powered by 21700 cells to run longer between charges.
| Battery Type | Typical Capacity (mAh) |
|---|---|
| 20700 | 3000 – 4250 |
| 21700 | 4000 – 5000 |
What are the typical applications for each battery type?
Both battery types find applications across various industries. The 20700 battery is often used in mid-range devices such as power tools and some vaping devices, while the 21700 battery is favored for high-performance applications like electric vehicles, high-wattage vape mods, and advanced electronics due to its higher capacity and energy density.
| Battery Type | Typical Applications |
|---|---|
| 20700 | Power tools, mid-range vaping devices |
| 21700 | Electric vehicles, high-wattage electronics |
How does the energy density of these batteries differ?
Energy density refers to how much energy can be stored relative to the weight or volume of the battery. The 21700 battery typically has an energy density that is about 33% greater than that of the 20700 battery. This means that for similar volumes, a 21700 battery can deliver more power, making it more efficient for demanding applications.
| Energy Density Comparison | Energy Density (Wh/kg) |
|---|---|
| 20700 | ~250 |
| 21700 | ~330 |
What is the history behind the development of these battery types?
The development of lithium-ion batteries has evolved significantly over time. The 18650 battery, introduced earlier, became widely popular due to its compact size and efficiency. As technology advanced, manufacturers sought to create larger cells that could store more energy without significantly increasing size. The 20700 battery was introduced as an intermediate step before manufacturers developed the even larger 21700 battery, which was designed in collaboration with Tesla and Panasonic specifically for electric vehicles.
| Battery Type | Introduction Year | Key Development |
|---|---|---|
| 18650 | Early ’90s | First widely used lithium-ion cell |
| 20700 | Mid ‘2010s | Intermediate size with higher capacity |
| 21700 | Late ‘2010s | Designed for electric vehicles |
How do the performance characteristics of 20700 and 21700 batteries compare?
In terms of performance, both types exhibit excellent discharge rates suitable for high-drain applications. However, due to their larger size, 21700 batteries often provide better performance under load compared to 20700 batteries, particularly in applications requiring sustained power output.
| Performance Characteristic | Comparison |
|---|---|
| Discharge Rate | Higher in 21700 compared to 20700 |
| Load Handling | Better sustained performance in high-drain applications |
What advantages do larger batteries offer for electronic devices?
Larger batteries like the 21700 provide several advantages:
- Longer Runtime: Higher capacity means devices can operate longer without needing a recharge.
- Higher Power Output: They can deliver more power at once, making them suitable for demanding applications.
- Reduced Weight in Multi-Battery Configurations: Using fewer but larger cells can reduce overall weight while maintaining power output.
| Advantage | Description |
|---|---|
| Longer Runtime | More stored energy allows extended use |
| Higher Power Output | Suitable for high-drain devices |
| Reduced Weight | Fewer cells needed can lower total weight |
Why is heat dissipation a concern with larger batteries?
Heat dissipation becomes increasingly important as battery sizes increase because larger cells can generate more heat during operation, especially under heavy loads. If not managed properly, excessive heat can lead to reduced efficiency, shorter lifespan, or even safety hazards such as thermal runaway. Manufacturers often incorporate design features like venting or cooling systems to mitigate this risk.
| Heat Management Aspect | Importance |
|---|---|
| Heat Generation | Increases with higher capacity |
| Cooling Solutions | Essential to prevent overheating |
Buy Wholesale Battery Tips
For those interested in purchasing bulk or OEM orders, partnering with reputable manufacturers like Redway Battery, known for their expertise in lithium technology over their 13 years in the industry, is essential. They provide comprehensive support throughout the ordering process, ensuring high-quality products tailored to specifications. To make OEM orders successfully:
- Clearly identify your requirements.
- Contact Redway Battery’s sales team with your specifications.
- Discuss customization options based on your needs.
- Finalize agreements on pricing and delivery timelines.
Industrial News
The market for lithium-ion batteries continues to expand as demand grows across various sectors such as electric vehicles and consumer electronics. Recent advancements focus on improving energy density and safety features in newer models like the 21700, positioning them as preferred choices over older technologies like the 18650 and 20700.
Redway Expert Views
“Choosing between different lithium-ion battery sizes like the 20700 and 21700 can significantly impact device performance,” states an expert from Redway Battery. “Understanding their specifications helps users select optimal solutions tailored to their specific needs.”
FAQ Section
- What is the main difference between a 20700 and a 21700 battery?
The primary difference lies in their dimensions; a 21700 has a slightly larger diameter than a 20700, allowing it to hold more energy. - Which battery type offers better performance?
Typically, 21700 batteries provide better performance due to their higher capacity and energy density compared to 20700 cells. - Are there specific applications suited for each type?
Yes, 20700 cells are often used in mid-range devices while 21700 cells are preferred for high-performance applications like electric vehicles.
