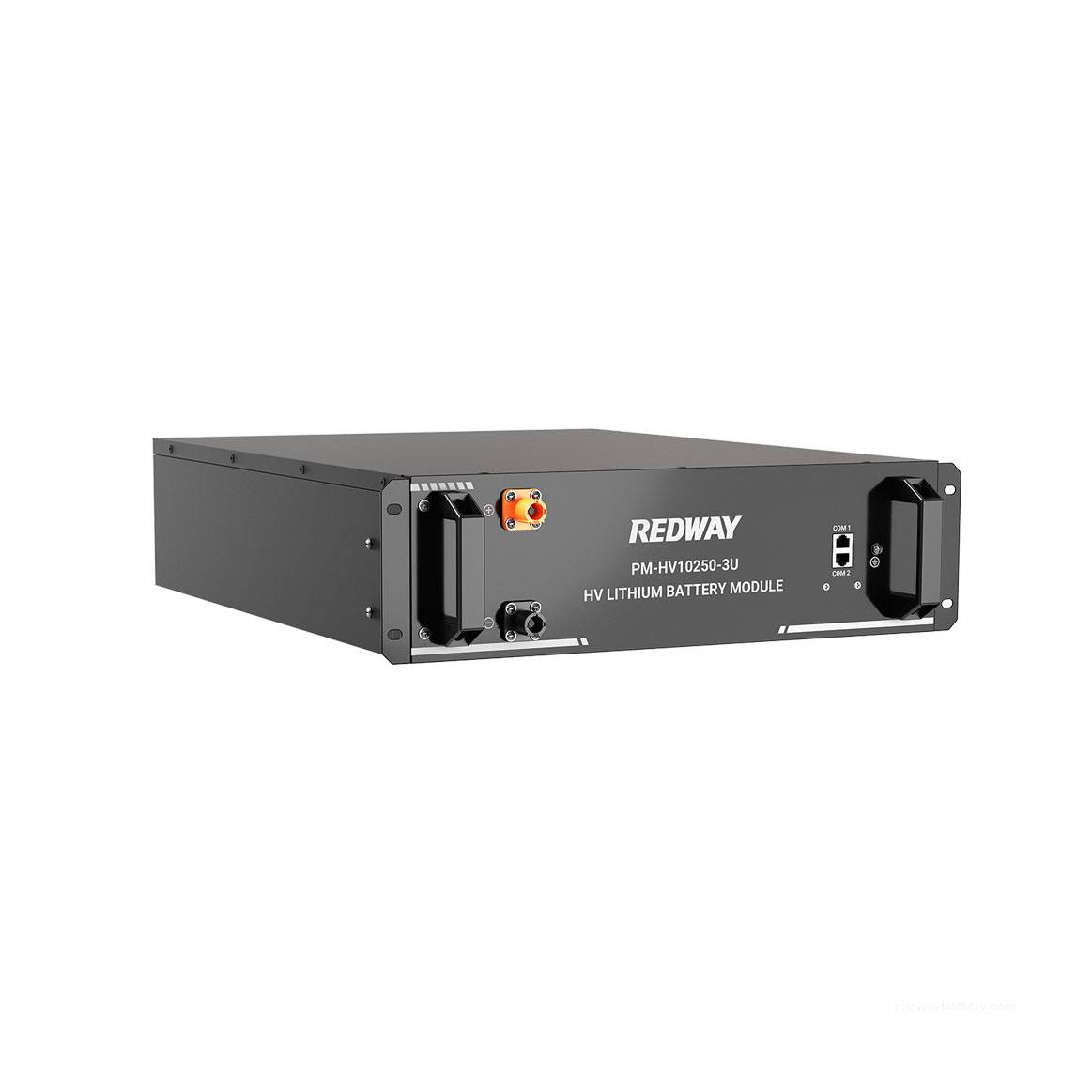

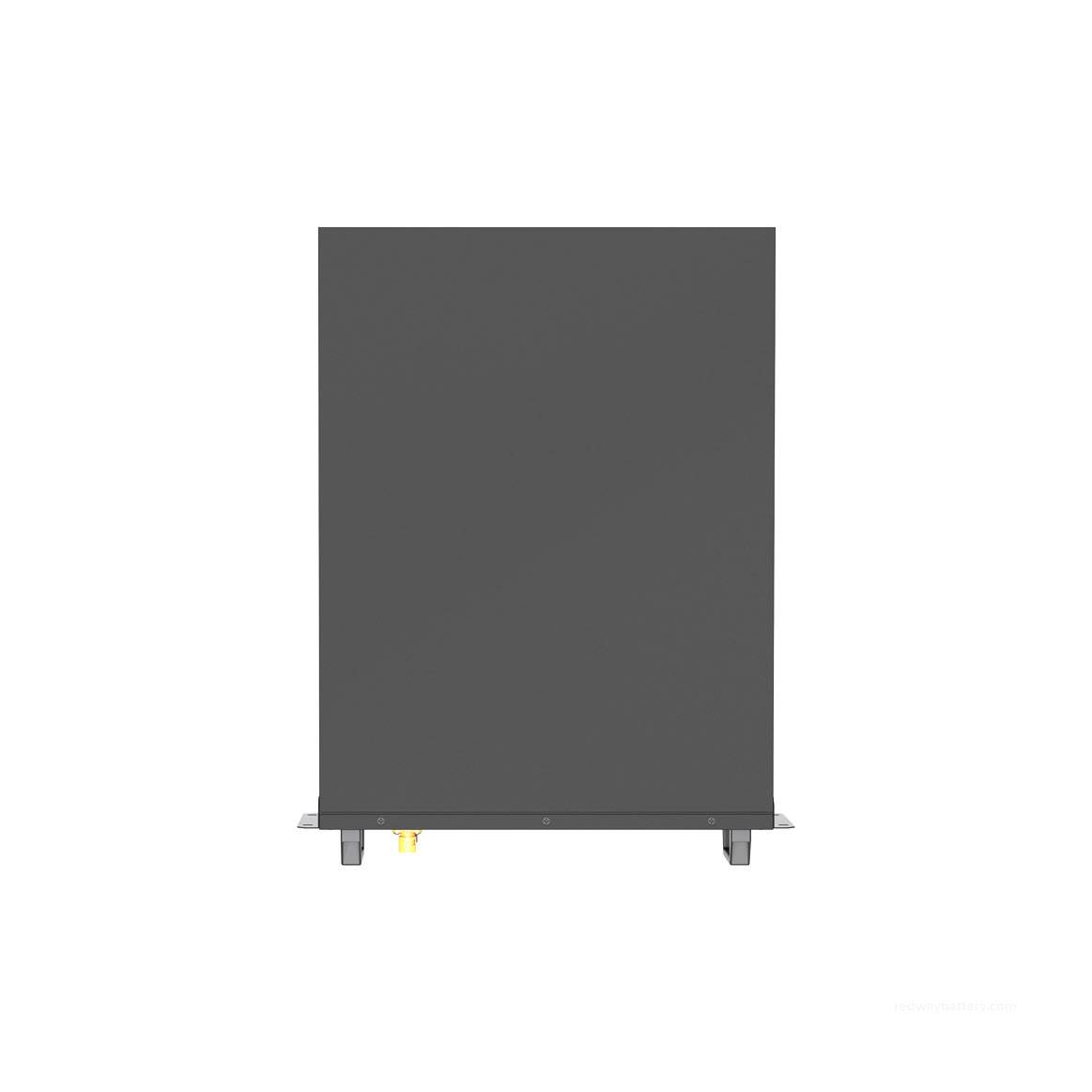

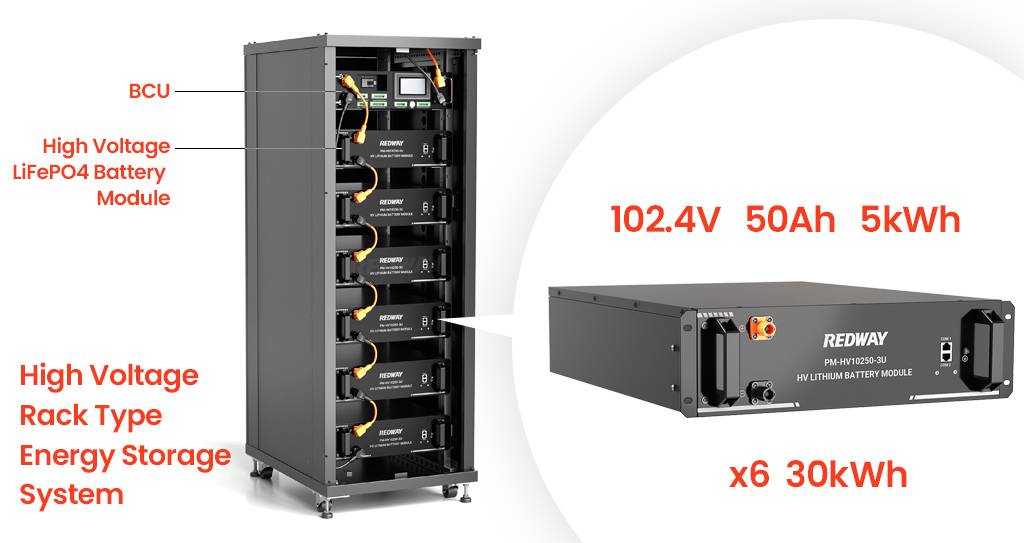

Redway Battery‘ s 100V 5kWh High Voltage Energy Storage Battery Module and 30kWh Rack System. This is a rack-type High Voltage lithium battery module and Rack System (with BCU) used in commercial, server room, community, and household On-Grid, Off-Grid and Hybrid energy storage system and rack system. It is highly safe, with a low risk of catching fire and heat resistance, has a longer cycle life compared to traditional lead-acid batteries, and offers extensive parallel scalability. This module can be directly connected in series for easy stacking or integrated into a cabinet to meet the diverse needs of different regions and countries users. Inquriy and Contact us.

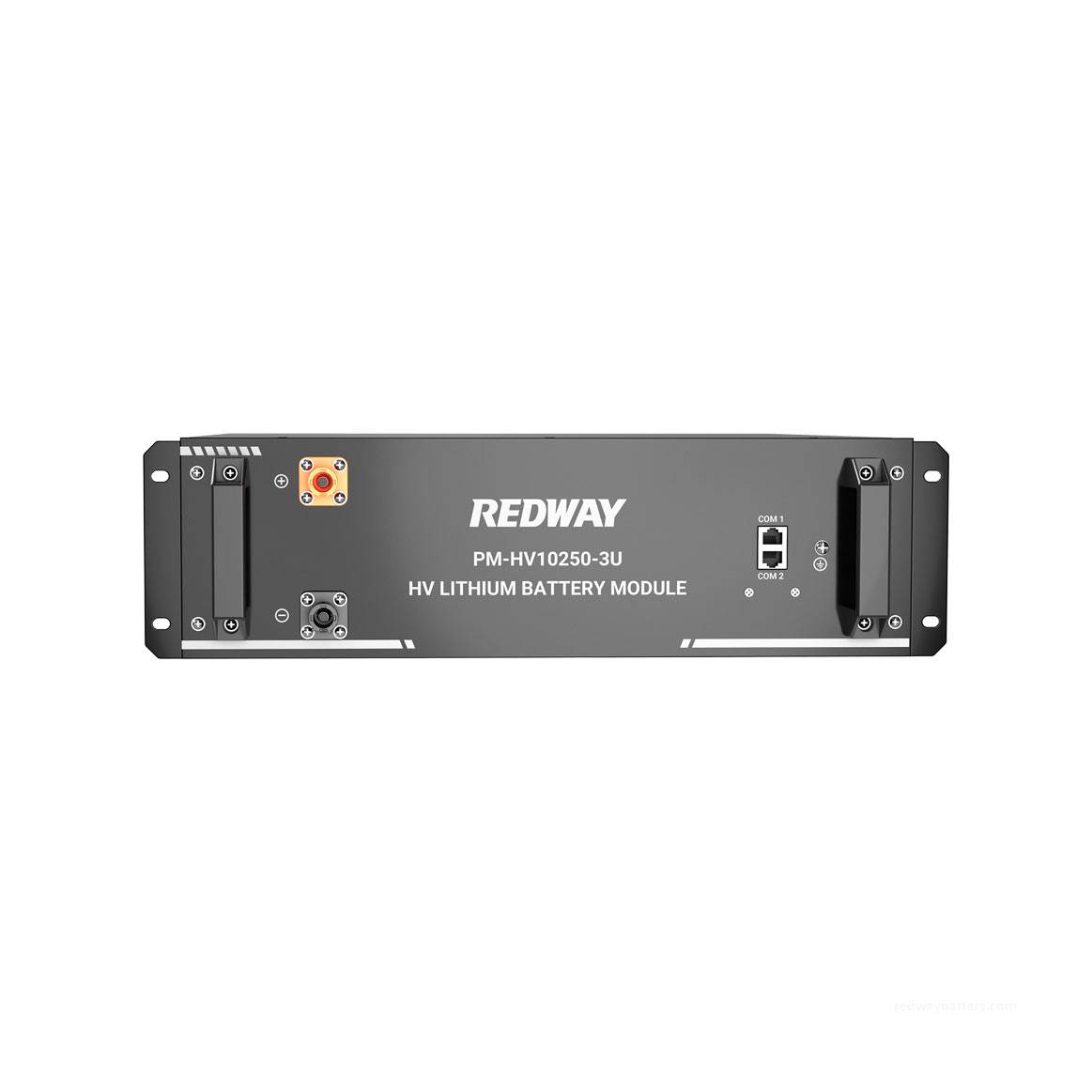

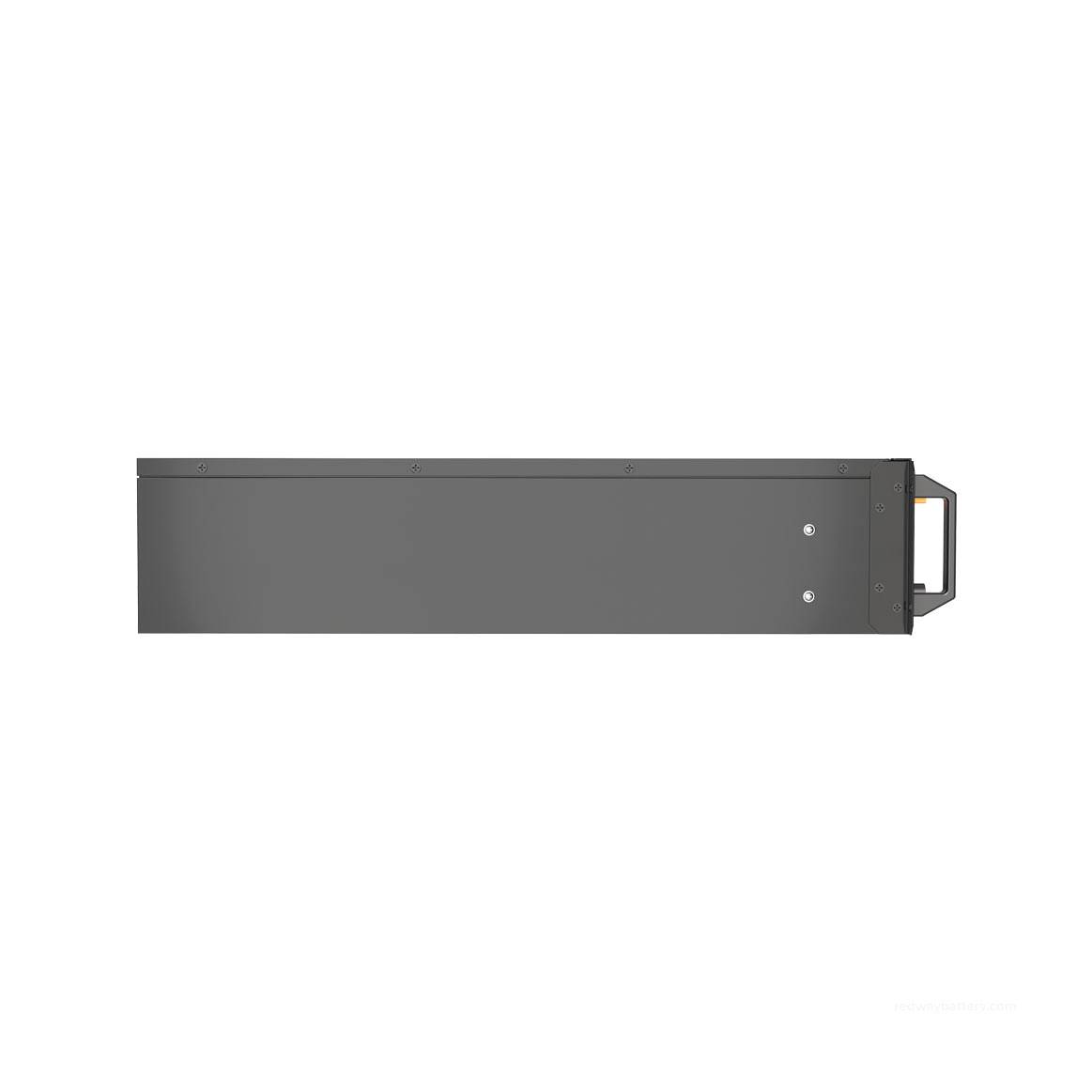

| Battery Module: PM-HV10250-3U | Specifications |
|---|---|
| Cell Type | LiFePO4 |
| Nominal Voltage | 102.4V |
| Battery Capacity | 50Ah |
| Nominal Energy | 5.12kWh |
| Dimension [L x W x H] | 440 x 580 x 132 mm 17.3 x 22.8 x 5.2 in |
| Weight | 43kg 94.8 lb |
| Working Voltage | 37.5V~54.75V |
| Charge Voltage | 54.75V |
| Discharge Cut-off Voltage | 37.5V |
| Maximum Charge Current | 50A Continuous |
| Maximum Discharge Current | 50A Continuous |
| Standard Charging / Discharging Current | 25A |
| Maximum Charging / Discharging Current | 50A |
| Fast Charging | Supports Fast Charging |
| Charging Temperature | 0~60°C 32℉~140℉ |
| Discharging Temperature | -20~60°C -4℉~140℉ |
| Operating Humidity Range | <30% |
| Series / Parallel Number | 32S1P |
| Max. Parallel Connection | 6 |
| Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
| Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
| Self-Discharge Rate | <3% per month |
| IP Grade | IP20 / (More request) |
| Battery Case | Iron (Surface: black waterproof baking paint) |
| Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
| Communication | RS485 / CAN |
| Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LCD Screen / LED Touch Screen / APP |
| Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
| Pros | Support Off-Grid and Hybrid working mode, compact design, wall and floor type |
| Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
| Connector | Quick Plug Connector |
| Design Life | 20 Years |
| Warranty | 10 Years |
| User Manual | With the Battery Packaging |
| Certifications | UL /Â IEC / UN38.3 / MSDS / (More request) |

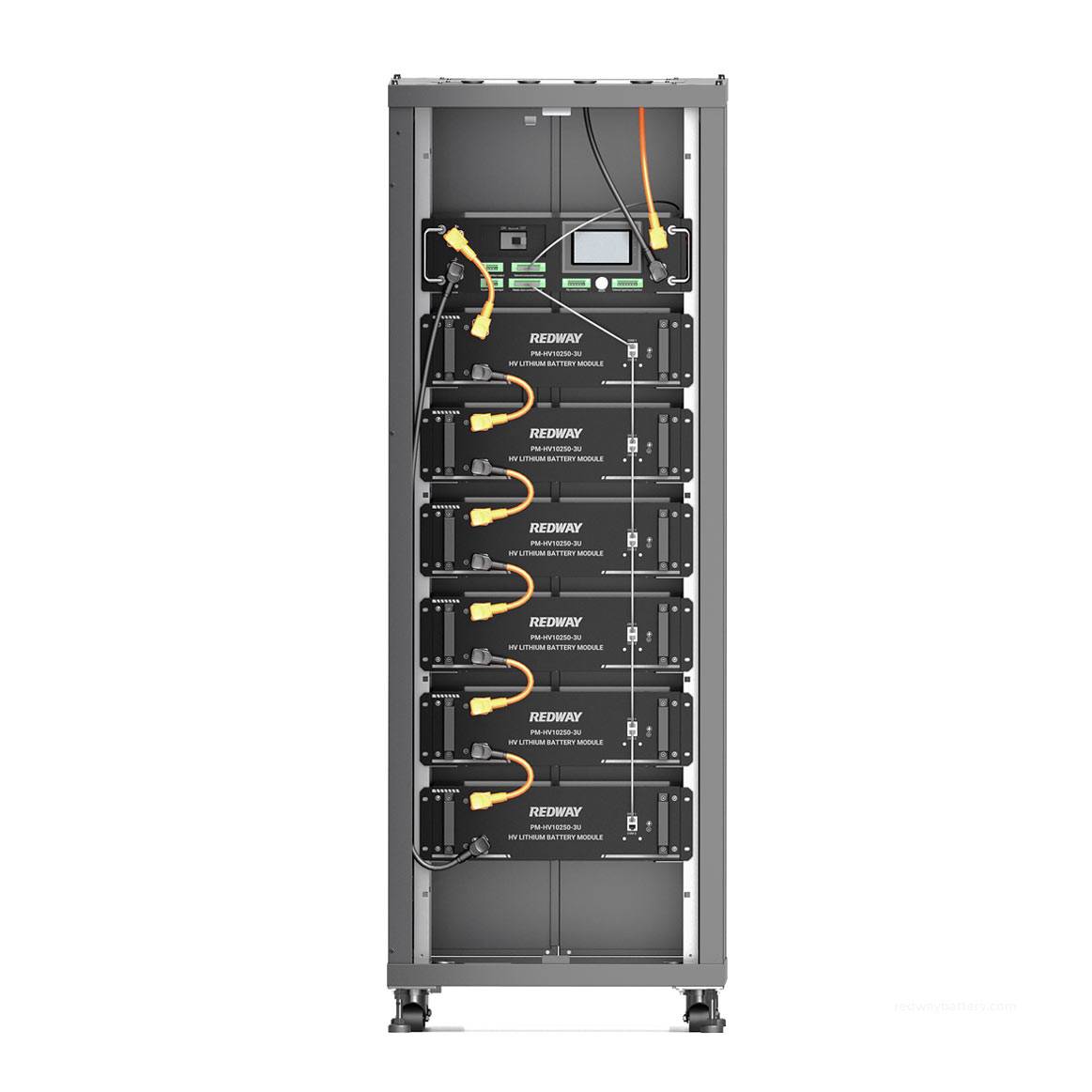

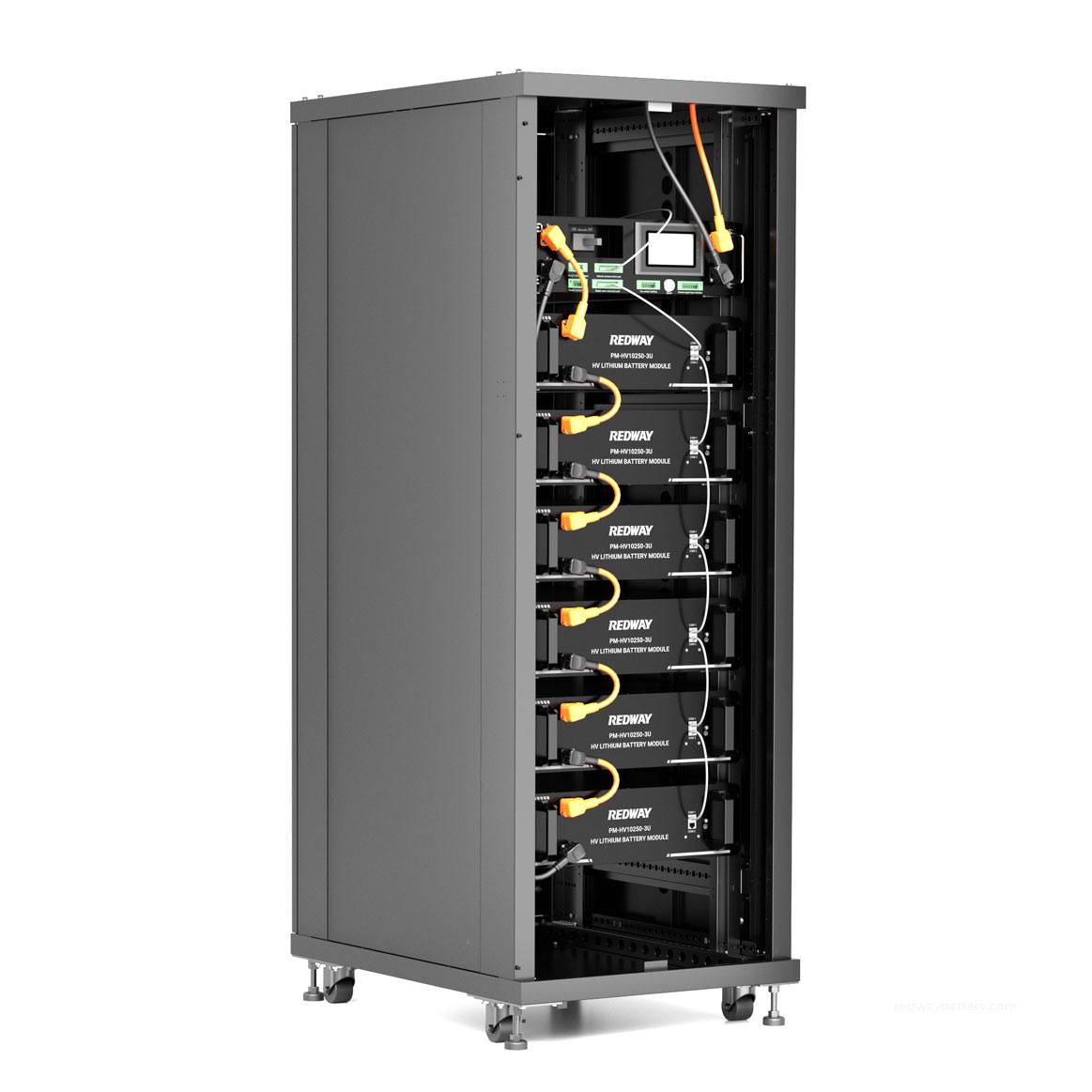

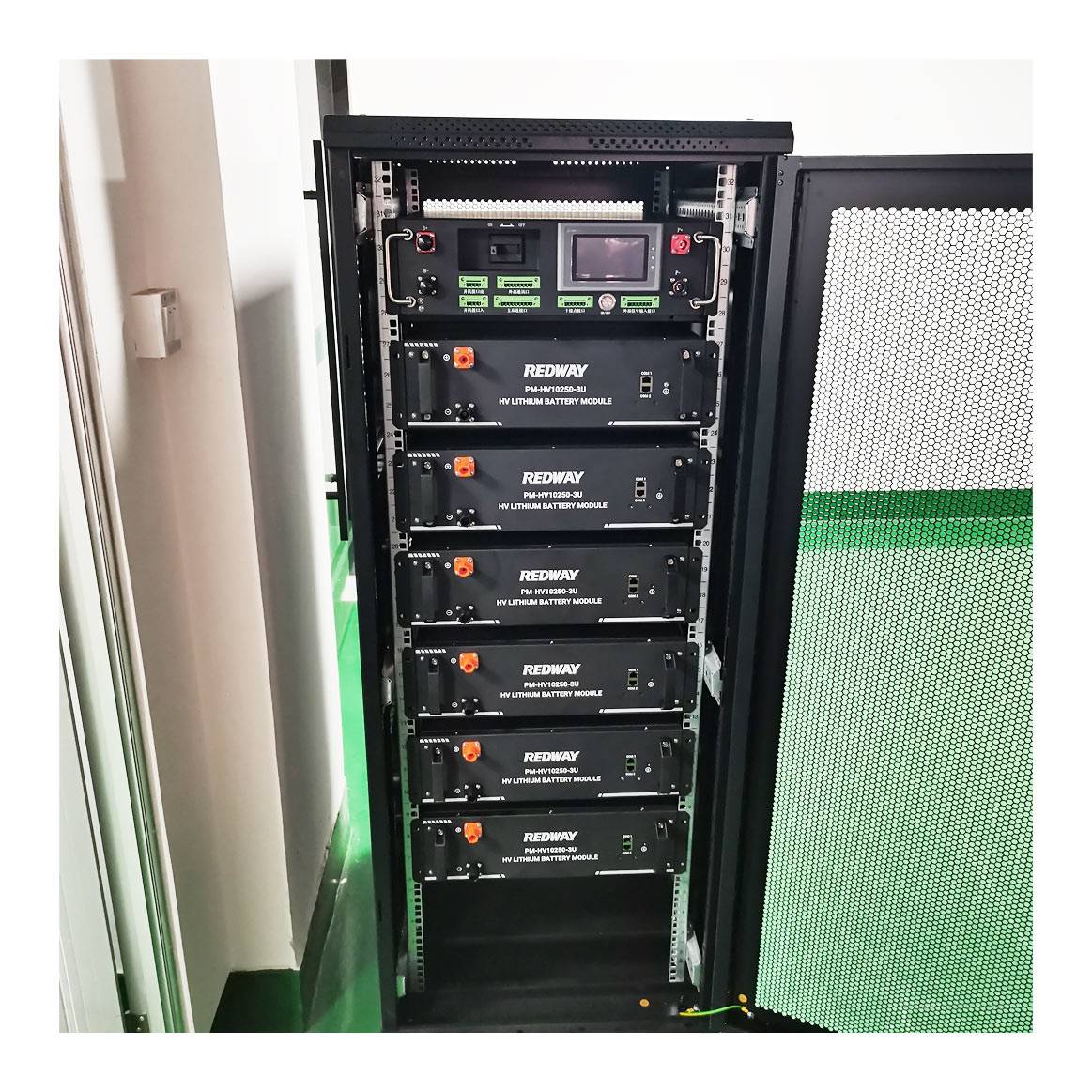

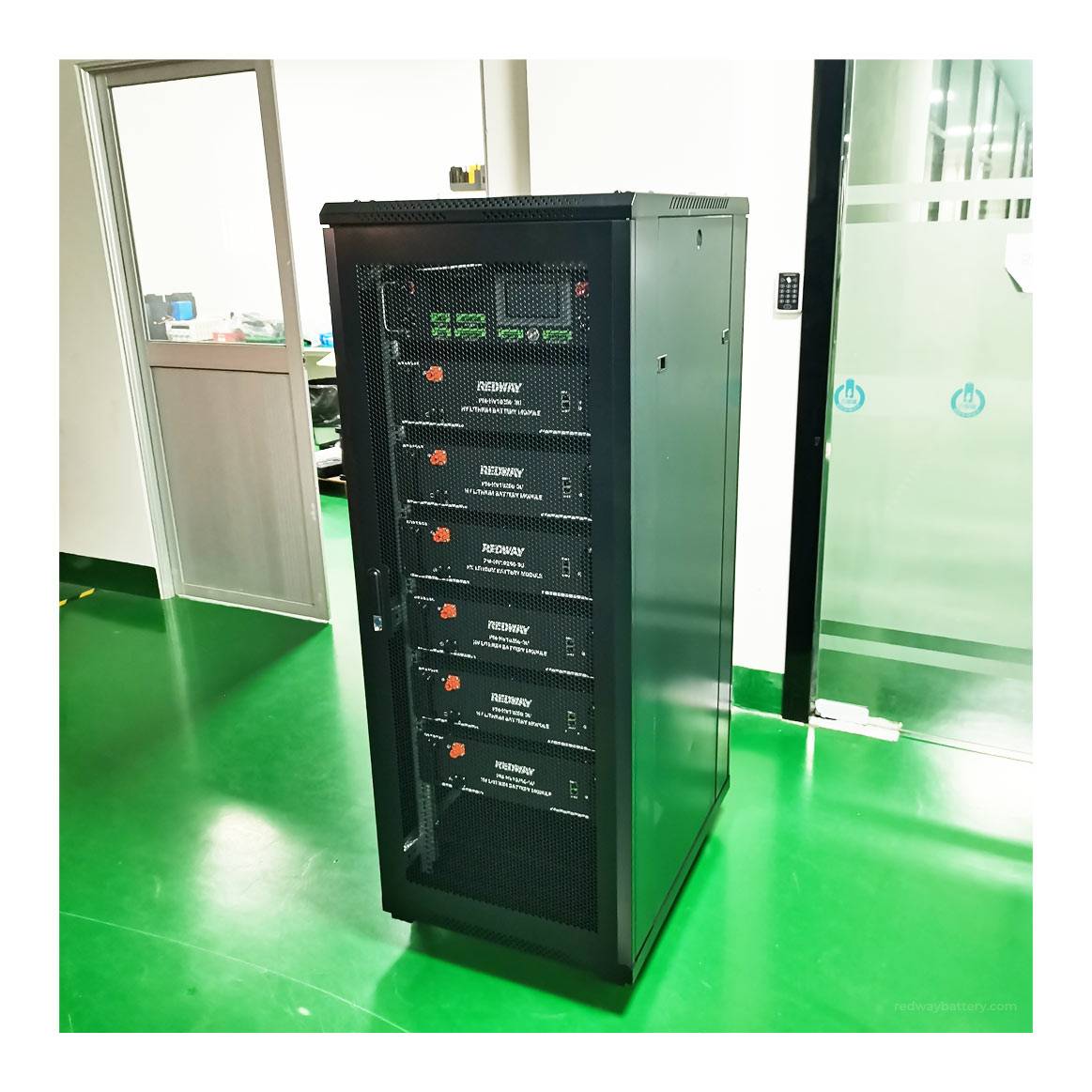

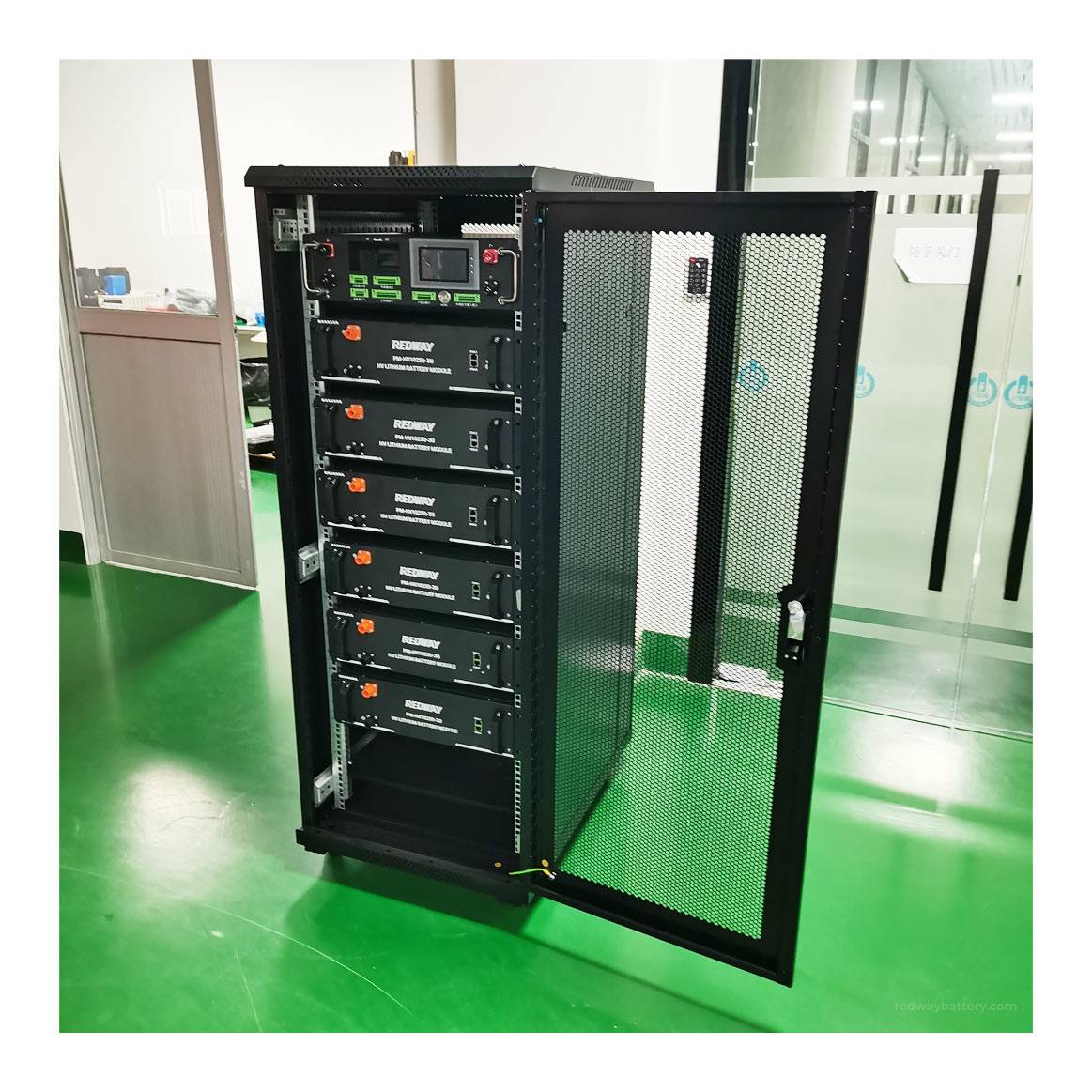

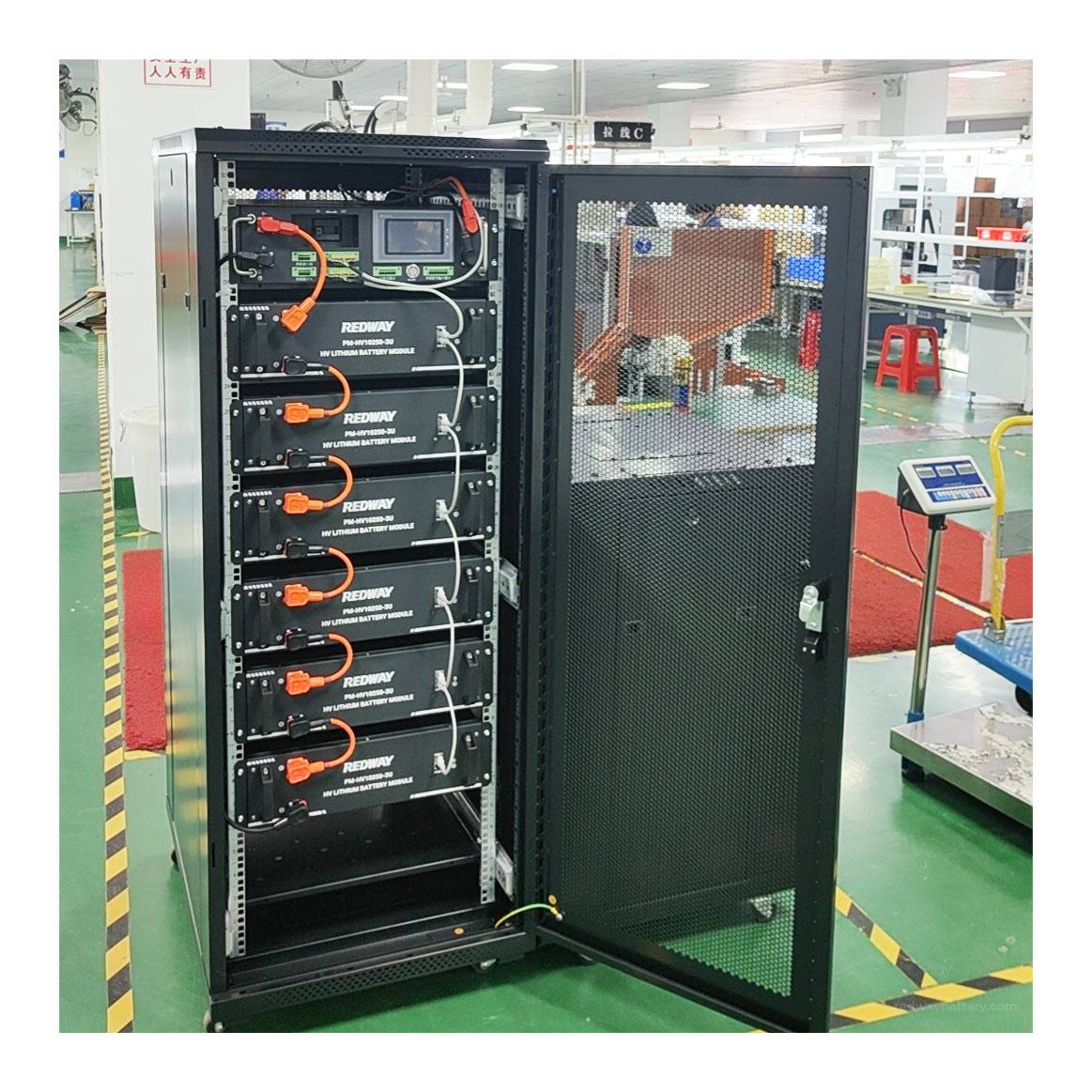

| Rack System | Specifications -> | |||
|---|---|---|---|---|
| Model | 3P | 4P | 5P | 6P |
| Number of Modules | 3 | 4 | 5 | 6 |
| Nominal Energy | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh |
| Nominal Voltage | 307.2V | 409.6V | 512V | 614.4V |
| Working Voltage | 240V ~ 350.4V | 320V ~ 467.2V | 400V ~ 584V | 480V ~ 700.8V |
| Charging / Discharge Current | 25A | 25A | 25A | 25A |
| Peak Discharging Current | 60A | 60A | 60A | 60A |
| Max. Power Output | 15kW | 20kW | 25kW | 30kW |
| Battery Module Model | PM-HV10250-3U | |||
| Battery Cell Type | LiFePO4 | |||
| Nominal Basic Data | 102.4V / 50A / 5.12kWh / 42kg (92.6 lb) | |||
| Module Working Voltage | 80V~116.8V | |||
| Max. Charge/Discharge Current | 50A | |||
| Working Temperature | -20°C~60°C | |||
| Ingress Protection | IP20 (More request) | |||
| Cycle Life (25°C@60%DOD) | <8000 cycles | |||
| Communication | CAN / RS485 / Ethernet | |||
| Compatible Inverters | Victron / SMA / Goodwe / Sol-Ark / Growatt / Sofar / SRNE / Voltronic / Deye / etc. | |||
| Warranty | 10 Years | |||
| Certifications | CE / UN38.3 | |||
