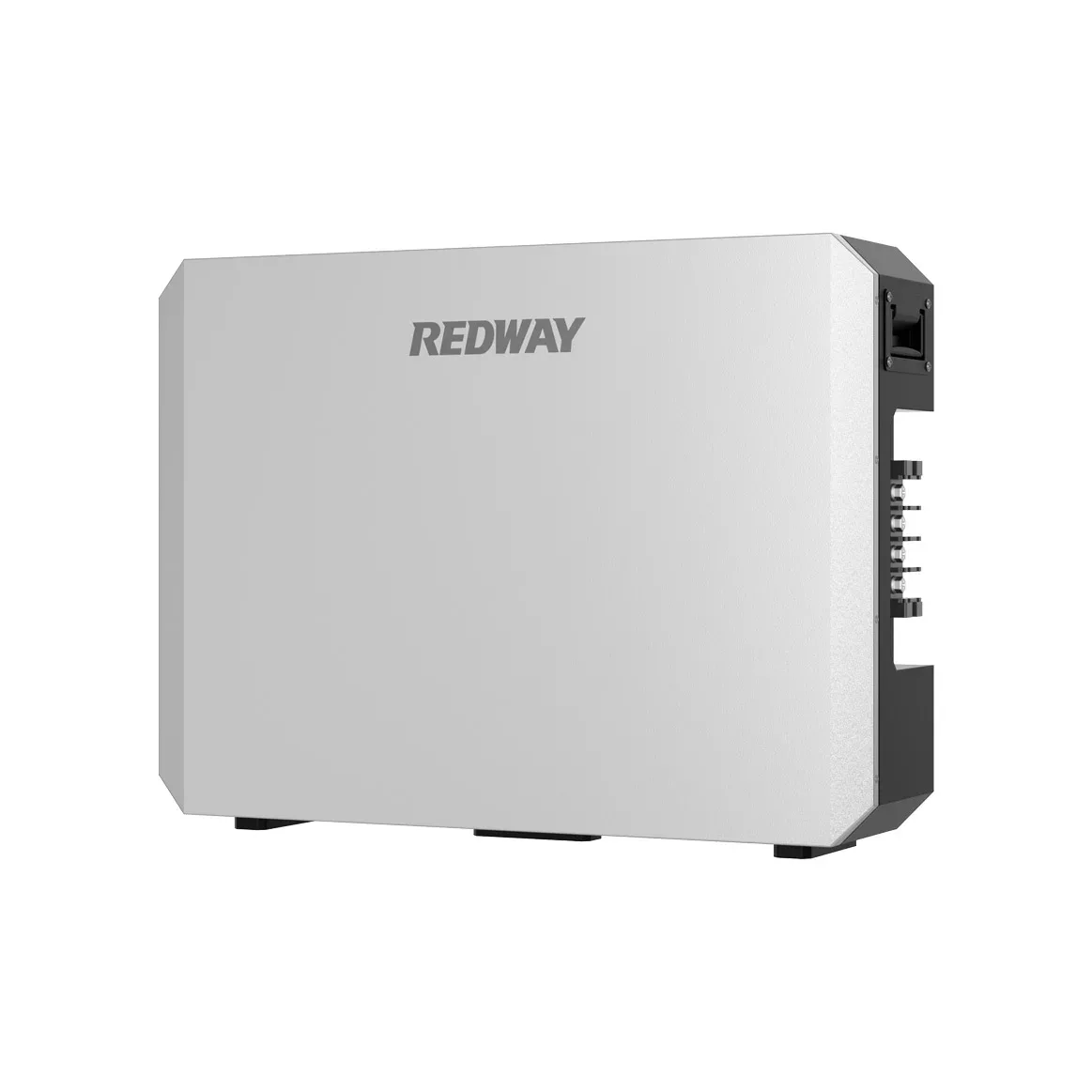

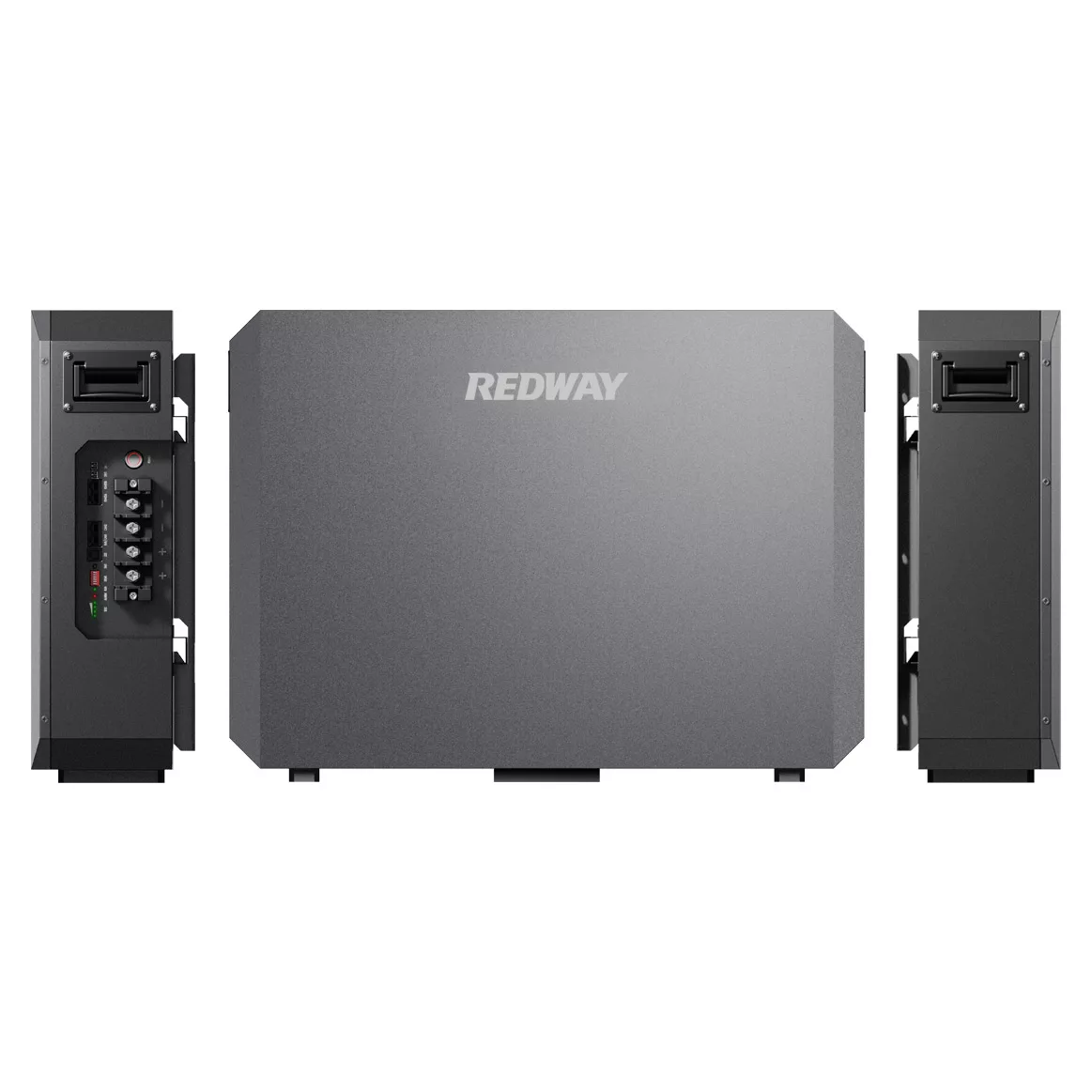

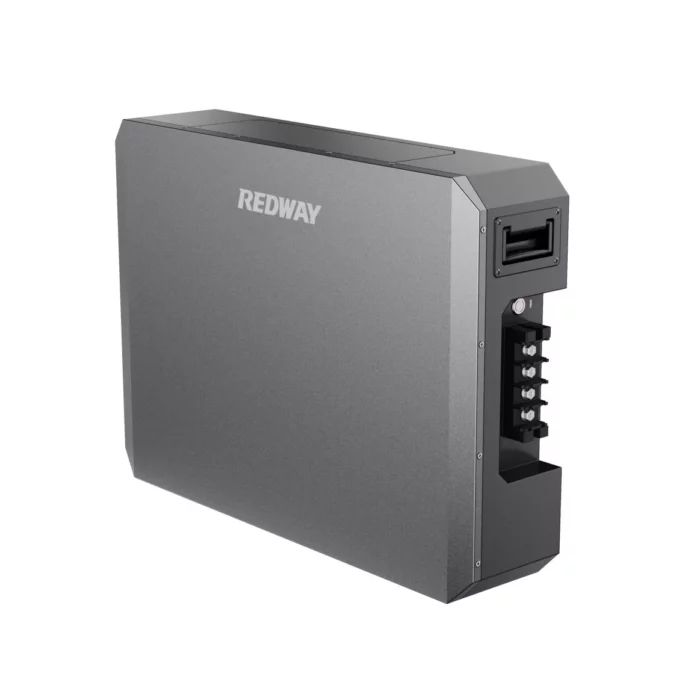

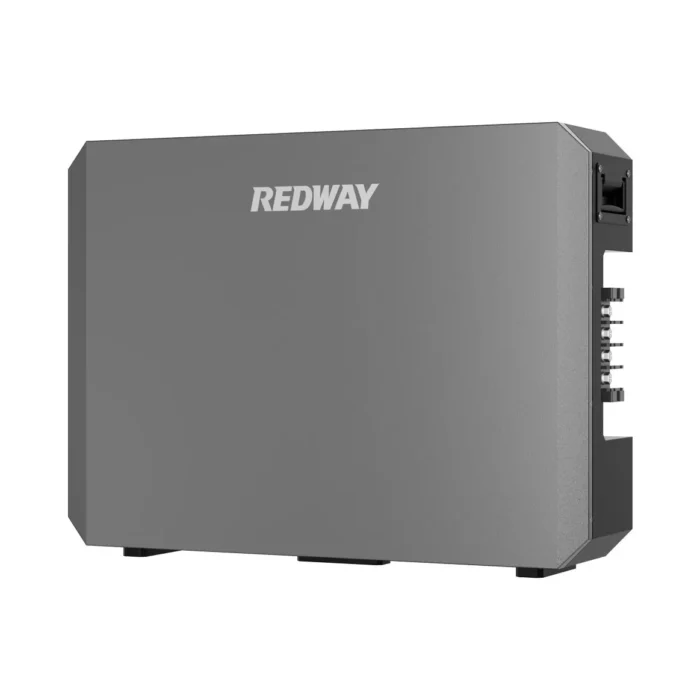

Redway Battery produces Home-ESS household wall-mounted power energy storage LiFePO4 batteries (Power Storage Wall Series), which use extremely safe EV grade LiFePO4 cells. We’re fully certified and can be customized and OEM. For inquiries, please Contact us.
PW51184-S | Specifications |
---|---|
Cell Type | LiFePO4 |
Nominal Voltage | 51.2V |
Battery Capacity | 184Ah |
Nominal Energy | 9.42kWh |
Dimension [L x W x H] | 535 x 720 x 176.8 mm 21.06 x 28.34 x 6.96 in |
Weight | 78kg 171.96 lb |
Working Voltage | 40V~58.4V |
Charge Voltage | 58.4V |
Discharge Cut-off Voltage | 40V |
Maximum Charge Current | 180A Continuous |
Maximum Discharge Current | 180A Continuous |
Fast Charging | Supports Fast Charging |
Charging Temperature | 0~55°C 32℉~131℉ |
Discharging Temperature | -20~60°C -4℉~140℉ |
Operating Humidity Range | <30% |
Series / Parallel Number | 16S1P |
Max. Parallel Connection | 16 |
Cycle Life (25°C / 77℉@60% DOD) | >8000 Cycles |
Cycle Life (25°C / 77℉@80% DOD) | >6000 Cycles |
Self-Discharge Rate | <3% per month |
IP Grade | IP21 / (More request) |
Battery Case | Steel |
Monitoring & Protection | Smart BMS: Overcharge / OverDischarge / Overcurrent / OverTemperature / ShortCircuit |
Communication | RS485 / CAN |
Optional Functions | Bluetooth / WiFi / Circuit Breaker / Heating / Active Balance / LCD Screen / LED Touch Screen / APP |
Accessories | Inverter Power Cable, Parallel Cable, Communication Cable, Grounding Wire |
Compatible Inverters | Victron / GOODWE / Solis / Growatt / SMA / SAJ / Luxpower / SRNE / Deye / Voltronic, etc. |
Color | White / Gray / Black |
Design Life | 20 Years |
Warranty | 10 Years |
User Manual | With the Battery Packaging |
Certification & Safety Standard | UL / FCC / CE / IEC / RoHS / UN38.3 / MSDS / (More request) |
